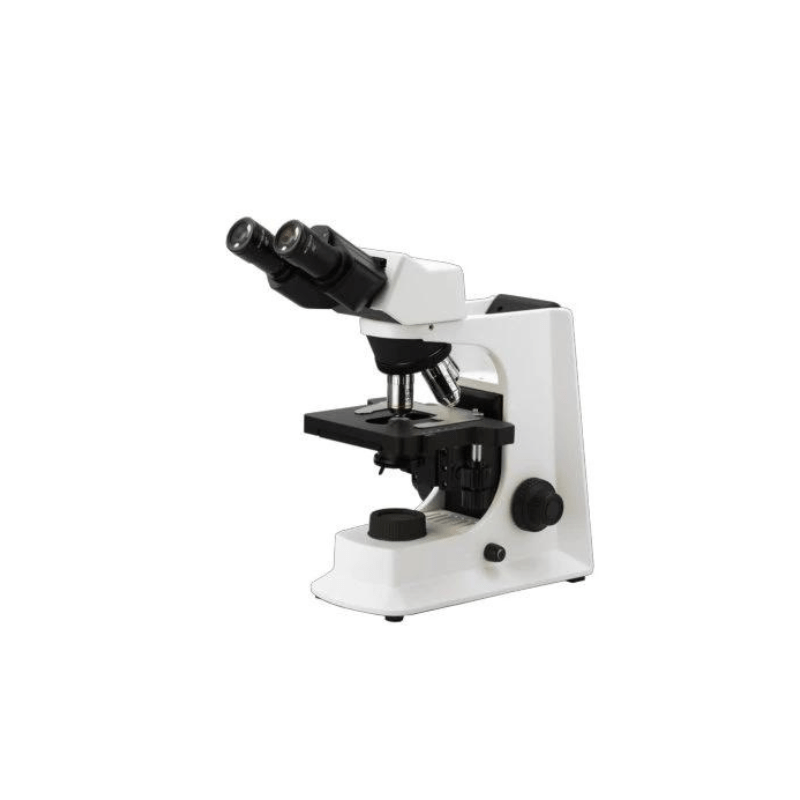

Laboratory Microscope Binocular

NM-12-2601-A

Vendor: SmartLabs

Suited For: Lab and Research

Country of Origin: China

1 Year Warranty
Out of stock
R 14,500.00
R 14,500.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

Binocular Laboratory Microscope

This Optical Compound Microscope is an Laboratory Microscope with full range of upgradable extensions. The Microscope is supplied with WF10X/20mm High Eyepoint eyepieces that magnify 10x, infinity E-Plan objective, double slide mechanical stage, coaxial coarse & fine focusing, abbe condenser N.A.1.25 with iris diaphragm, and 3W-LED illumination.

Available upgrades include Kohler Illumination, Dark Field Condenser, Polarizer and Analyzer Set, Phase Contrast or Fluorescence Unit Set.

  • Observation Method: Bright Field
  • Head: Seidentopf Trinocular Head, Inclined At 30 ° Interpupillary Distance 48-75mm
  • Eyepiece: WF10X/20mm (High Eyepoint)
  • Nosepiece: Quadruple, Backward
  • Achromatic Objective:
    • 4x/0.1, W.D.=18.6mm
    • 10x/0.25, W.D.=6.5mm
    • 40x/0.6(S), W.D.=0.47mm
    • 100x/1.25(S,O), W.D.=0.07mm
  • Total Magnification: 40x, 100x, 400x, 1000x (Oil)
  • Focusing: Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine
  • Focusing Travel Range: Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm
  • Working Stage: Mechanical Stage Size: 145 mm × 140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder
  • Condenser: Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder
  • Illumination: 3W-LED Illumination Systems

Downloads

  • Download Product Data sheet

Specifications

Optics
Observation: Bright field
Head: Seidentopf, inclined 30°, interpupillary distance 48-75 mm
Eyepieces: WF10x/20 mm, high eyepoint
Nosepiece: Quadruple, backward facing
Objectives: 4x/0.1 (W.D. 18.6 mm), 10x/0.25 (W.D. 6.5 mm), 40x/0.6 spring (W.D. 0.47 mm), 100x/1.25 spring, oil (W.D. 0.07 mm)
Total magnification: 40x, 100x, 400x, 1000x (oil)
Stage and focus
Stage: Mechanical, 145 x 140 mm, travel 76 x 52 mm, 0.1 mm scale, double slide holder
Focus: Coaxial coarse (26 mm travel) and fine (2 µm)
Condenser: Abbe N.A. 1.25, iris diaphragm, rack and pinion, filter holder
Light
Illumination: 3 W LED
Upgrades available
Kohler illumination, dark field condenser, polariser and analyser set, phase contrast, fluorescence

Common Uses

University and TVET introductory Life Sciences/Biology laboratory benches
Agricultural college and allied-health foundation labs

Frequently Asked Questions

What makes this a laboratory microscope rather than a school one?

High-eyepoint WF10x/20 mm eyepieces, a Seidentopf head, 3 W LED light and a large 145 x 140 mm mechanical stage with a 0.1 mm scale. It suits daily use in university, TVET and college labs.

Can it be upgraded later?

Yes. Kohler illumination, a dark field condenser, a polariser and analyser set, phase contrast and fluorescence units can all be added.

What are the working distances of the objectives?

18.6 mm at 4x, 6.5 mm at 10x, 0.47 mm at 40x and 0.07 mm at 100x oil. The 40x and 100x objectives are spring loaded to protect your slides.
