Wire. Bare. Nichrome

SKU
Original price R 175.00 - Original price R 175.00
Original price
R 175.00
R 175.00 - R 175.00
Current price R 175.00

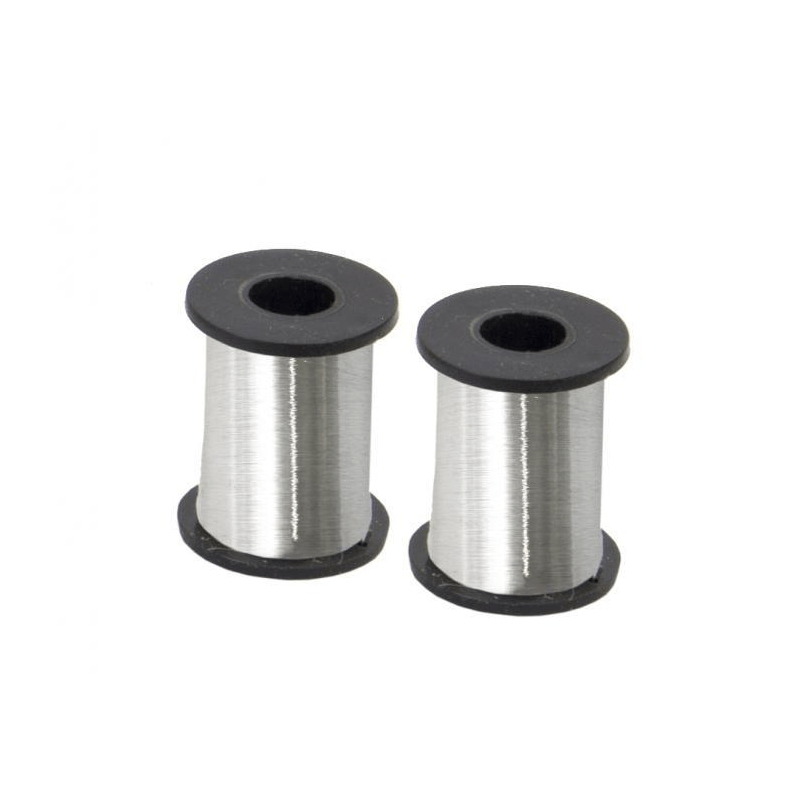

Nichrome Bare Wire

Bare Nicrome Wire available in variouse diameters. The thickness of a wire is often given as a Standard Wire Gauge, or SWG. Nichrome is a non-magnetic alloy of nickel and chromium. Nichrome is widely used in heating elements. It is wound in wire coils to a certain electrical resistance, and current passed through to produce heat. It's makeup is 0.5% Ni, 15% Cr, 4% Al, Balance Fe. Maximum operating temperature is 1150°C.

Experiments can be conducted to show the difference between the copper and nichrome wires of the same SWG.

Various SWG bare wire is often used in electricity experiments to show the effect of the diameter of the wire on the resistance in the circuit. The most basic explanation on why wire gauge matters is because the thinner a wire is (higher gauge) the more resistance there will be to the flow of current. More resistance means more energy loss, which means weaker/less reliable detections.

  • Single-core cable shape
  • Nickel-chrome alloy conductor material
  • Maximum operating temperature of +1150°C
Code Description Dia Inch Diameter mm Ft Per Reel M Per Reel g Per Reel
PH1064A Nichrome Wire-Bare 18 Swg  0,048 1,2192 50 15,2 125
PH1064B Nichrome Wire-Bare 20 Swg  0,036 0,9144 90 27,36 125
PH1064C Nichrome Wire-Bare 22 Swg  0,028 0,7112 150 45,6 125
PH1064D Nichrome Wire-Bare 24 Swg  0,022 0,5588 250 76 125
PH1064E Nichrome Wire-Bare 26 Swg  0,018 0,4572 350 106,4 125
PH1064F Nichrome Wire-Bare 28 Swg  0,0148 0,37592 525 159,6 125
PH1064G Nichrome Wire-Bare 30 Swg  0,0124 0,31496 750 228 125
PH1064H Nichrome Wire-Bare 32 Swg  0,0108 0,27432 1000 304 125
