Trinocular Microscopes

Most trinocular ports use a c-mount thread and send either 50/50 or 20/80 of the light between the eyepieces and camera. A higher share to the camera path gives a brighter live feed, useful in low-light fluorescence or dim-field work.

If you already own a microscope camera, check its mount matches the microscope's camera port, either c-mount for CCD-style cameras or the eyepiece diameter for eyepiece-style cameras, before ordering.

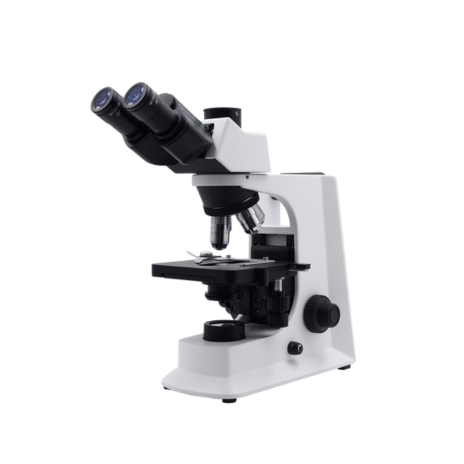

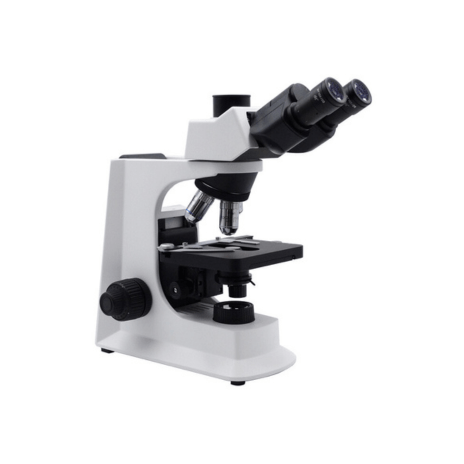

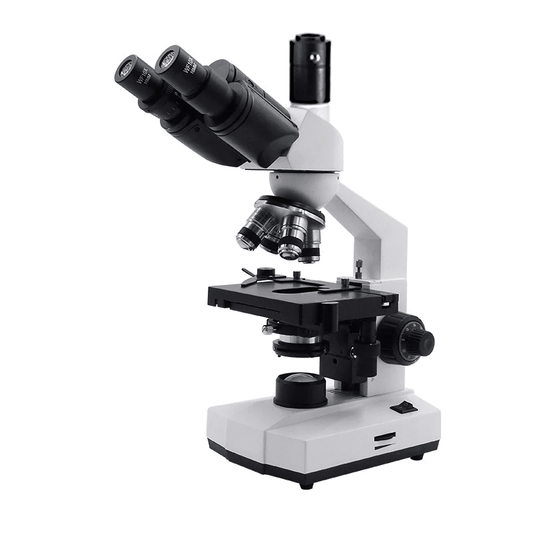

Most trinocular models cover 40x to 1000x with a standard objective turret. Confirm an oil-immersion 100x objective is included if bacteria or fine cellular detail form part of your documentation work.

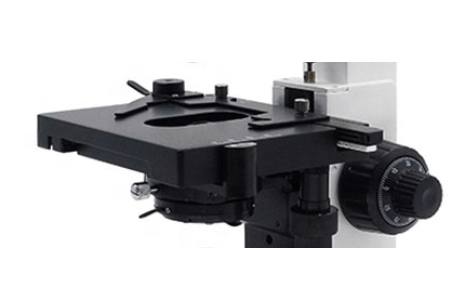

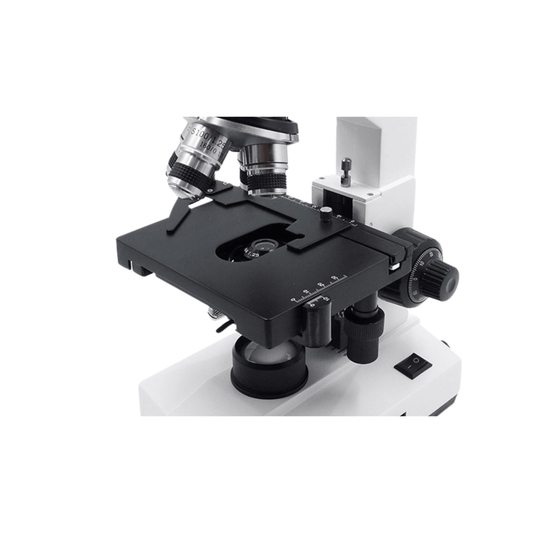

A mechanical stage with x and y control knobs makes it far easier to reposition a slide precisely for a photograph, since even small movements shift the framed image significantly at high magnification.

A trinocular microscope body typically costs more than an equivalent binocular model because of the extra optical path, and the camera itself is usually sold separately based on resolution. Browse this collection to compare current pricing across bodies and camera-ready bundles.

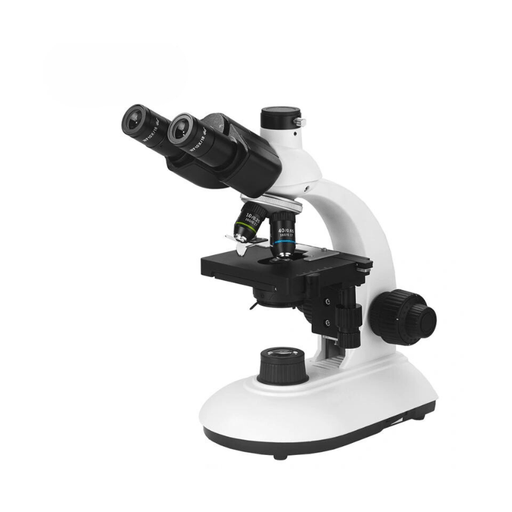

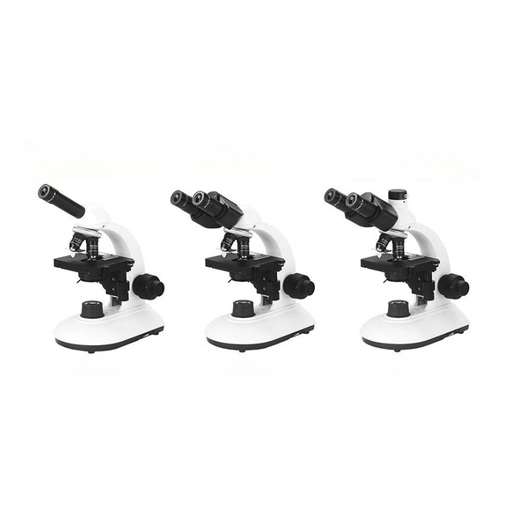

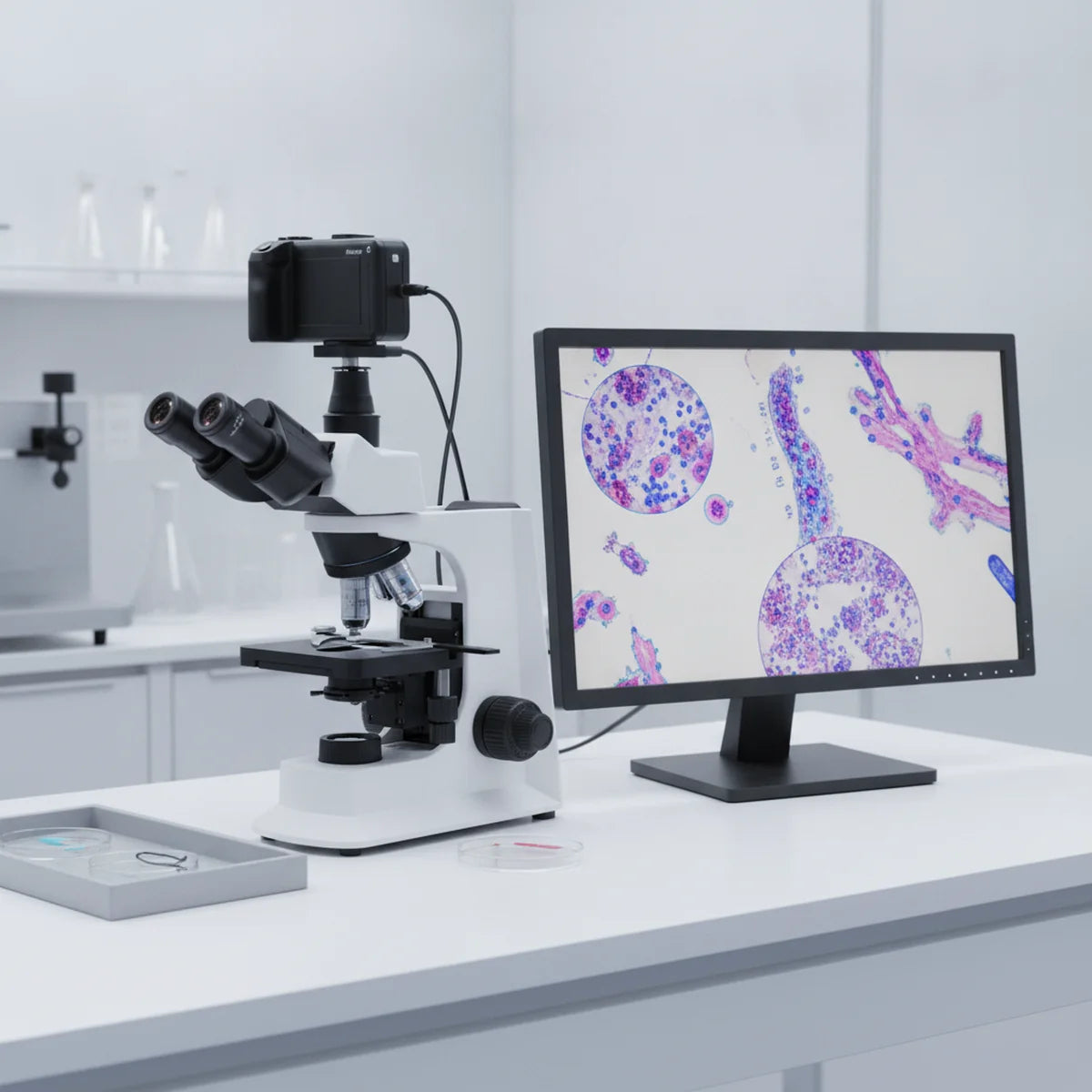

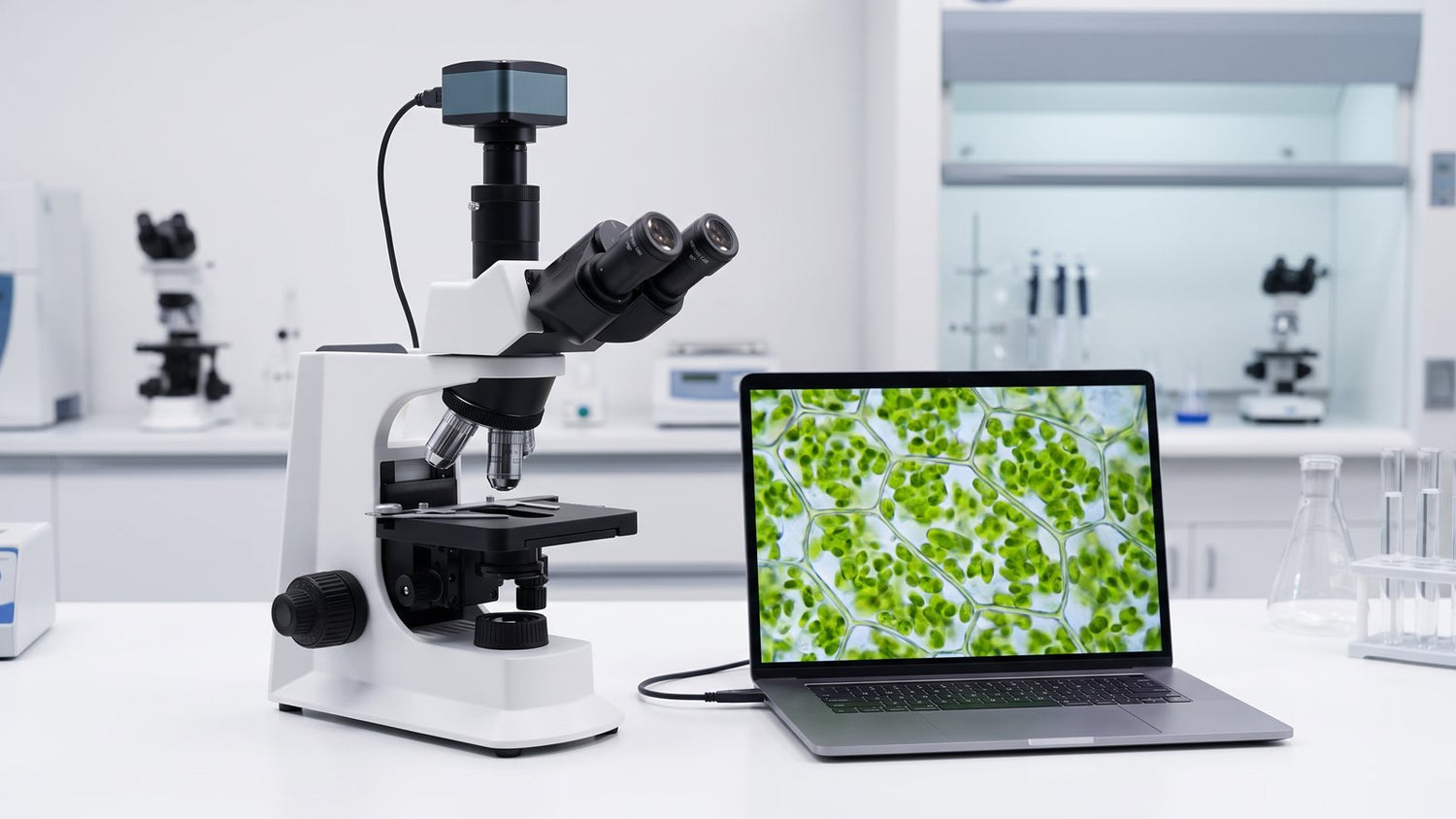

A binocular microscope has two eyepieces for direct viewing only. A trinocular microscope adds a third vertical port that sends light to a camera, so you can capture or project the image while still looking through the eyepieces at the same time.

Some trinocular microscopes ship as a body only, with the camera port ready for a camera to be added later, while others come bundled with a matched digital eyepiece camera. Check the product listing for what is included before ordering.

Yes, that is the main advantage of a trinocular head. The third port is a fully separate optical path, so the camera and both eyepieces can be used at the same time without one interrupting the other.

For classroom projection or basic photo records, a 2 to 5 megapixel camera is generally sufficient. For published research, print-quality documentation, or fine detail inspection work, a higher resolution camera of 10 megapixels or more is worth the extra cost.
