Microscope 1000x Magnification with Mechanical Stage

NM-F6A

Vendor: SmartLabs

Country of Origin: China

1 Year Warranty
Low stock! Only 1 left
R 6,300.00
R 6,300.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

Microscope 1000x Magnification with Mechanical Stage

This double layer microscope uses a halogen lamp for illumination. The microscope is fitted with four achromatic objectives 4x, 10x, 40x and 100x (oil) allowing for magnification of up to 1000x. The fine adjustment focusing value is 0.002mm of a focus range of 30mm and is fitted with a N.A.1.25 Abbe Condenser with iris diaphragm and filter.

Available in Monocular,  Binocular or Trinocular

Specification

  • Monocular 45° Inclined, Rotatable 360° or Binocular 30° Inclined or Trinocular 30° Inclined
  • Total Magnification: 40x, 100x, 400x, 1000, (oil)
  • Eyepiece: Wide field WF10x
  • Achromatic objectives: 4x, 10x, 40x, 100x
  • Double layers mechanical stage
  • Stage Size: 110mm x 126mm
  • Stage moving range: 90mm x 30mm
  • Condenser: N.A.1.25 Abbe Condenser with iris diaphragm and filter
  • Coaxial coarse and fine focusing adjustments, Fine focusing scale value 0.002mm, Focusing range 30mm
  • Halogen bulb 6V/220W AC 220V

Downloads

Specifications

Head options

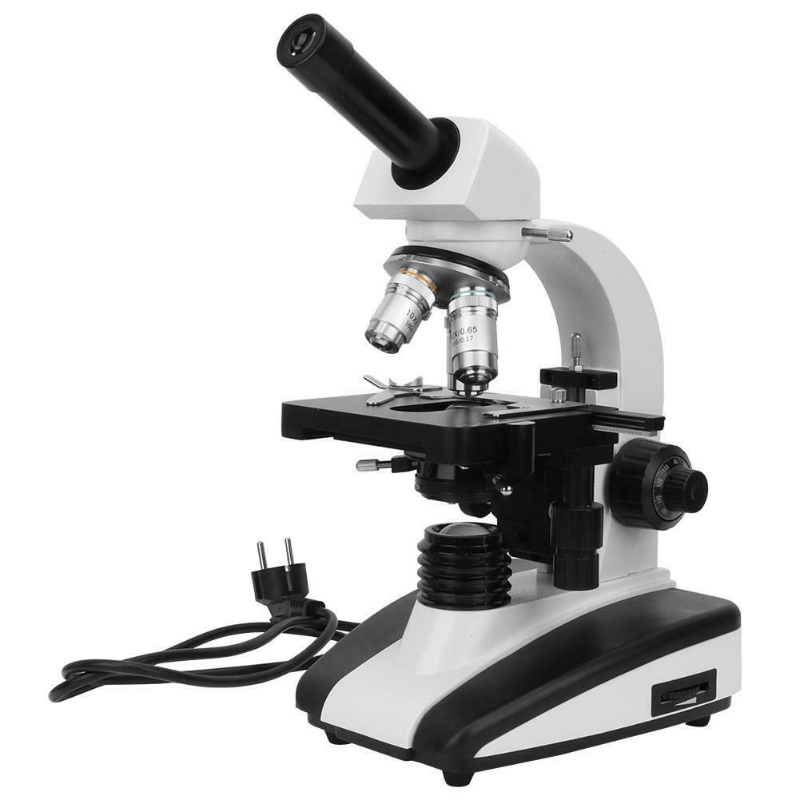

Monocular, 45° inclined, rotates 360°

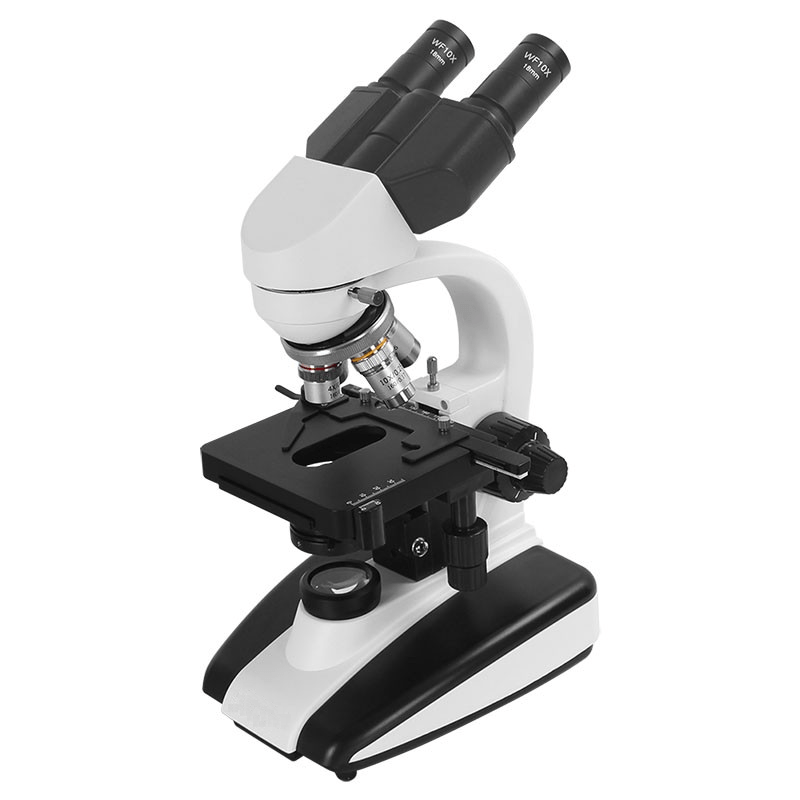

Binocular, 30° inclined

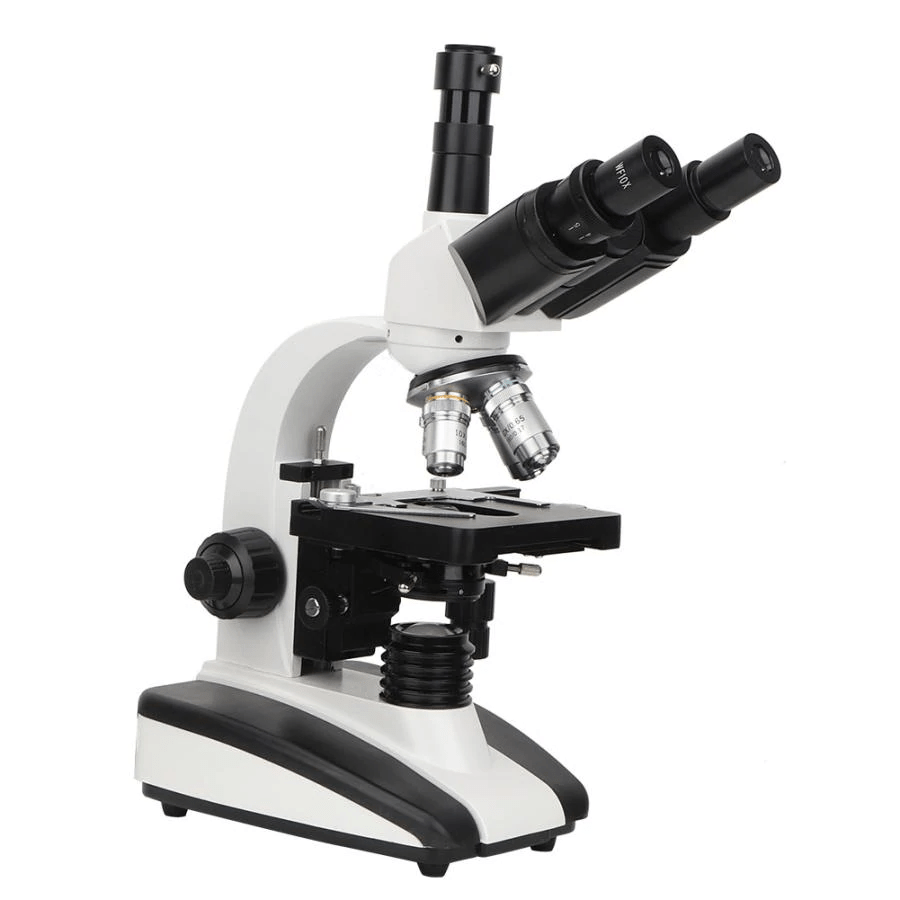

Trinocular, 30° inclined
Optics
Eyepiece: Wide field WF10x
Objectives: Achromatic 4x, 10x, 40x, 100x (oil)
Total magnification: 40x, 100x, 400x, 1000x (oil)
Condenser: Abbe N.A. 1.25 with iris diaphragm and filter
Stage and focus
Stage: Double-layer mechanical, 110 x 126 mm, travel 90 x 30 mm
Focus: Coaxial coarse and fine, fine scale 0.002 mm, 30 mm range
Power
Light: 6 V halogen bulb
Power: 220 V AC mains

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
Trinocular variant suits teacher demonstration via camera

Frequently Asked Questions

Which head should I choose?

Monocular for a single user on a budget, binocular for comfort over long sessions, trinocular if you want to add a camera. Pick the head from the dropdown, the rest of the microscope is the same.

How fine is the focus?

The fine adjustment moves in 0.002 mm steps over a 30 mm range, which is what you need to hold focus at 1000x.

How far does the stage travel?

90 mm across and 30 mm front to back, so you can work systematically across a whole slide.
