Microscope Eyepieces

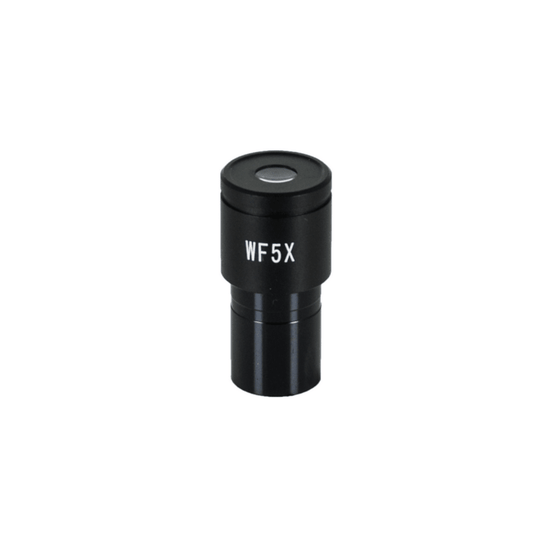

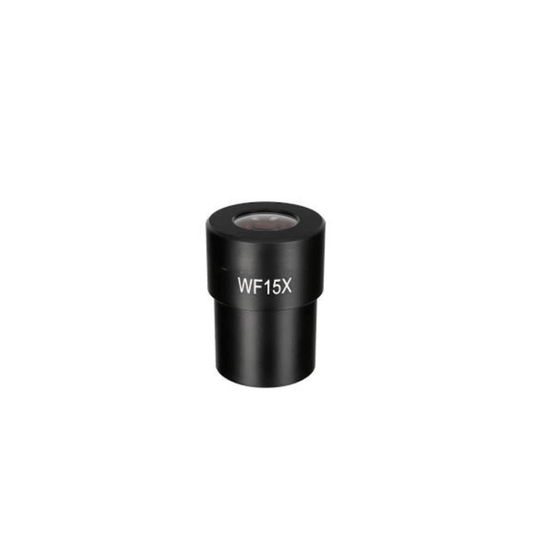

An eyepiece, also called an ocular lens, is what you look through on a microscope. Ours are widefield oculars in the standard 23.2mm barrel diameter, in magnifications from 5x up to 25x, plus a micrometer eyepiece with a built-in graduated scale for taking measurements.

A worn, scratched, or fogged eyepiece is a cheap fix that restores image clarity without replacing the whole microscope, and having a spare on hand means one damaged eyepiece doesn't take an instrument out of use.

A hand fitting an eyepiece into a microscope head

What is a microscope eyepiece?

The eyepiece, or ocular lens, sits at the top of the microscope and magnifies the image the objective lens has already formed, the two working together to produce the final magnification you see. Widefield (WF) eyepieces give a wider view of the specimen, which is what most lab and classroom microscopes use day to day.

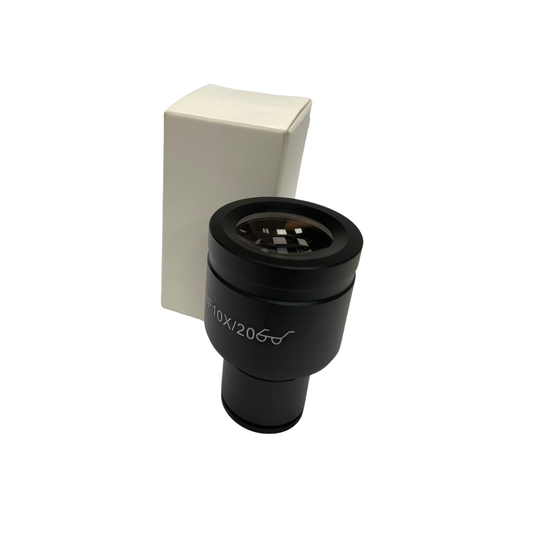

A micrometer eyepiece adds a fixed, graduated scale over that view, letting you measure a specimen's size directly rather than estimating it by eye.

Common uses of microscope eyepieces

What each type of eyepiece is actually for.

  • A stained tissue specimen seen through a microscope eyepiece

    Everyday Viewing

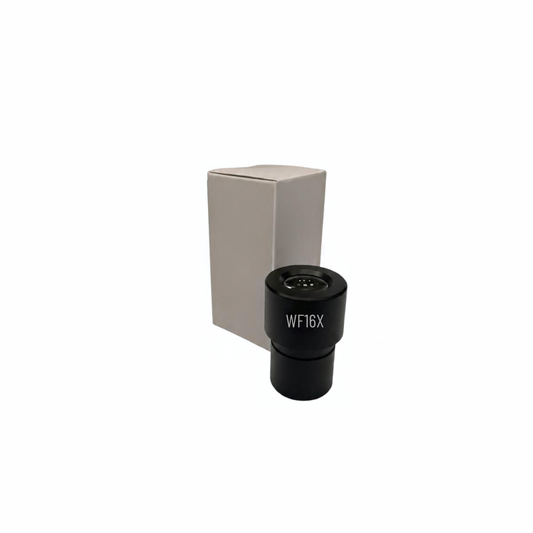

    A widefield eyepiece in 10x or 16x is the standard fit for routine practicals, giving a wide, comfortable view of the specimen at typical classroom magnifications.

  • A microscope eyepiece lens standing beside a graticule slide

    Taking Measurements

    The micrometer eyepiece's built-in scale, once calibrated against a stage micrometer, lets you read a specimen's size directly instead of estimating it.

  • A gloved hand fitting an eyepiece into a microscope head

    Replacing Damaged Eyepieces

    A scratched or fogged eyepiece is a cheap, fast swap, and it's worth keeping a spare so one damaged lens never puts a whole microscope out of action.

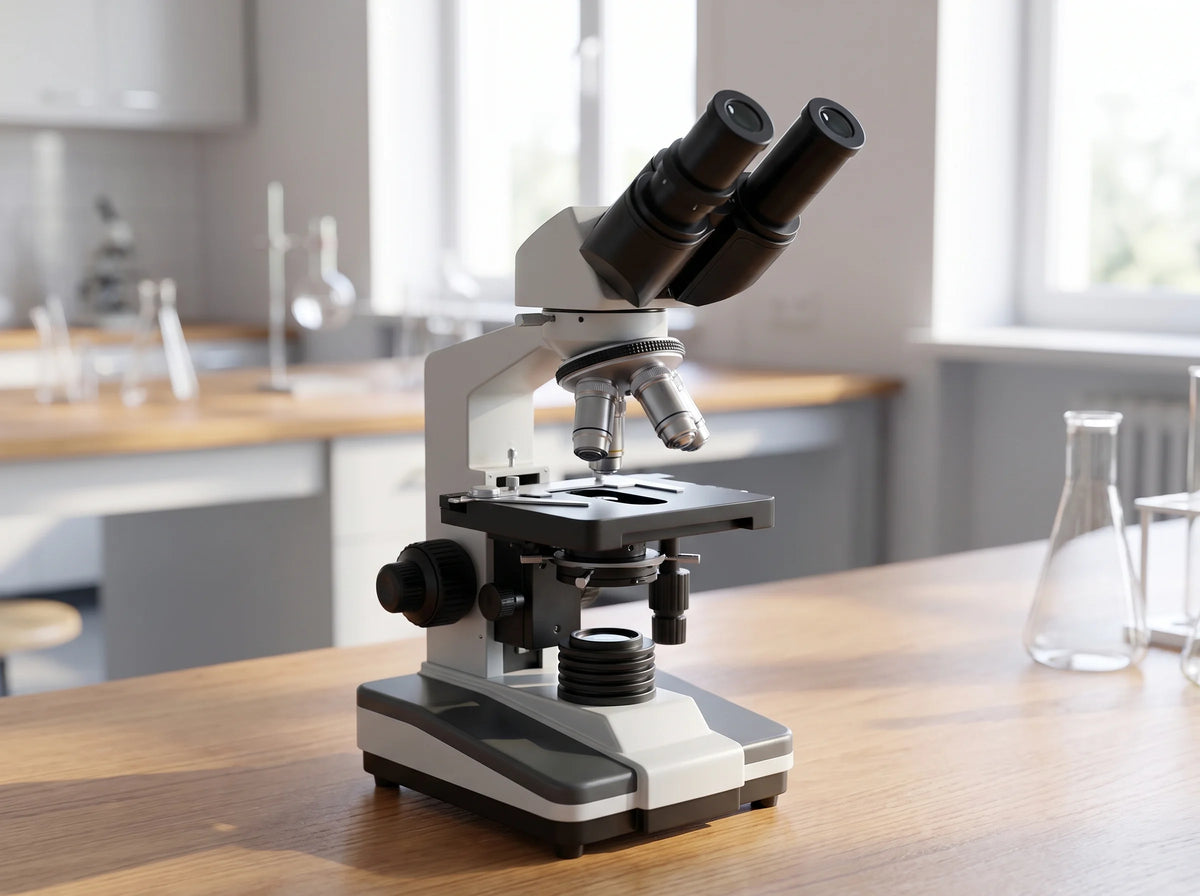

  • A binocular compound microscope on a wooden laboratory bench

    Higher Magnification Work

    A 20x or 25x eyepiece pushes total magnification higher when the objective alone isn't enough, useful for finer detail on prepared slides.
