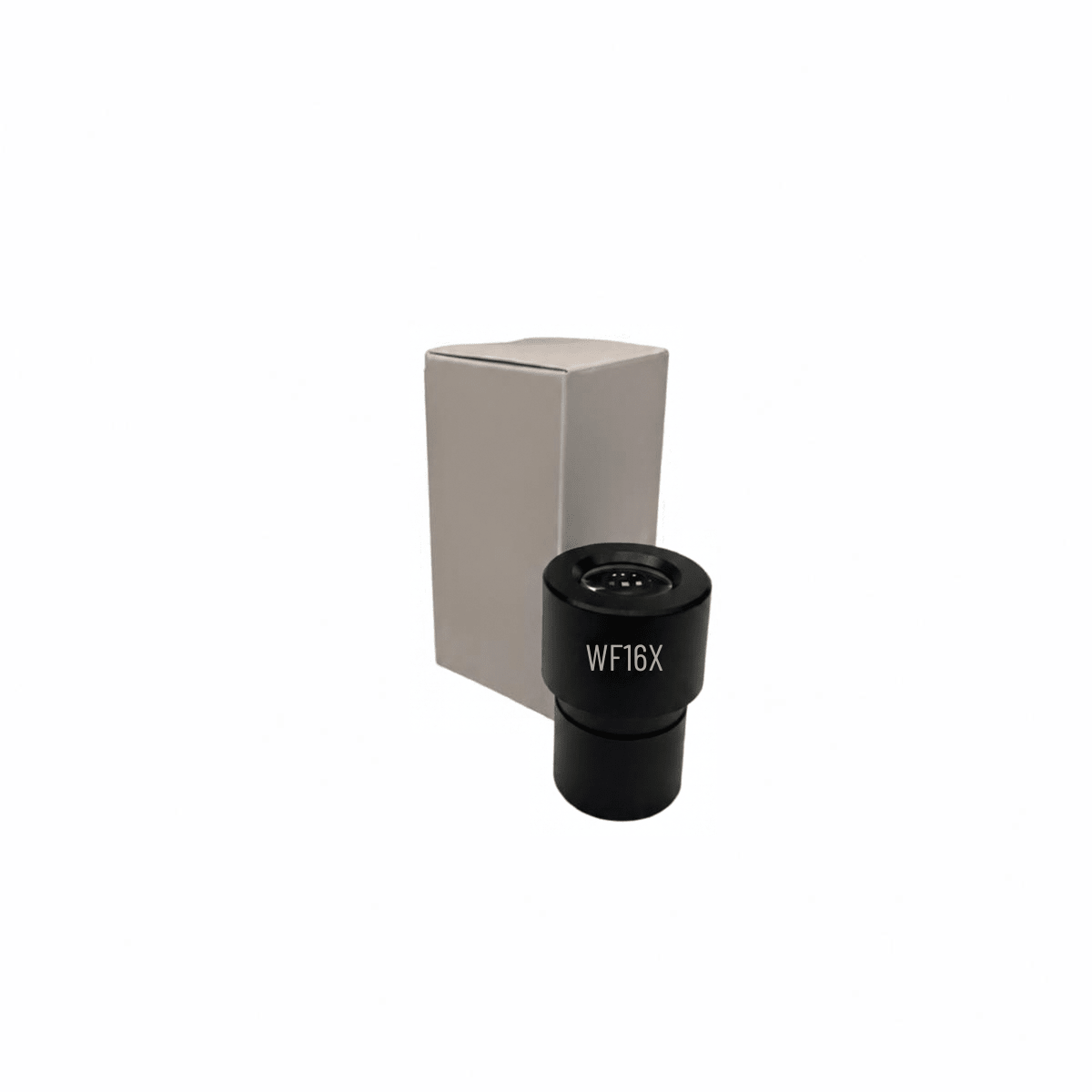

Retical Eyepiece (With Micrometer) WF16x/13mm, Micrometer ,1 DIV=0.1mm, 0.1mm x 100=10mm

WF-2605-1613

Vendor: SmartLabs

Low stock! Only 5 left
R 1,000.00
R 1,000.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

Enhance your microscope's measurement accuracy with this premium WF16x Reticle Eyepiece featuring an integrated linear micrometer scale. Designed for precise specimen analysis, this widefield eyepiece provides 16x magnification with a 13mm field of view, making it ideal for laboratory, educational, and industrial inspection applications.

Specifications

  • Type: Widefield (WF) Reticle Eyepiece
  • Magnification: 16x
  • Field of View (FOV): 13 mm
  • Mounting Diameter (Barrel Size): 23.2 mm (Standard size for most compound microscopes)

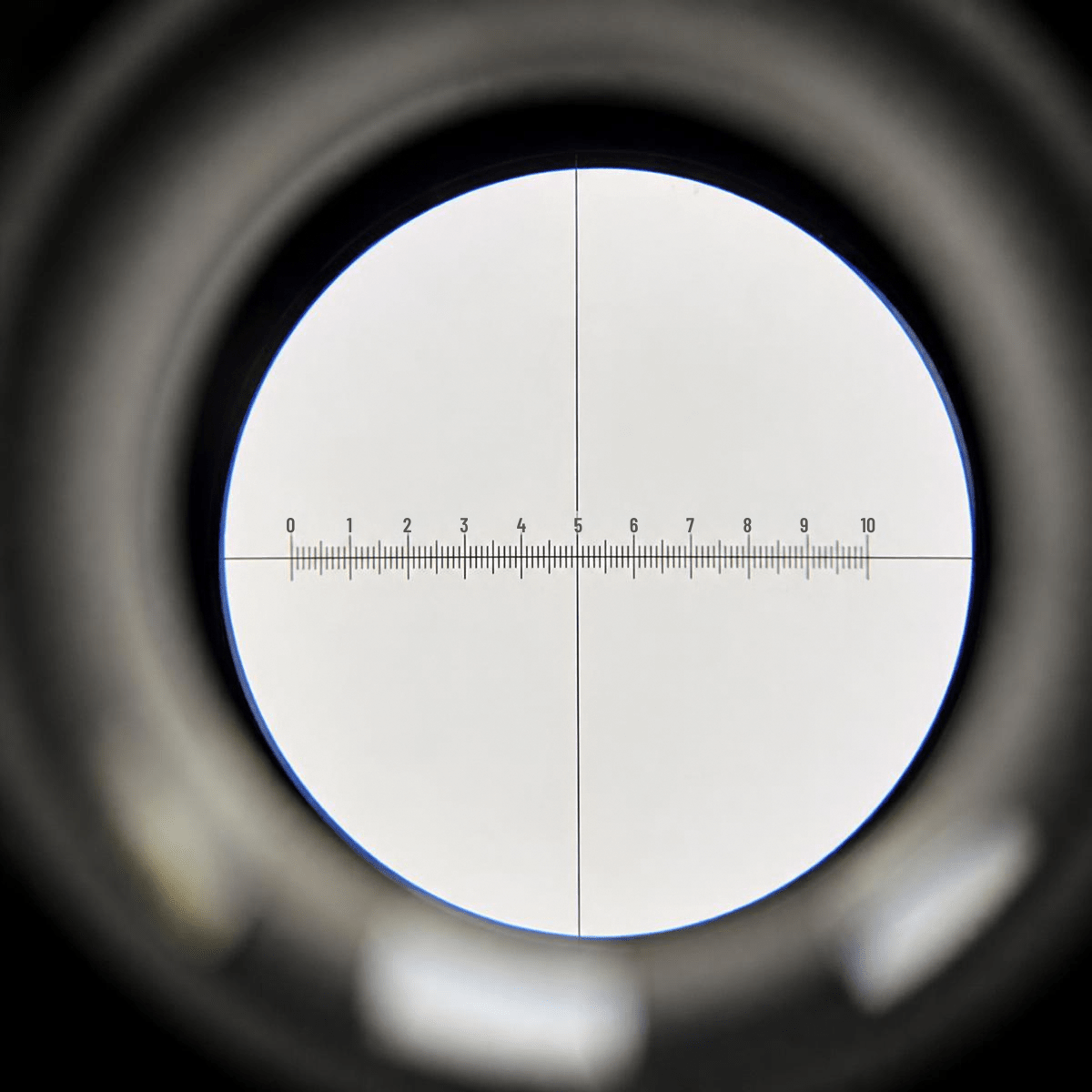

  • Reticle Type: Integrated Linear Micrometer Scale
  • Total Scale Length: 10 mm
  • Reticle Divisions: 100 total divisions
  • Division Value (1 DIV): 0.1 mm
  • Product of China

Features

  • Accurate Micro-Measurements: The built-in reticle scale allows for direct measurement of specimens when properly calibrated with a stage micrometer.
  • Widefield Optics: High-quality glass elements provide clear, sharp images across a 13mm viewing field with minimal distortion.
  • Universal Compatibility: Features a standard 23.2mm barrel diameter, making it compatible with a wide range of biological and compound microscopes.
