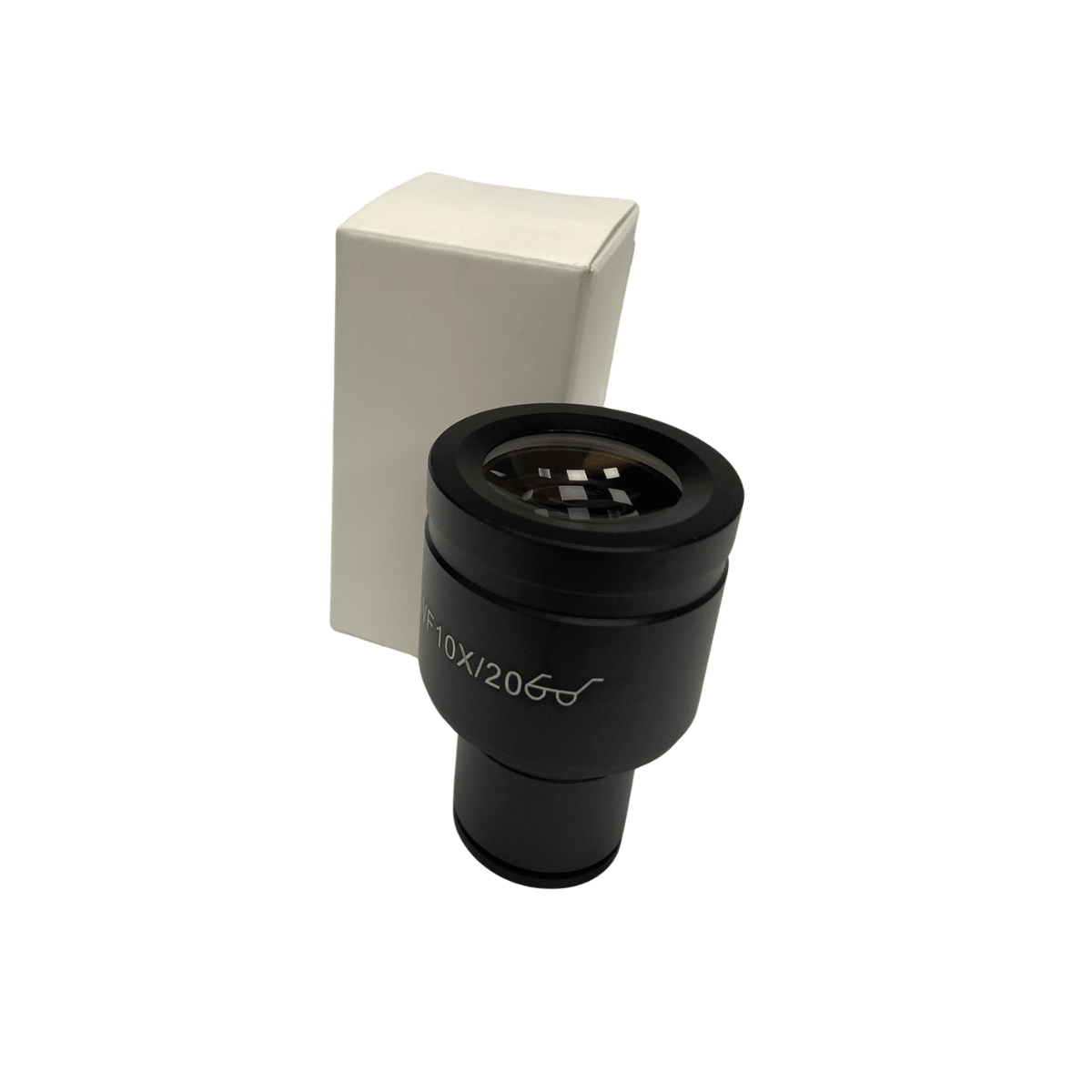

Retical Eyepiece (With Micrometer) WF10x/20mm, Micrometer X-0.1mm*180 Div / Y-Single Line

Achieve precise dual-axis alignment and measurement with this professional WF10x Reticle Eyepiece featuring an integrated X-axis micrometer and Y-axis center line. Engineered for clinical, industrial, and research applications, this widefield eyepiece combines a high-eyepoint 10x magnification with an expansive 20mm field of view for comfortable, high-accuracy specimen analysis.

Specifications

• Type: Widefield (WF) High-Eyepoint Reticle Eyepiece
• Magnification: 10x
• Field of View (FOV): 20 mm
• Mounting Diameter (Barrel Size): 30.0 mm / 30.5 mm (Standard size for most stereo and advanced laboratory microscopes)

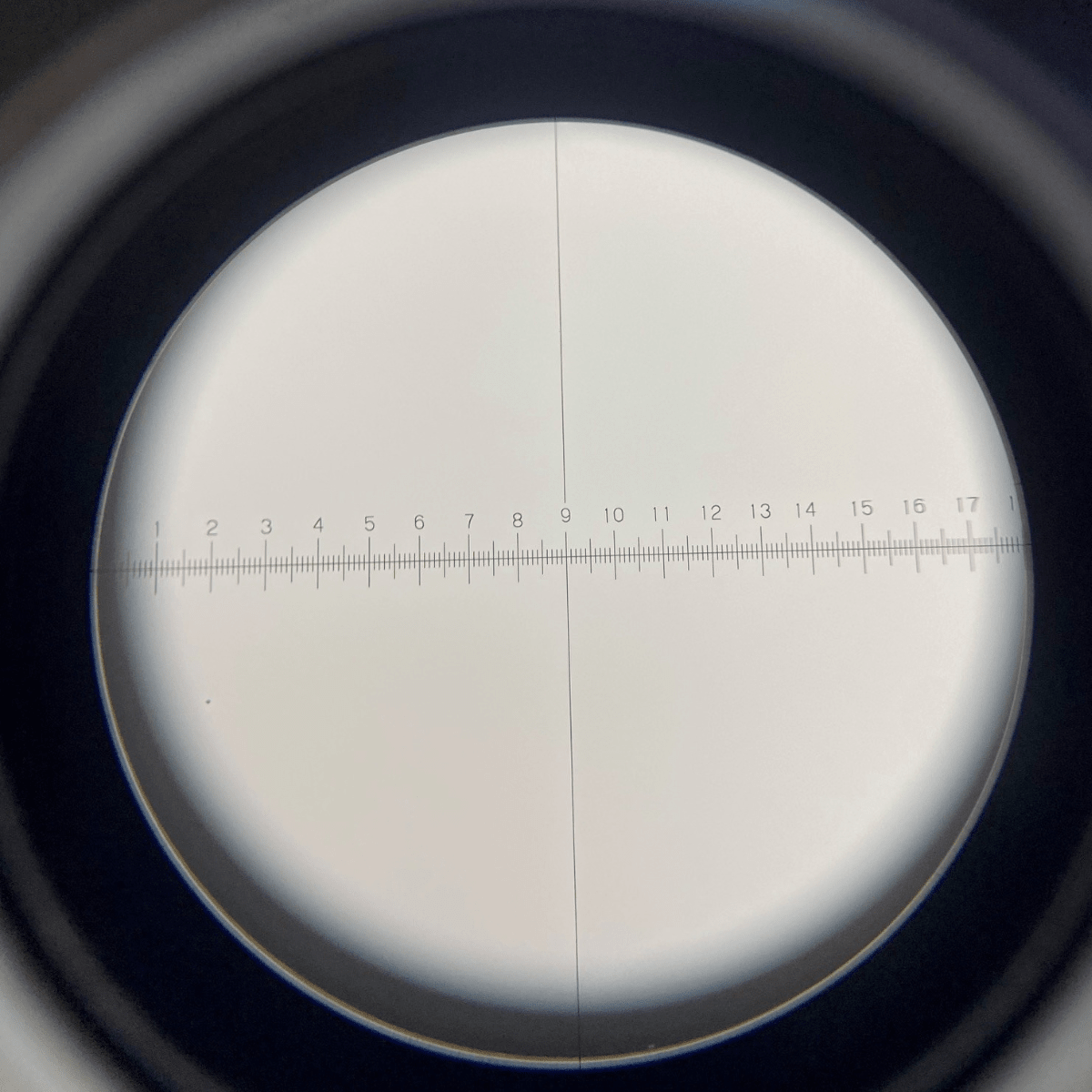

• Reticle Configuration: X-Axis Linear Scale with Y-Axis Single Reference Line
• Total X-Axis Scale Length: 18 mm
• X-Axis Divisions: 180 total divisions
• Division Value (1 DIV): 0.1 mm
• Product of China

Features

• Dual-Axis Crosshair Layout: Features a highly accurate 180-division horizontal (X) measuring scale intersected by a sharp, vertical (Y) reference line for perfect crosshair targeting and sectioning.
• Super Widefield Viewing: The generous 20mm field of view allows you to see more of your sample at once, reducing eye strain during prolonged inspection sessions.
• Multi-Application Versatility: Perfect for counting cells, measuring component tolerances, grain sizing, and checking particle distribution under a calibrated microscope system.
