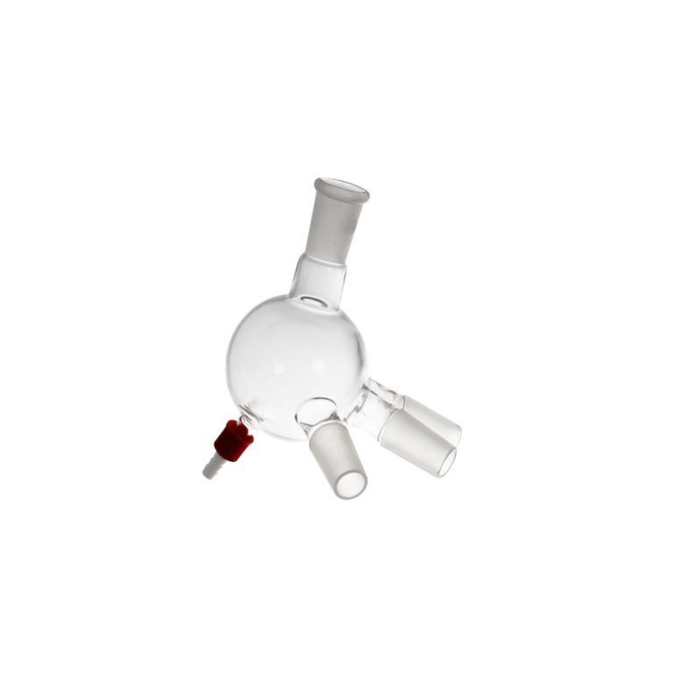

Cow Adapter with Vacuum, Round Bottom - B24

Short path triple neck cow receiver is a distilling recovering adapter with ground glass joints and hose connection for high-performance, efficient short path distillation and advanced compound separation.

The 3-way distillation receiver, used with short path distillation head in a vacuum distillation apparatus, allows for collection of up to three fractions without disturbing the distilling process. With 3 receivers 40° apart to contribute the distillate into 3 receiving flasks.105° angle between top outer joint and lower inner joints. ground glass joints.

Borosilicate Glass: The cold trap is made from borosilicate glass (such as Pyrex), a type of glass known for its chemical resistance, thermal stability, and durability. Borosilicate glass can withstand high temperatures and is resistant to a wide range of chemicals, making it ideal for laboratory environments.

Transparent: Glass allows for easy visual monitoring of the contents inside the cold trap. This is useful for observing the condensation process or checking for any blockages or overflow

Shape: Round cow adapter with a single ground glass joints inlet and three ground glass joints ports for collection flasks.

Inlet Joints: The inlet joint is a B24 ground glass joints (24/29) allowing for the cow adapter to be connected to the end of the condenser.

Outlet Ports: The adapter outlet ports are ground glass joints (24/29 or 29/32) that connect the cow adapter to the three collection flasks. The collection flasks can be disconnected in order to decant the content.

Vacuum: The cow adapter has a 10mm olive tubulation socket that allows for the vacuum to the connected to the back of the cow adapter using vacuum tubing.

Specifications:

• Condenser Joint: Flask Joint: 24/29 (see option selected)
• Flask Joint: 3 x 24/29 (see option selected)
• Vacuum Tube: 10mm I.D.
• Vacuum Connector: 10mm I.D. Olive
• Shape: Triple neck Round Bottom with Olive Vacuum Socket
• Volume: 250mL
• Glass: 3.3 Borosilicate Glass
