• Enamelled Copper Wire

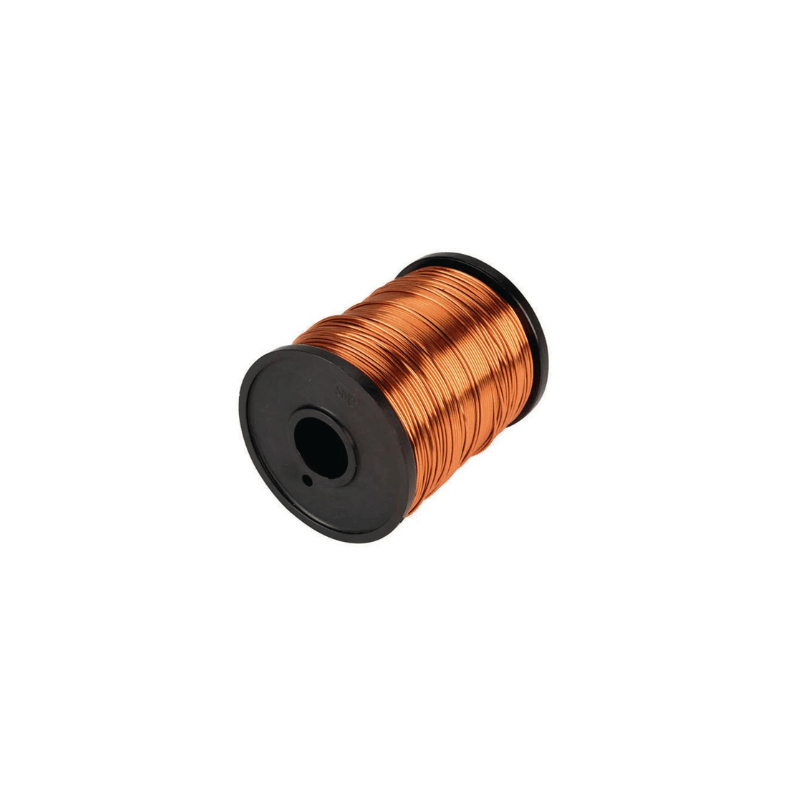

Enamelled Copper Wire

PH2058EA

Vendor: SmartLabs

Low stock! Only 2 left
R 325.00
R 325.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
  • 5 stars: 0 (0%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 1 (100%)
J
Jan Kent

I am extremely disappointed in the wire, because it is to be used to wind 4 stator coils for a project.. But this wire is hard drawn and makes it practically impossible to hand wind , let alone do tight windings, hardly possible. And the second problem is that There are no way to determine the length of the wire as this is critical information for me. I will have to un roll it, stretch it out and measure the wire. The price itself was very good which was the deciding factor to buy it, but I am sorry I bought it, it was a total waste of money for me. And the 3rd disappointment was the extreme shipping cost, which is way over priced, the breakdown as follows:
Order totals
Item
Value
Subtotal
R 325,00
Shipping
R 143,00
Total
ZAR
R 468,00
Including R 61,04 in taxes
Therefore, as you can see, the shipping and taxes on top of the shipping above. There are many better priced couriers available such as Courier Guy, who would have done it at a fraction of this high price. I was not allowed to send my own courier. This is another FLAG. Why ?? Sorry Smart Labs, this was and still is an ongoing frustration for me.

Have a question about this product?

Send us a message and we'll get back to you.

Enamel Copper Wire

Enameled wire also known as Magnet wire is a copper wire coated with a thin insulation and is a principal component of transformers, inductors, motors, and other electrical devices. The enamel is typically a polymer film that provides a tough continuous layer of insulation. This thin layer of insulation makes it useful for building transformers, motors, inductors, hard disk actuators, speakers, electromagnets etc.

The main reason for using this coating or “enamel” is to prevent the wire from getting caught in accidental short circuits. This also explains why you should use this type of wiring for building transformers, inductors and electromagnets. The enamelled copper wire is also useful because it can be soldered easily.

**Approximate length in meter.

Code Description Diameter mm Ft Per Reel M Per Reel g Per Reel
PH2058EA Enameled Copper Wire 14swg 2,00 50 15,2 250
PH2058EB Enameled Copper Wire 16swg 1,6 80 24,32 250
PH2058EC Enameled Copper Wire 18swg 1,2 85 25,84 250
PH2058ED Enameled Copper Wire 20swg 0,91 140 42,56 250
PH2058EE Enameled Copper Wire 22swg 0,71 225 68,4 250
PH2058EF Enameled Copper Wire 24swg 0,56 375 114 250
PH2058EG Enameled Copper Wire 26swg 0,46 550 167,2 250
PH2058EH Enameled Copper Wire 28swg 0,38 800 243,2 250
PH2058EI Enameled Copper Wire 30swg 0,32 1150 349,6 250
PH2058EJ Enameled Copper Wire 32swg 0,27 1500 456 250
