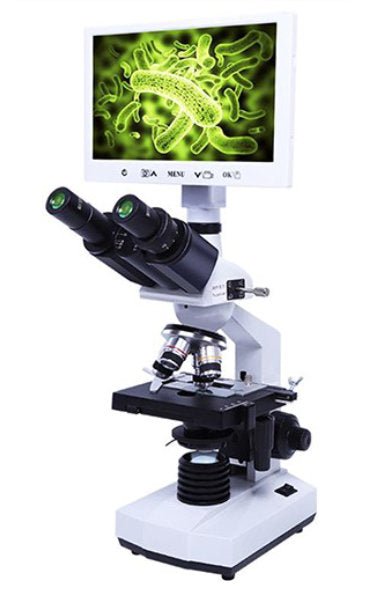

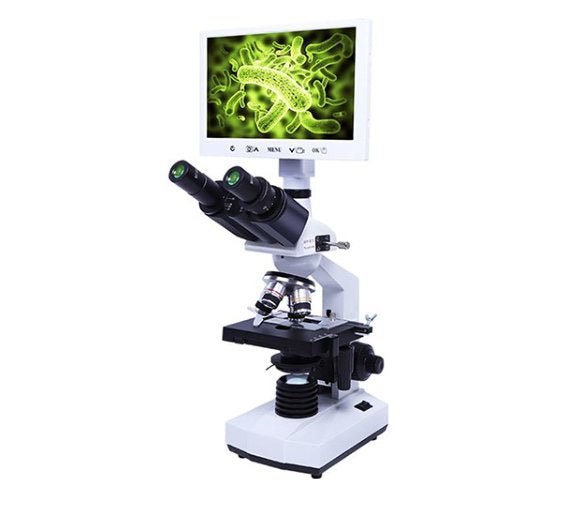

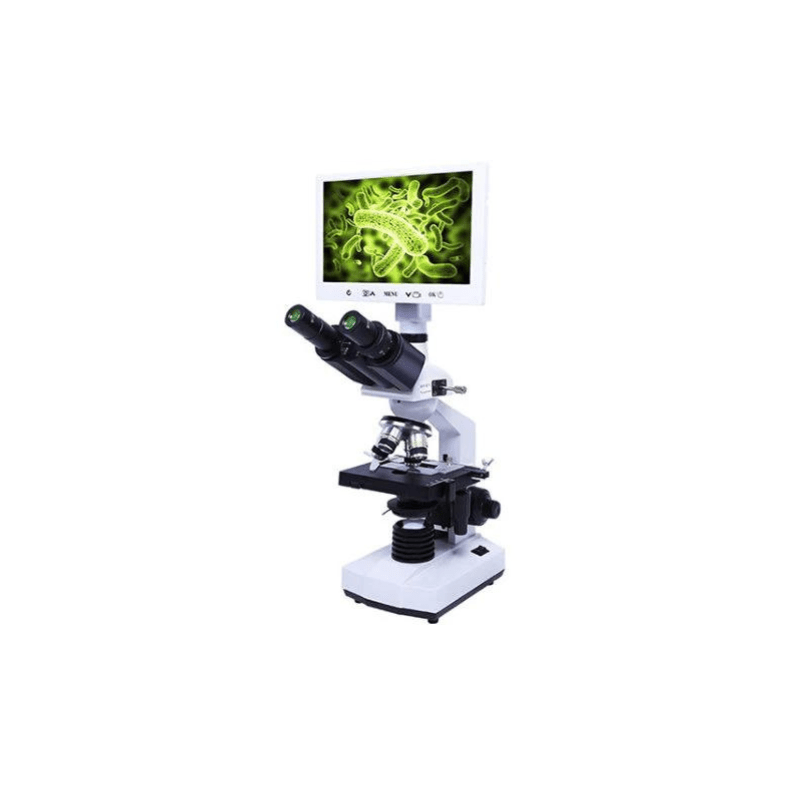

Digital LCD Binocular Microscope, 1000x

Digital LCD Binocular Microscope, 1000x

This general use microscope has a double layer mechanical stage with a Trinocular eyepiece head with a 7” LCD screen and uses a halogen lamp for illumination. The microscope is fitted with four achromatic objectives 4x, 10x, 40x and 100x (oil) that allows for user to magnify the specimen up to a total magnification of 1000x. The double layer stage allows for ease of movement and the microscope features a coaxial coarse and fine adjustment focusing range of 20mm. The phototube allows for the addition of a camera or digital screen.

Specification

• Head: Trinocular Head, 30°Inclined, 360°Rotatable
• LCD Camera: 7″ IPS LCD Screen Resolution 800×480
• Camera Sensor: 1/2.75″ CMOS
• Resolution: 2.0M 1920x1080p, 0.3x C-Mount
• Pixel Size: 2.8×2.8um
• Frame Rate: 30 fps
• Output: USB 2.0, Output to LCD, PC
• Storage: Micro SD Card Slot, Max 32G
• Eyepiece: WF10x
• Nosepiece: Quadruple Nosepiece,
• Objective: Achromatic 4x,10x,40x(s), 100x(s, oil)
• Total Magnification: 40x, 100x, 400x, 1000x
• Double layer mechanical stage, size: 115 x 125mm
• Coaxial coarse and fine adjustment, focusing range 20mm
• N.A 1.25 Abbe condenser & Iris diaphragm Filter
• 6V 20W Halogen Lamp
• AC Input 220V
• Physical Dimensions: 36cm (H) x 19cm (W)x 13.5cm (L)
