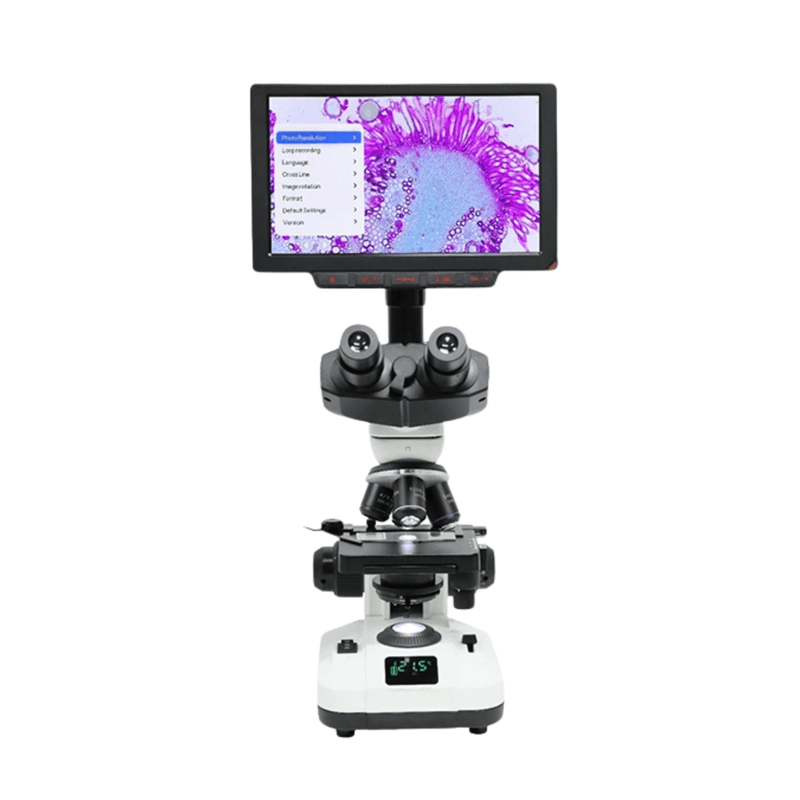

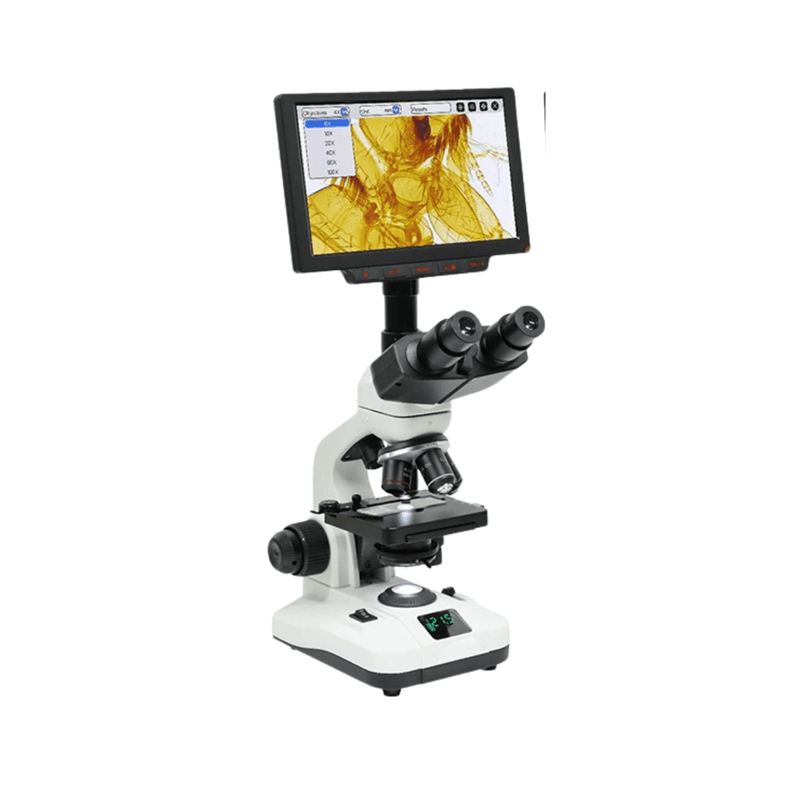

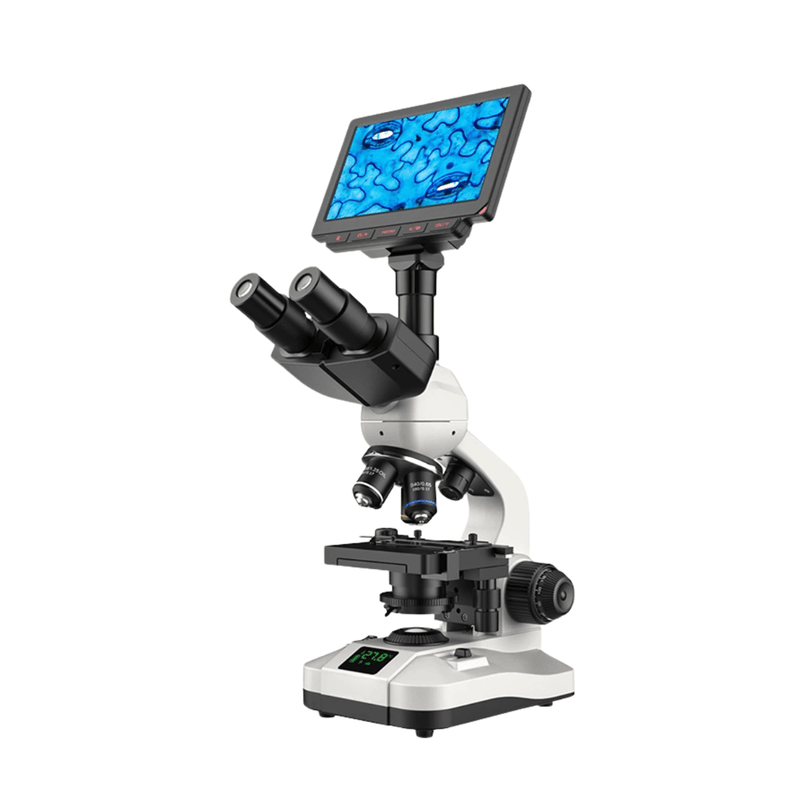

LCD Digital Microscope

The LCD Digital Microscope is a professional-grade biological imaging system engineered as an all-in-one standalone device that bridges traditional optical microscopy with cutting-edge digital workspace solutions. It is purpose-built to eliminate neck strain during extended lab hours by replacing standard eyepieces with an integrated high-definition display. Equipped with high-resolution capturing sensors, a robust connectivity suite, and industrial-grade optics, the LCD Digital Microscope provides an immersive, collaborative viewing experience tailored for modern scientific environments.

Specifications

The device combines a rugged full-metal structural frame with versatile data output channels:

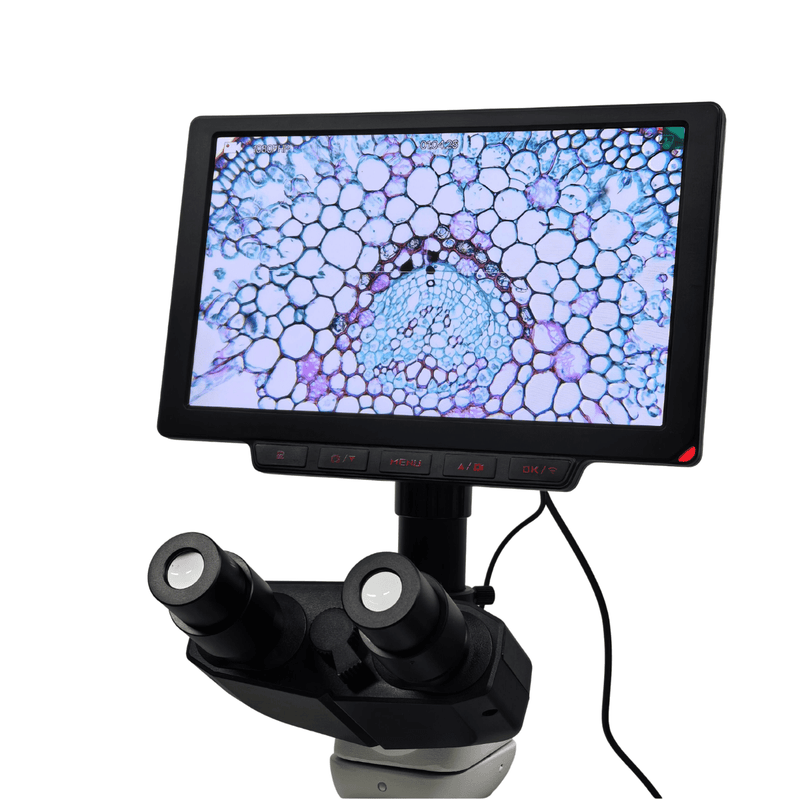

• Integrated Display: 9-inch digital LCD screen (1024x600 resolution).
• Camera Sensor: 2K (4.0 Megapixel) CMOS 1/3-inch sensor.
• Capture Resolution: Up to 12M pixels for photos; crystal-clear 1080p for video.
• Total Magnification: High-performance range spanning 105x to 2625x on-screen.
• Optical System: Achromatic 4x, 10x, 40x (Spring), and 100x (Oil, Spring) objectives.
• Nosepiece & Head: Quadruple nosepiece with a 360° rotatable trinocular head inclined at 30°.
• Focusing: Coaxial coarse and fine adjustment knobs with a microscopic fine division of 0.008 mm.

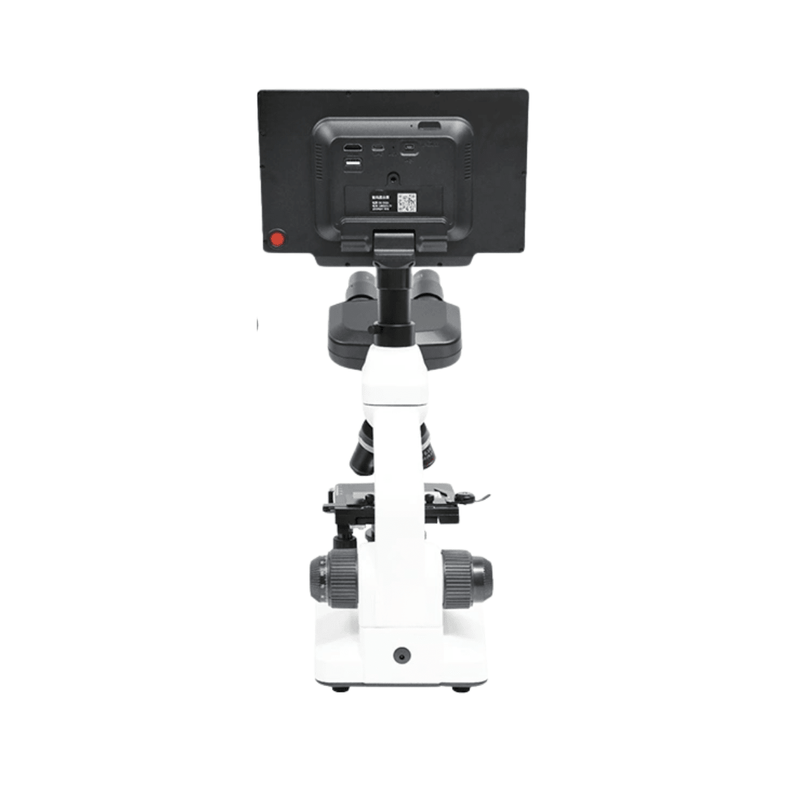

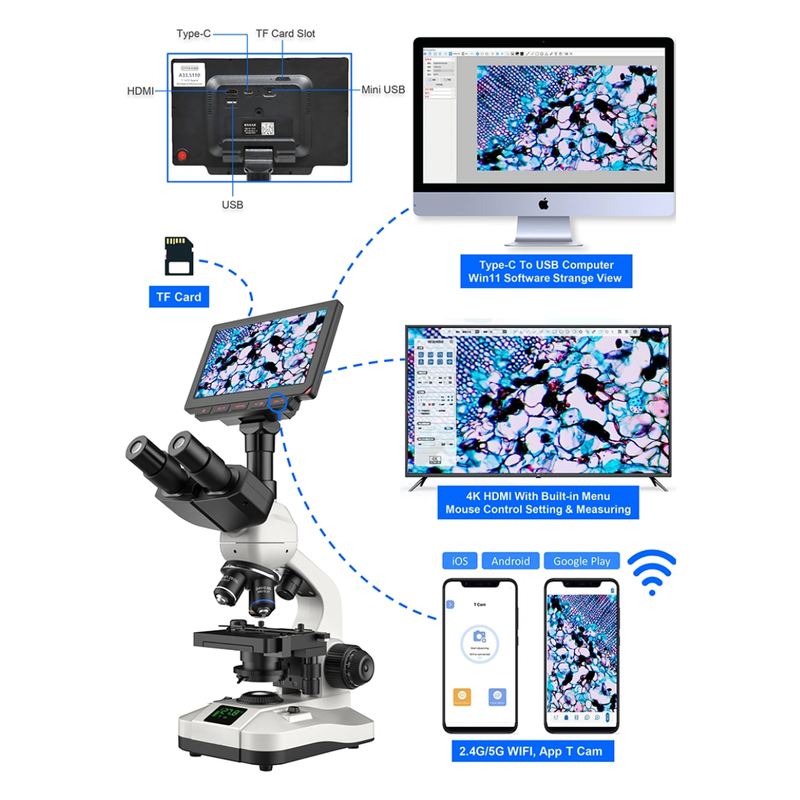

• Data Connectivity: Built-in 2.4G Wi-Fi (for Android/iOS App control), HDMI 1080p monitor output, and Type-C USB for PC integration.
• Data Storage: Included 8GB TF card, supporting scalable storage up to 64GB.
• Illumination: Dual adjustable LED system (1W bottom transmitter / 0.06W top reflector) with a 50,000-hour lifespan.

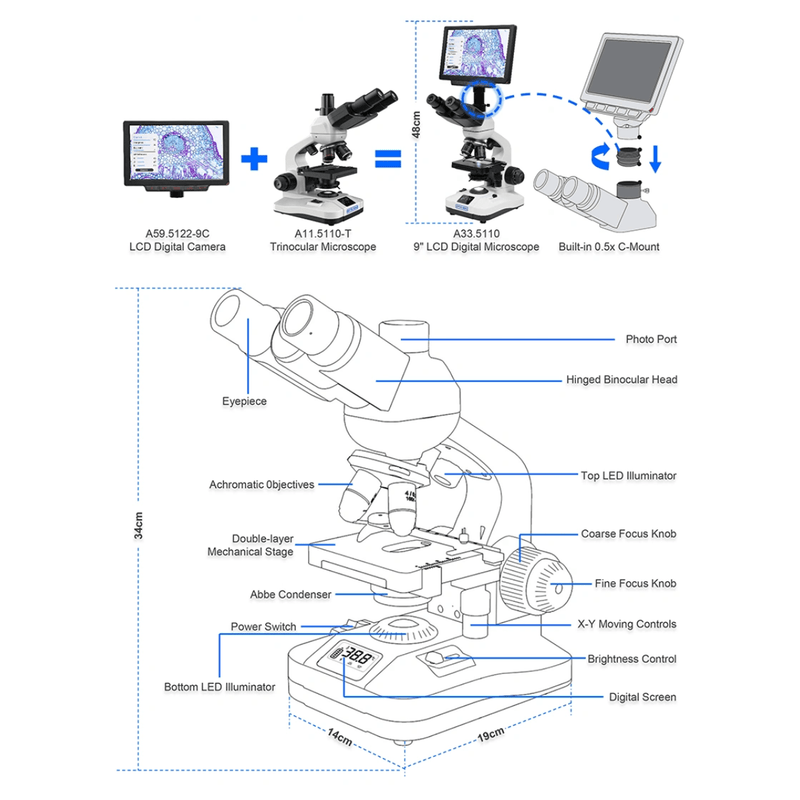

• Physical Specs: Strong metal build, net weight of 3.5 kg, main body dimension 19x14x48 cm.
• Country of Origin: China

 Common Applications

 Thanks to its flexible output options and multi-lens optical configurations, this microscope serves numerous fields:

• Academic & Clinical Classrooms: Allows teachers to stream live sample feeds to multiple students simultaneously via Wi-Fi or HDMI outputs.
• Medical Laboratories: Ideal for performing standard blood analysis, smear observations, and routine cell counts.
• Biological Research: Supports high-magnification botanical, zoological, and microbiological specimen tracking.
• Quality Control & Materials Inspection: Used to detect micro-faults in textiles, paper fibers, or synthetic materials utilizing the top LED light source.
• Veterinary Science: Enables easy diagnostics of parasite samples and fluid cultures directly on the built-in screen.

Warranty and Repair

Every Digital Microscope includes a one-year manufacturer warranty from the date of purchase. This is a strict return-and-repair warranty, meaning the manufacturer will repair any covered defects in materials or workmanship. If the technical team determines that a returned unit is completely unrepairable, a replacement unit or alternative resolution will be provided under the same one-year framework.

Please note that the warranty does not include the cost of returning the microscope; customers are responsible for all shipping, freight, and insurance fees required to transport the unit to the repair facility.

Please note that this warranty specifically covers normal laboratory operating defects and excludes the following:

• Accidental Drop Damage: Physical damage to the LCD screen, internal alignment, or metal frame caused by drops, falls, or improper transport.
• Oil Lens Misuse: Scratches, permanent cloudiness, or internal optical damage to the 100x objective lens resulting from improper oil application, lack of post-use cleaning, or using unauthorized immersion fluids.

Usage Parameters

• Ambient Temperature: Maintained continuously between 0°C to 40°C (32°F to 104°F). Extreme thermal fluctuations can cause optical glass expansion or internal condensation on the 2K CMOS sensor.
• Relative Humidity: Kept below 85% (non-condensing). High humidity risks the accumulation of moisture within the enclosed 9-inch LCD panel and promotes destructive fungal growth on the internal achromatic objectives.
• Atmospheric Environment: Must be a dust-free, smoke-free, and chemical-vapor-free zone to prevent corrosive degradation of the optical coatings and exposed metal mechanics.
• Physical Surface: Positioned on a rigid, level, and vibration-isolated laboratory bench. Excess mechanical vibrations or operating on uneven surfaces can destabilize the mechanical stage and strain the coaxial fine-focus mechanics.

Storage Parameters

• Dust Protection: Cover the entire microscope with the manufacturer-supplied anti-static dust cover immediately after it cools down. Dust accumulation on the exposed digital screen or internal prisms degrades imaging clarity.
• Moisture Management: Place the covered microscope into a dedicated, sealed storage cabinet. Store 2 to 3 packs of fresh silica gel desiccant directly underneath the dust cover to absorb lingering moisture.
• Climate Safeguards: Keep the storage room temperature regulated between -20°C and +55°C (-4°F to 131°F) with non-condensing relative humidity under 85%. Never store the device near windows, heating vents, or chemical storage cabinets containing volatile acids.
