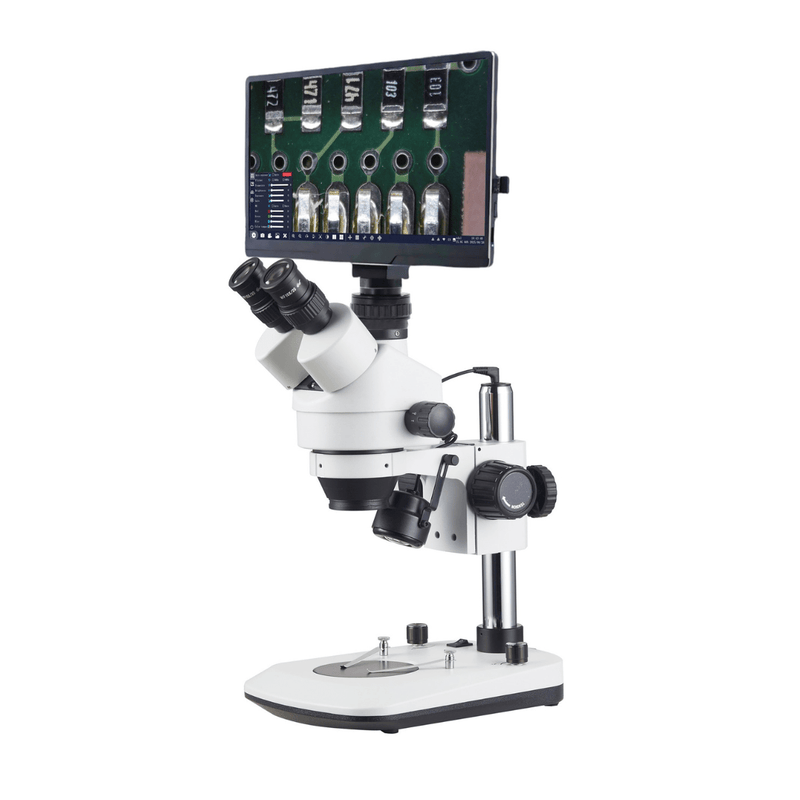

LCD Digital Stereo Microscope

LCD Digital Stereo Microscope

SKU NM-36-0902
R 23,500.00 - R 23,500.00
R 23,500.00
R 23,500.00 - R 23,500.00
R 23,500.00
Availability:
Only 1 left!

The LCD Digital Stereo Microscope combined with the 11.6-inch high-clarity LCD monitor imaging panel is an elite, industrial-grade 4K digital stereo microscopy. Bridging real-time microscopic examination with ultra-high-definition digital workflows, this standalone system features a massive 11.6-inch built-in display powered by a high-speed 8.0MP 1/1.8" CMOS sensor.

Designed to combat user fatigue during long inspection shifts, it removes the physical strain of traditional dual-eyepiece viewing while expanding collaborative capabilities. Boasting continuous 0.7x to 4.5x optical zoom and next-generation WiFi 6 networking, this system lets you measure, capture, and stream flawless 4K video at a fluid 60 frames per second—making it the ultimate interactive asset for modern manufacturing floors, high-tech research labs, and connected digital classrooms.

Technical Specifications

The system merges precision stereo optical mechanics with an advanced multimedia processing suite:

Optical and Mechanical System

  • Optical Zoom Range: Continuous 0.7x to 4.5x stereo zoom body.
  • Viewing Configuration: Trinocular optical head fitted with Widefield WF10x/20mm eyepieces.
  • Optical Adaptation: Includes a dedicated 0.5x C-mount adapter for exact digital sensor alignment.
  • Chassis & Stand: Heavy-duty B8L Pole LED Stand paired with an A1 focusing holder.
  • Physical Dimensions: Base stand sizes at 205x275x40 mm; vertical pole height stretches to 240 mm with a 32 mm outer diameter.
  • Lighting Array: Integrated dual 3W adjustable top and bottom LED illumination systems.

Digital Imaging

  • Integrated Display: 11.6-inch high-clarity LCD monitor.
  • Camera Sensor: Premium 1/1.8-inch CMOS sensor delivering true 8.0 Megapixel live imagery.
  • Live Refresh Rate: Smooth, ultra-high-definition output at 3840x2160 pixels (4K) running at 60fps over HDMI.
  • Capture Resolution: High-density 16M pixel photo capture capability with 10x digital zoom.
  • Hardware Connectivity: Multi-port panel offering HDMI, USB 3.0, twin USB 2.0 peripheral ports, and WiFi 6 wireless bands.
  • On-Board Measurement: Integrated S-Eye on-screen software supports direct USB keyboard and mouse operations for standalone measurement, drawing, and annotation without a PC.
  • PC Integration Suite: Dedicated USB 3.0 output streaming directly to computers running advanced S-Eye or ImageView software suites—featuring Extended Depth of Field (EDF), real-time image stitching, and advanced calibration metrics.
  • Network & Interactive Classroom Power: Wireless WiFi 6 streaming transmits live feeds effortlessly to mobile phones and tablets. The hardware natively scales up to support interactive, synchronized digital network classrooms linking up to 60 microscopes and cameras simultaneously.
  • Electrical Load: Managed via a standard DC 12V / 2A external power adapter.
  • Included Accessories: HDMI interface cable, high-speed USB cord, hardware mouse, and dedicated power supply.
  • Country of Origin: China

Common Applications

The stereoscopic depth of field paired with advanced measurement software makes this network-ready configuration perfect for several advanced industries:

  • Electronics Manufacturing & Micro-Soldering: Ideal for inspecting multi-layered PCBs, analyzing trace defects, wire bonding, and performing fine micro-soldering tasks directly on the 11.6-inch lag-free screen.
  • Advanced STEM & Digital Classrooms: Enables academic institutions to run interactive laboratories where up to 60 students can stream, capture, and study live biological or geological specimens on their personal tablets via WiFi 6.
  • Precision Engineering & Metrology: Perfect for analyzing machine parts, medical devices, and fine tool alignments utilizing the integrated mouse-driven calibration, crosshair overlay, and edge-detection tools.
  • Gemology & Watchmaking: Provides a spacious working distance and a brilliant stereoscopic view for identifying gemstone inclusions, checking engravings, and repairing intricate internal mechanical clockwork gears.
  • Forensics & Material Science: Used to compare fabric weaves, tool marks, and organic evidence samples while creating perfectly layered composites using the software's advanced image stitching and EDF (Extended Depth of Field) algorithms.

Warranty

The LCD Digital Stereo Microscope configuration includes a one-year manufacturer warranty from the date of purchase. This is a strict return-and-repair warranty, meaning the manufacturer will repair any covered defects in materials, structural mechanics, or digital sensor workmanship. If the technical team determines that a returned unit is completely unrepairable due to a manufacturing defect, a replacement unit or alternative resolution will be provided under the same one-year framework.

Please note that the warranty does not include the cost of returning the microscope; customers are responsible for all shipping, freight, customs, and insurance fees required to safely transport the unit to the repair facility.

Additionally, this warranty specifically covers normal laboratory and industrial operating defects and excludes the following:

  • Accidental Drop Damage: Physical damage to the 11.6-inch LCD panel, internal beam splitter, A1 focus holder, structural pole stand, or digital camera housing caused by drops, impacts, or improper workbench transport.
  • Optical Lens Misuse: Scratches, structural fracturing, or coating degradation on the 0.7-4.5x continuous zoom objectives, the WF10x/20 eyepieces, or the 0.5x C-mount adapter resulting from improper cleaning techniques, harsh chemical solvent exposure, or contact with unauthorized abrasive materials.

Normal Operating Conditions

Environmental Parameters

  • Ambient Temperature: Maintained continuously between 0°C to 40°C (32°F to 104°F). Operating outside this range can cause thermal expansion of the stereo optical glass, mechanical stage drift, or thermal throttling on the high-speed 4K processor.
  • Relative Humidity: Kept below 85% (non-condensing). High humidity risks moisture accumulation inside the 11.6-inch LCD panel, corrosion of the multi-port interface (HDMI/USB 3.0), and destructive fungal growth on the 0.7x–4.5x zoom optics.
  • Atmospheric Environment: Must be a low-dust, low-smoke, and chemical-vapor-free zone. Industrial welding or soldering environments must utilize adequate fume extraction to prevent acidic or metallic film buildup on the optical coatings and exposed metal mechanics.

Electrical and Placement Requirements

  • Power Supply: Operated using the original manufacturer-provided external DC 12V/2A power adapter connected to a stable, grounded electrical outlet (supporting 110V–240V, 50/60Hz inputs). Using uncertified power bricks or operating during severe power surges will void protection on the advanced motherboard and WiFi 6 wireless transceivers.
  • Physical Surface: Positioned on a rigid, level, and vibration-isolated laboratory or industrial workbench. Because stereo microscopes are used for precision assembly and measurement, excess structural vibration will destabilize the mechanical focus and skew measurement tolerances on the S-Eye software.
