Ball & Ring Apparatus (2 Piece Set)

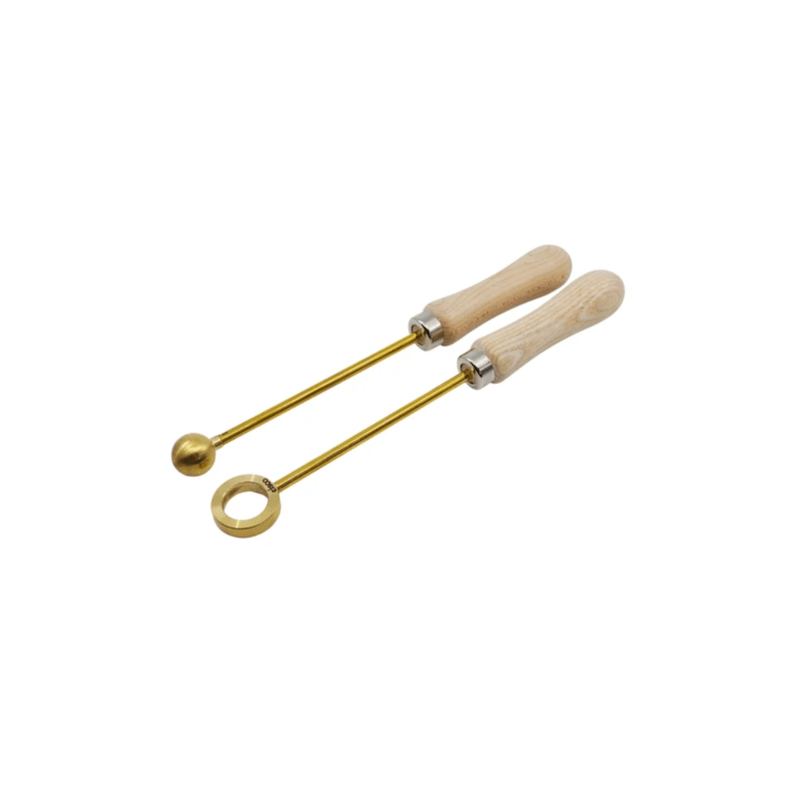

A Ball and Ring Apparatus (2 Piece Set) is a standard physics laboratory tool used to demonstrate the principle of thermal expansion in solids. It typically consists of a brass ball and a matching brass ring, each mounted on its own insulated rod with a wooden handle for safe handling.

This apparatus provides a clear, macroscopic proof of microscopic behavior. While the expansion is small (typically measured in fractions of a millimeter), the "pass/fail" nature of the ring test makes it an effective visual for students.

How it Works

The demonstration follows a simple three-step process to visualize how heat affects the size of metal:

1. Room Temperature: At room temperature, the ball is precisely engineered to pass freely through the ring.
2. Heating the Ball: When the ball is heated (usually over a Bunsen burner flame), the kinetic energy of its atoms increases, causing them to vibrate more and take up more space. This expansion makes the ball slightly too large to fit through the ring.
3. Cooling Down: Once the ball is cooled (by air or immersion in water), it contracts back to its original dimensions and can once again pass through the ring.

Key Applications

• Engineering Education: Used to explain why engineers must include expansion joints in bridges, railway tracks, and concrete structures.
• Gravesande's Apparatus: Some versions are known by this name, after the Dutch physicist Willem 's Gravesande who popularized the demonstration.
• Inverse Demonstration: If the ring is heated instead of the ball, the diameter of the "hole" also expands, allowing a ball that was previously too large to pass through.
