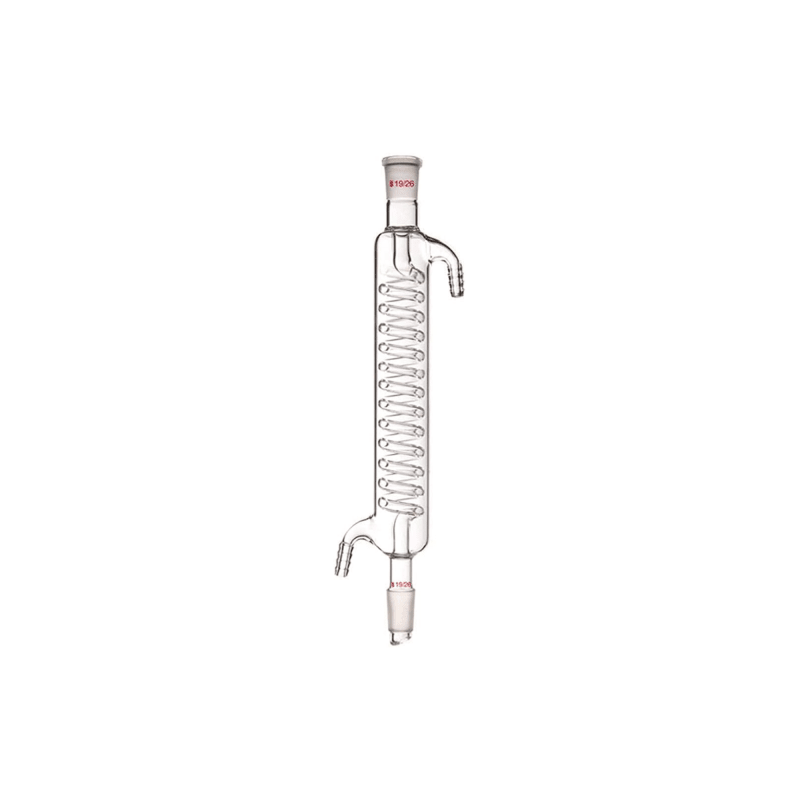

Condenser, Graham Condenser (Coild), Standard Ground Joint

Condenser, Graham Condenser (Coild), Standard Ground Joint

SKU
R 230.00 - R 425.00
R 230.00
R 230.00 - R 425.00
R 230.00
Availability:
Only 5 left!
Availability:
Only 5 left!
Availability:
Only 3 left!
Availability:
Only 4 left!
Availability:
Only 4 left!
Availability:
Only 5 left!

Hhigh-efficiency Graham Condenser featuring a coiled inner tube designed to maximize surface area for vapor cooling and condensation. It is manufactured from High Borosilicate 3.3 Glass, providing superior resistance to thermal shock and chemical attack.

Key Features
  • Material: 3.3 Borosilicate glass
  • Enhanced Heat Transfer: The spiral design increases the contact time between vapor and coolant.
  • Ease of Connection: Standard ground glass joints allow for leak-tight, quick connections with other laboratory glassware like flasks and adapters.
  • Durability: The fused design and heavy-duty borosilicate glass make it resistant to high temperatures and corrosive chemicals.
  • Orientation: Inlet and outlet tubes for cooling water are positioned on opposite sides of the outer jacket for efficient flow.
  • Jacket Lengths: Standard options range from 200mm to 500mm (e.g., 200mm, 300mm, 500mm).
  • Hose Connectors: Typically designed for tubing with an inner diameter of approximately 8mm.
  • Ground Mouth Sizes: Available in standard joint sizes including 19/26, 24/29, and 29/32.
  • Versatility: Ideally suited for distillation, refluxing, and solvent recovery systems.

Specifications:

  • Material: 3.3 Borosilicate glass
  • Design: Coiled (spiral) inner tube within an outer jacket for high-capacity cooling.
  • Neck: Ground glass joint (socket)
  • Joint Sizes: 19/26, 24/29, 24/40, 29/32 (Select an option)
  • Jacket Lengths: 200mm to 500mm (Select an option)
  • Brand: NONE
  • Product of China
Code  Jacket Length (mm) Total Length (mm) Joint Size (Ground Mouth)
5023-200 200 300–305 19/26 or 24/29 or 29/32
5023-300 300 405–445 19/26 or 24/29 or 29/32
5023-400 400 510–535 19/26 or 24/29 or 29/32
5023-500 500 610–640 19/26 or 24/29 or 29/32
5023-600 600 720–750 19/26 or 24/29 or 29/32
