Microscope Student Kit

Name: Microscope Student Kit
Brand: SmartLabs
Price: 3350.0 ZAR
Availability: InStock
Rating: 5.0 (1 reviews)

NM-42XT (WF-16x)

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty

59 in stock

R 3,350.00

Tax included. Shipping calculated at checkout.

Fast Nationwide Delivery
100% Quality Guaranteed
Reliable & Secure Payments

5 stars: 1 (100%)
4 stars: 0 (0%)
3 stars: 0 (0%)
2 stars: 0 (0%)
1 star: 0 (0%)

Spoke to Mishka & received Great Advice on selecting a Microscope for my Son's B-Day Gift. Paid EFT & received delivery from JHB > CPT within a few days on time as promised.
Unit itself is of Good Quality (not a Toy) with accessories in sturdy carry case & my Son is loving his new Microscopic Discoverys :)

Overall Great 5Star Service well deserved!

Have a question about this product?

Send us a message and we'll get back to you.

Microscope Student Kit

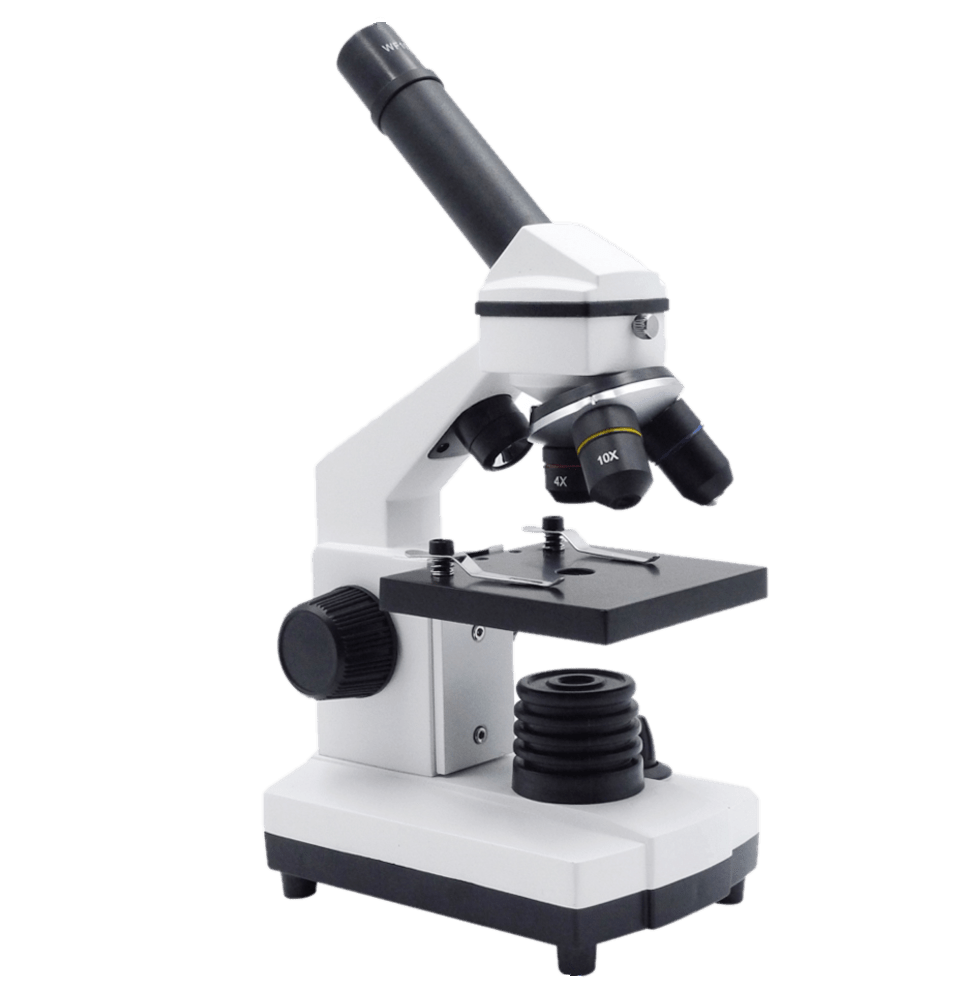

The microscope can magnify microscope slides up to 40x, 100x and 400x using the 10x eyepiece or 64x, 160x and 640x using the 16x eyepiece as supplied with the microscope and has two sources of light, one LED light on the base of the microscope and one LED light on the neck of the microscope. The microscope can be powered by either an AC adapter that is included in the kit or three 1.5 V batteries (batteries not included) enabling the student to use the microscope in-the-field. The kit also includes a microscope camera that can be connected to a computer for capturing images or showing the slide to students through a digital projector. The kit includes a variety of basic equipment required to create your own slides as well as five pre-prepared slides in a slide box all supplied in a rugged plastic case. A must have for any student interested in microscopy.

Specifications

Monocular 45 °
Rotatable 360°
Eyepieces:WF10x and WF-16x with Barlow Lens

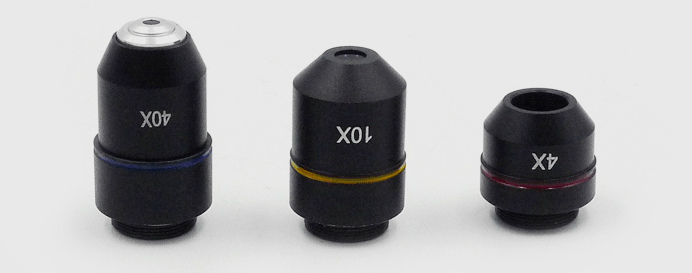

Objectives:4X,10x,40x
Total Magnification: 40x, 100x and 400x or 64x, 160x and 640x
Eyepiece Tube: Monocular 45°Inclined
Tube Rotatable 360°
Coarse Adjustment Range: 8mm
Working Stage: 90mm x 90mm

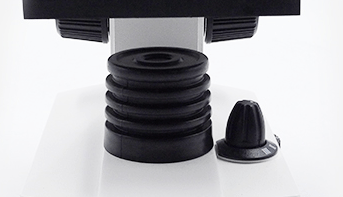

Condenser: NA 0.65 Abbe condenser
Illumination: LED lights Top and Bottom
Powered by 3 x 1.5V batteries or AC adapter

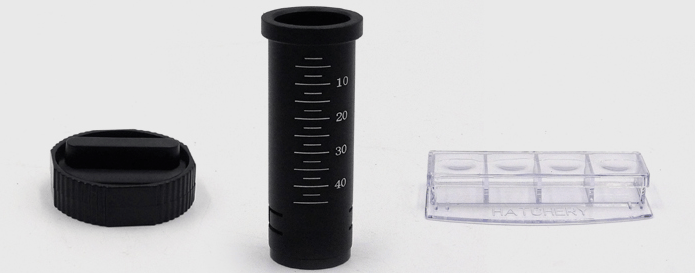

Accessories included:

MD10 digital eyepiece camera with software (cannot be used as document camera)
Slides cutter
Hatch case

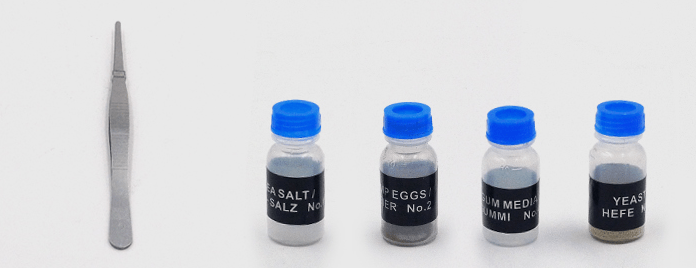

Tweezers
Sea salt one bottle
Yeast one bottle
Glue one bottle
Bug ovum one bottle
5.5V AC adapter
5 pieces prepared slides, 5 pieces blank slides

** Please note due to popular demand, the set is now sold with both 10x and 16x eyepieces for multiple magnifications. Total Magnification: 40x, 100x and 400x using 10x eyepiece or 64x, 160x and 640x using 16x eyepiece

Downloads

Specifications

Optics
Type: Compound, monocular

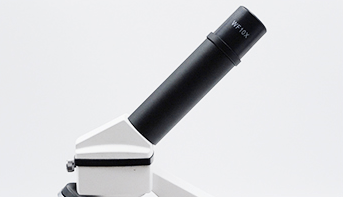

Head: 45° inclined, rotates 360°
Eyepieces: WF10x and WF16x with Barlow lens

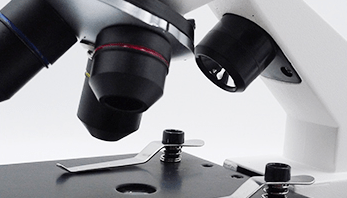

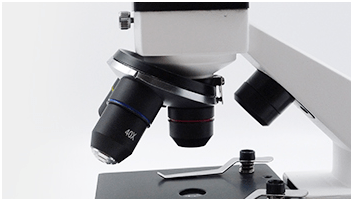

Objectives: 4x, 10x, 40x
Total magnification: 40x, 100x, 400x with WF10x, or 64x, 160x, 640x with WF16x
Condenser: Abbe N.A. 0.65
Stage and focus

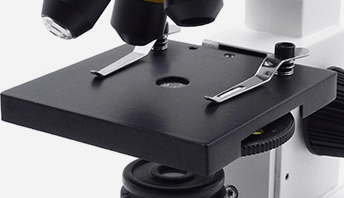

Stage: 90 x 90 mm
Coarse adjustment range: 8 mm
Light and power

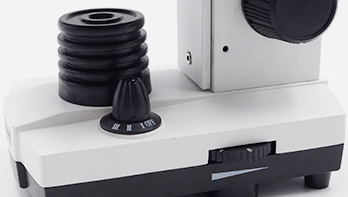

Illumination: LED top and bottom

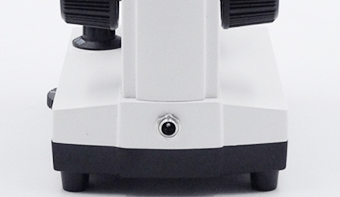

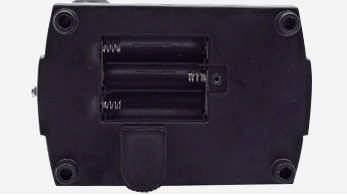

Power: 3 x 1.5 V batteries or AC adapter (included)
Camera

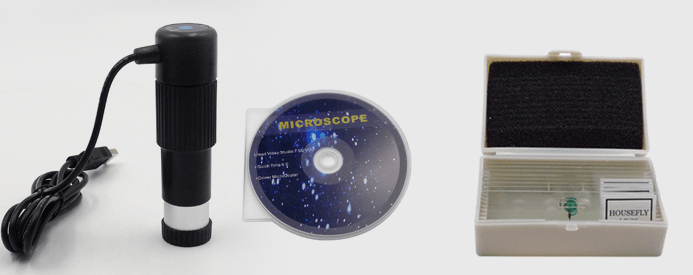

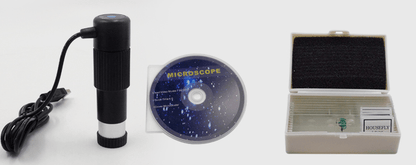

Included: MD10 digital eyepiece camera with software (not usable as a document camera)

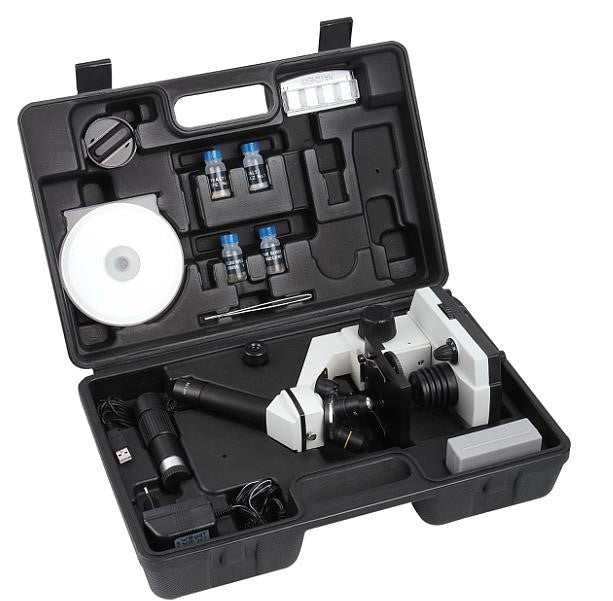

What's in the Box

Monocular microscope with top and bottom LED lights
WF10x and WF16x eyepieces
MD10 digital eyepiece camera with software
5.5 V AC adapter
5 prepared slides and 5 blank slides
Slide cutter and tweezers
Sea salt, yeast and glue for making your own slides

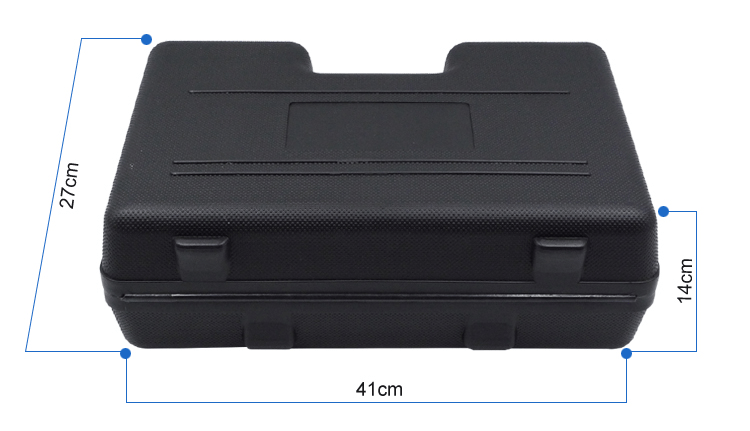

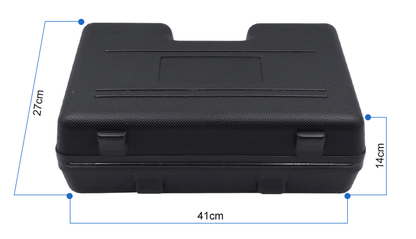

Hard carry case

Common Uses

First-purchase microscope kit for home or Grade 4-9 Natural Sciences
Basic classroom specimen viewing

Frequently Asked Questions

What magnification does the Microscope Student Kit reach?

40x, 100x and 400x with the 10x eyepiece. Swap in the 16x eyepiece and you get 64x, 160x and 640x. Both eyepieces come in the kit.

Does it need a plug point?

Only if you use the AC adapter, which comes in the kit. It also runs on three 1.5 V batteries (not included), so learners can take it outside for fieldwork.

Can I show the slide on a computer or projector?

Yes. The kit includes an MD10 digital eyepiece camera with software. Plug it into a computer to capture images, or put the slide up on a projector for the whole class. It can't be used as a document camera.

Which grades is it for?

It's a good first microscope for home use and for Grade 4 to 9 Natural Sciences. If you need higher magnification, our 1000x microscopes are the next step up.
