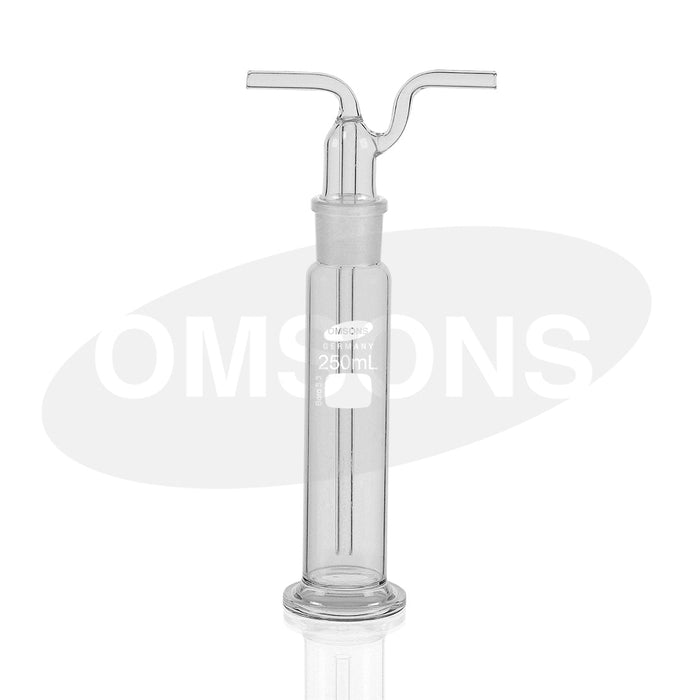

Gas Washing Bottle

Drechsel (Dreschel) glass gas washing bottle with interchangeable joint head and round base. Can be used to remove impurities from gasses. Inlet / Outlet Glass tubes measure 5mm inside diameter. Total height of the bottle is approx. 11 inches. Made of borosilicate glass.

Design:

• Complete Set: Includes a reservoir bottle and a detachable head with an inlet and outlet tube.
• Inlet/Outlet Tubes: Standard glass tubes measuring approximately 8 mm internal diameter.
• Bubbling Action: The inlet tube extends to the bottom of the bottle to ensure gas bubbles through the liquid medium for maximum absorption or scrubbing efficiency.

• Gas Purification: Removing impurities (like moisture or specific vapors) from a gas stream by bubbling it through a scrubbing liquid.
• Humidifying: Saturating a dry gas with water vapor.
• Gas Washing: Removing acidic or alkaline vapors from gas emissions.

1. Place the gas washing bottle in a secure place.
2. Fill the bottle with the choice liquid.
3. Grease the joints.
4. Connect the tubing to the 2 external glass tubes from the bottle, with the gas entry tube to the long tube, and the gas exit to the shorter tube.
5. Begin pumping gas through the bottle.

Specifications

• Material: Clear 3.3 Borosilicate Glass
• Joint Size: Select from drop down
• Tube Connector: Glass thread Connector
• Brand: OMSONS
• Product of India
