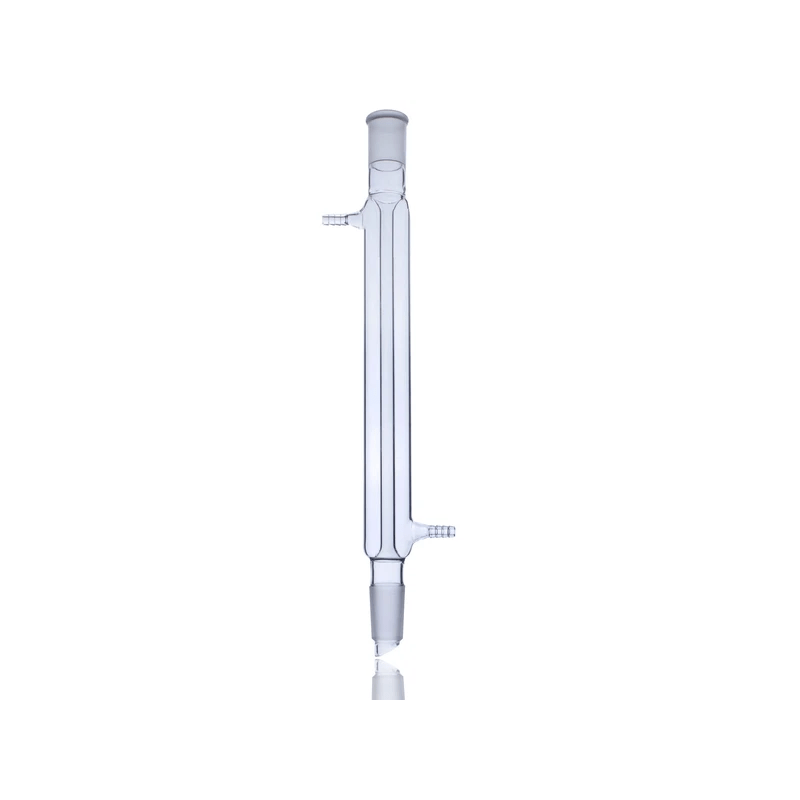

Liebig Condenser with Jointed

A Liebig condenser, also known as a straight condenser, is the most basic water-cooled condenser, consisting of a straight inner glass tube surrounded by an outer jacket. While "Liebig" and "straight" are often used interchangeably, the term "straight condenser" can sometimes refer to any condenser with a linear path (like a West condenser), whereas "Liebig" specifically refers to the standard wide-jacket design.

• Simple Distillation: Ideal for separating liquids with boiling points above


  where high-efficiency cooling isn't critical.
• Space/Budget: It is the most economical and widely used for general teaching and basic lab tasks.
• Low-Boiling Solvents: Better suited for very low-boiling points compared to air condensers, though double-surface condensers are preferred for extremely volatile solvents like ether.

• Coolant Direction: Always connect water to the lower port and exit from the upper port. This ensures the jacket is completely full, maximizing heat exchange.
• Vertical vs. Angled: For reflux (returning liquid to the flask), keep it vertical. For distillation (collecting product), mount it at a downward angle.

Specifications

• Material: Clear 3.3 Borosilicate Glass
• Joint Size: Select from drop down
• Length: Select from drop down (Effective Length (mm)).
• Tube Connector: Glass thread Connector
• Brand: OMSONS
• Product of India
