• Liebig Condenser with Jointed

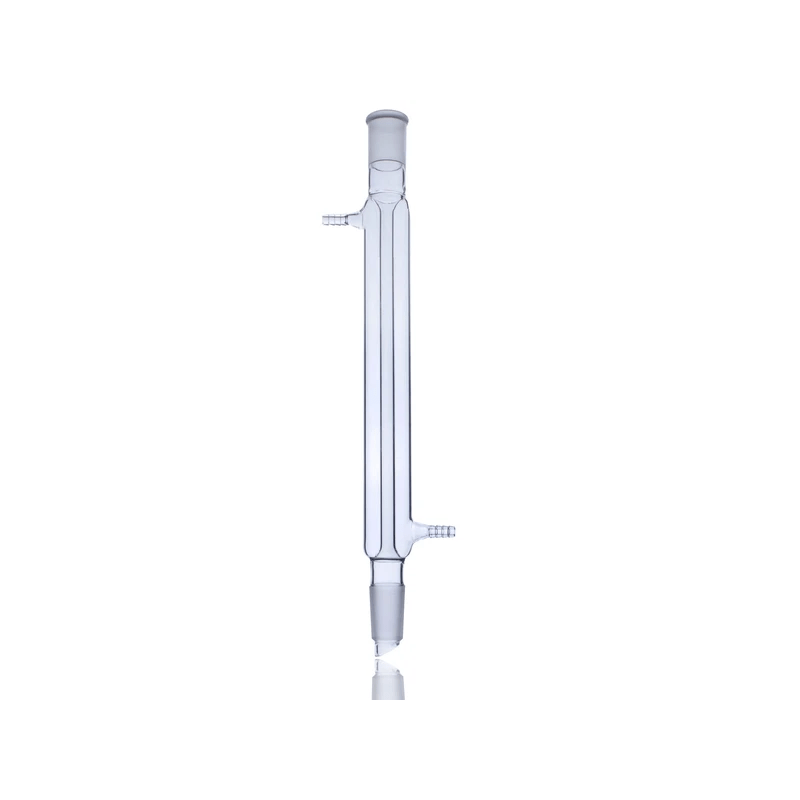

Liebig Condenser with Jointed

IN2062580-2

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 10 left
R 180.00
R 180.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

A Liebig condenser, also known as a straight condenser, is the most basic water-cooled condenser, consisting of a straight inner glass tube surrounded by an outer jacket. While "Liebig" and "straight" are often used interchangeably, the term "straight condenser" can sometimes refer to any condenser with a linear path (like a West condenser), whereas "Liebig" specifically refers to the standard wide-jacket design.

When to choose a Liebig Condenser
  • Simple Distillation: Ideal for separating liquids with boiling points above
    where high-efficiency cooling isn't critical.
  • Space/Budget: It is the most economical and widely used for general teaching and basic lab tasks.
  • Low-Boiling Solvents: Better suited for very low-boiling points compared to air condensers, though double-surface condensers are preferred for extremely volatile solvents like ether.
Usage Tips
  • Coolant Direction: Always connect water to the lower port and exit from the upper port. This ensures the jacket is completely full, maximizing heat exchange.
  • Vertical vs. Angled: For reflux (returning liquid to the flask), keep it vertical. For distillation (collecting product), mount it at a downward angle.

Specifications

  • Material: Clear 3.3 Borosilicate Glass
  • Joint Size: Select from drop down
  • Length: Select from drop down (Effective Length (mm)).
  • Tube Connector: Glass thread Connector
  • Brand: OMSONS
  • Product of India



Specifications

Material: Clear 3.3 Borosilicate Glass
