• Buchner Funnels, Sintered Disc (G3), Cone and Vacuum Stem

Buchner Funnels, Sintered Disc (G3), Cone and Vacuum Stem

CNW-1903-500-24/29

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 9 left
R 1,000.00
R 1,000.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

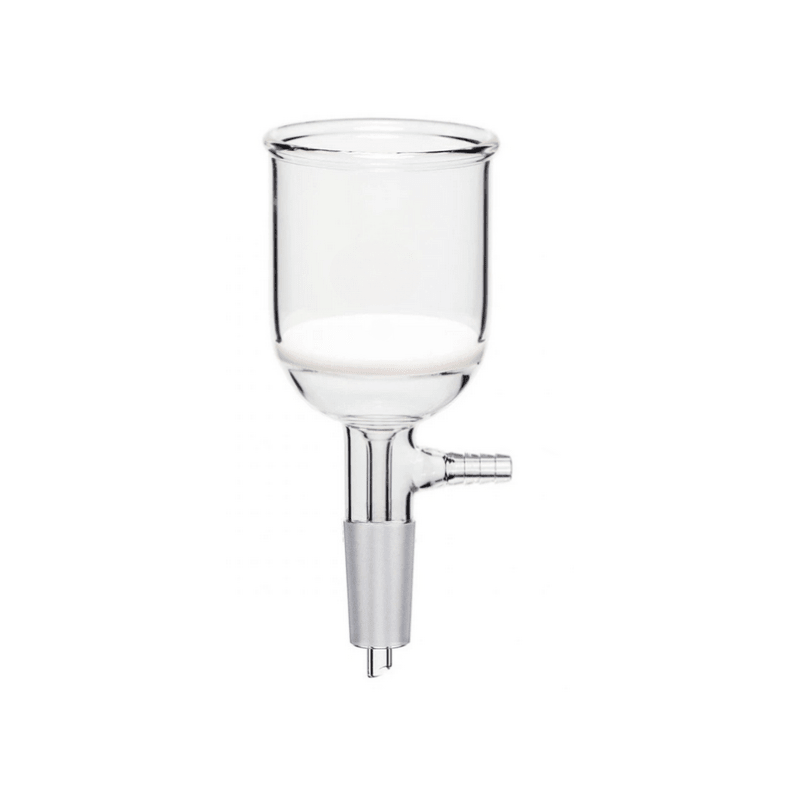

This Buchner funnel has a sintered (fritted) G3 glass disc, a standard ground-glass cone stem and a built-in vacuum hose barb. It's designed for vacuum filtration where you need a secure, airtight connection to a filtering flask.

Key Features

  • Body and disc: Quality borosilicate 3.3 glass, known for its chemical resistance and thermal stability.
  • Joint type: A standard ground joint (conical cone) on the stem fits straight into lab flasks.
  • Design: Heavy-walled construction that safely handles the pressure difference during vacuum filtration.
  • Vacuum hose barb: A hose barb (tubulation socket) is built into the stem so you can connect flexible vacuum tubing.
  • Recommended tubing I.D.: 6mm to 8mm
  • Barb outer diameter (O.D.): 8mm to 10mm
  • Tapered barb: The barb is slightly conical. The tip is usually 1 to 2mm smaller than the base, so tubing slides on easily and then seals tightly.
  • Choosing tubing: Pick tubing with an internal diameter (I.D.) that's 1 to 2mm smaller than the widest point of the barb.
  • Pressure rating: For vacuum work, use heavy-wall vacuum tubing (usually rubber or silicone) so it doesn't collapse under suction.
Porosity Grade Pore Size (µm) Common Application
G1 80 to 120 Coarse filtration, rapid flow
G2 40 to 80 Preparative filtration, crystalline precipitates
G3 15 to 40 Analytical work, fine precipitates (most common)
G4 5 to 15 Very fine precipitates, clarifying liquids
G5 1 to 2 Bacterial filtration, ultra-fine particles
Capacity (ml) Standard Joint Size Approx. Disc Diameter (mm)
250 24/29 or 29/32 60
500 24/29 or 29/32 90 to 95
1000 24/29 or 29/32 110 to 120

Usage Limitations

To avoid damaging the sintered glass disc, don't use these funnels with:

  • Hydrofluoric acid (HF).
  • Hot concentrated phosphoric acid.
  • Hot concentrated alkaline solutions.
