LCD Biological Digital Microscope,7 Inch 8.0M

NM-33-5130

Vendor: SmartLabs

Country of Origin: China

1 Year Warranty
Low stock! Only 2 left
R 8,690.00
R 8,690.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

LCD Biological Digital Microscope,7 Inch 8.0M

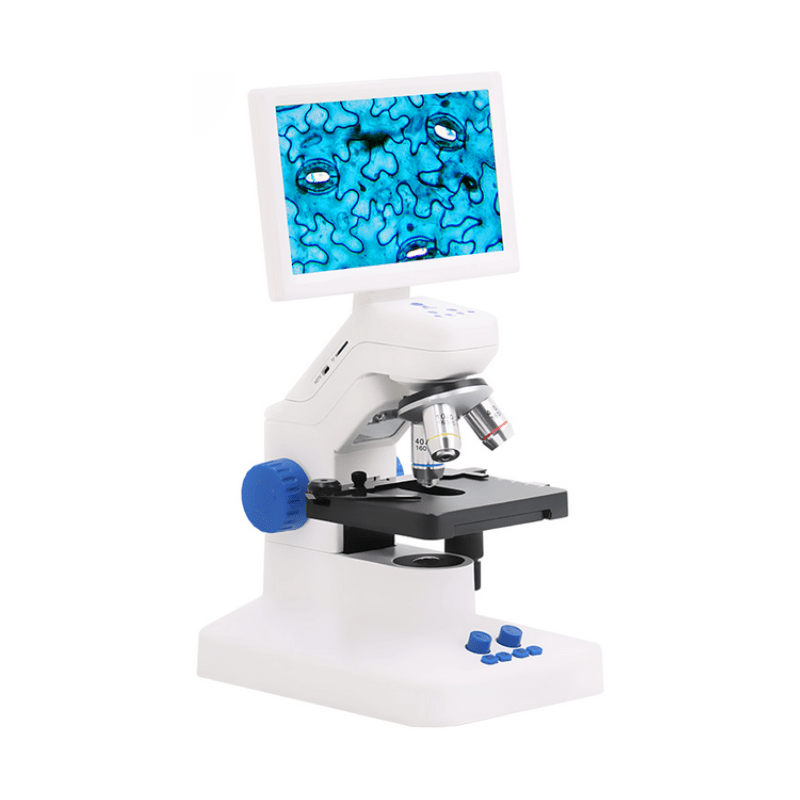

This LCD digital biological microscope is for school and educational use. It has achromatic 4x, 10x and 40x objectives with a 2x digital zoom (total magnification 55x~2750x), and a dual light source: upper and bottom LEDs with adjustable brightness. It takes a rechargeable 18650 battery.

  • Magnification: Optical 55x-550x, Digital Zoom 2x (20 Steps), Total Magnification 55x-1100x With 100x Optional Objectives, Total Magnification Up To 2750x
  • LCD Screen: 7” IPS LCD, Resolution 1024x600, Angle Adjustable 120°
  • Camera: CMOS 2.0M, Photo Resolution 8.0M, Video Resolution 1920x1080p Sensor1/2.9“ CMOS
  • Pixel Size: 2.8x2.8um
  • Nosepiece: 3 Holes
  • Objective: Achromatic 4x, 10x, 40x(Spring) High Contrast
  • Stage: Double Layer Mechanical Stage 95x105mm, Moving Range 20x50mm
  • Light: Upper & Bottom LED, Brightness Adjustable
  • Focusing: Coarse Focusing Knob, Focusing Range 8mm
  • OutputHDMI 1080p to TV USB 2.0 to Computer, Support Win10, Win11, Measuring Software Strange view. WIFI to Android or IOS Mobile Phone And Tablet, APP T OX.
  • Buttons: Buttons On Stand: Photo/Video/Album/Menu, Light Switch, WIFI Switch
  • Power:DC 5V 2A Adapter With Type C Cable
  • Rechargeable Battery: 18650, included. Because some airlines decline items with batteries installed, we may ship this item by economy road if express is selected.
  • ECO: Auto Power Off Setting 1min, 3min, 5min, 10min etc. Available

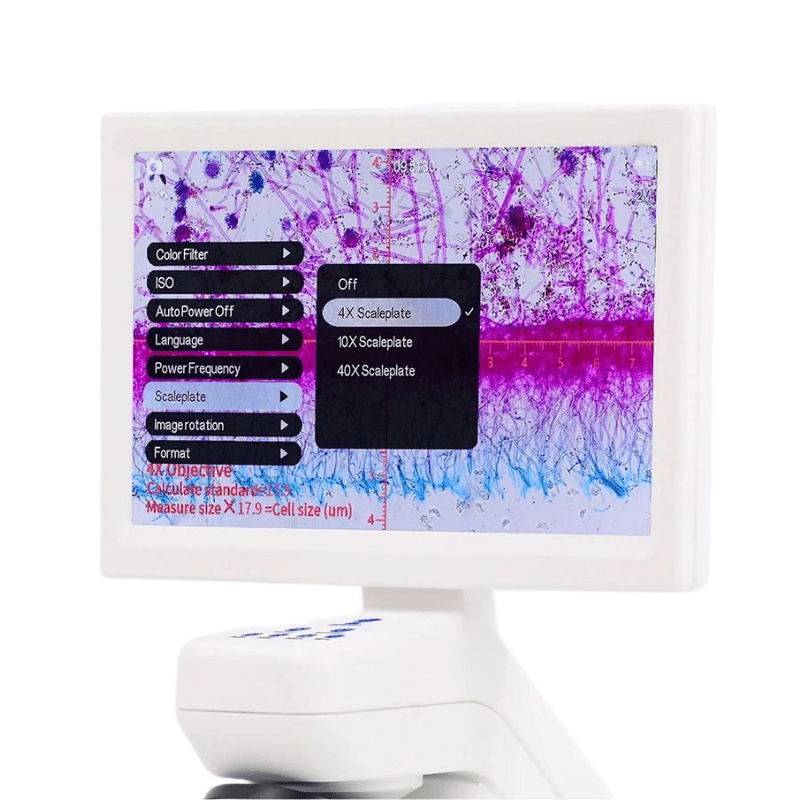

  • Measure: Built-in Measuring Scale For 4x, 10x, 40x
  • Language: 11 Languages Supported
  • Size: 31*19*18cm
  • Package: 20*23*27cm/2Kg

 Downloads

Specifications

Screen and camera
LCD: 7 inch IPS, 1024 x 600, tilts 120°
Camera: 2.0 MP CMOS, 8.0 MP photos, 1080p video
Outputs: HDMI 1080p to a TV, USB 2.0 to a computer (Windows 10 and 11), Wi-Fi to Android or iOS
Storage and controls: Photo, video, album, menu, light and Wi-Fi buttons on the stand
Optics
Objectives: Achromatic 4x, 10x, 40x (spring), high contrast
Nosepiece: 3 positions
Optical magnification: 55x to 550x
Digital zoom: 2x in 20 steps, for 55x to 1100x
Maximum with the optional 100x objective: 2750x
Stage and focus
Stage: Double-layer mechanical, 95 x 105 mm, moving range 20 x 50 mm
Focus: Coarse knob, 8 mm range
Measuring: Built-in scale for 4x, 10x and 40x
Power
Supply: DC 5 V 2 A adapter with a Type C cable
Battery: Rechargeable 18650 (not included, air freight restriction)
Other: Auto power off, 11 languages, 31 x 19 x 18 cm

Common Uses

Whole-class demonstration without an eyepiece queue
CAPS, IEB and Cambridge Life Sciences teacher-led lessons

Frequently Asked Questions

Is there an eyepiece?

No. You view everything on the 7 inch screen, which tilts up to 120° so a group can look at once.

Does it come with the battery?

No. The 18650 rechargeable battery ships separately because of air freight rules. The DC 5 V 2 A adapter is included.

Can learners measure what they see?

Yes. A measuring scale is built in for the 4x, 10x and 40x objectives, and the Windows software adds measuring on a computer.

How do I get it onto a classroom TV?

HDMI at 1080p straight to the TV. Wi-Fi sends the view to phones and tablets, and USB connects it to a computer.
