• Vacuum Adapters, Receiver, Straight

Vacuum Adapters, Receiver, Straight

OM-1013-1PTFE

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 5 left
R 92.00
R 92.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

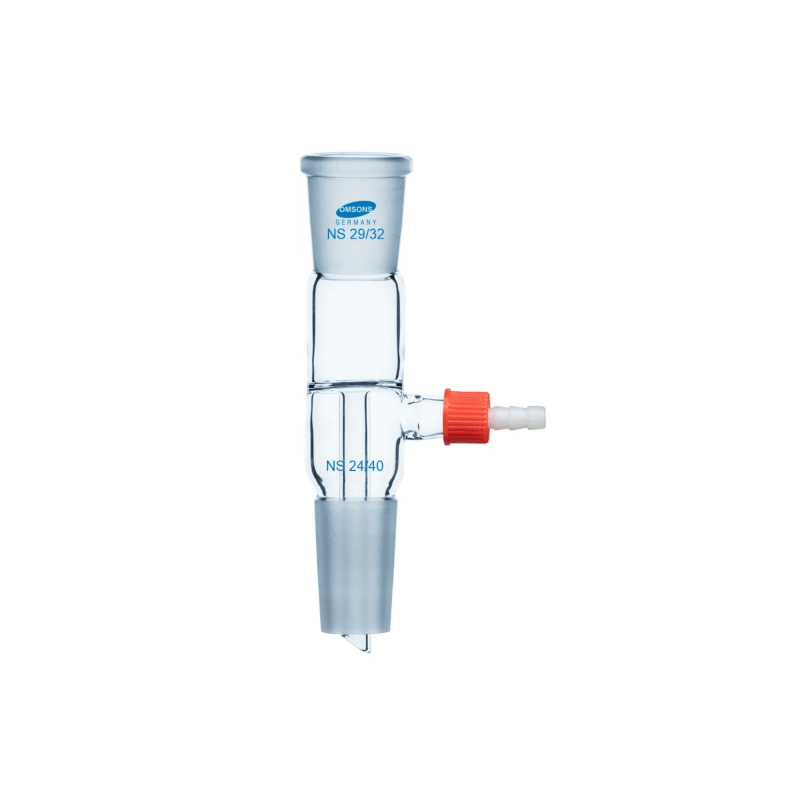

The Omsons Straight Vacuum Receiver Adapter designed for laboratory distillation setups. It connects a condenser to a receiving flask while providing a side-arm for vacuum or inert gas connection. It essentially acts as a "bridge" that adds a vacuum port to a stack that otherwise wouldn't have one.

Application
  • Filtration: If you have a standard Buchner funnel and a plain Erlenmeyer flask (neither of which has a side-arm), placing this adapter between them instantly converts the setup for vacuum filtration.
  • Vertical Distillation: In setups where space is tight or the configuration is strictly vertical, it allows you to pull a vacuum directly above the receiving flask without needing a specialized "bent" vacuum receiver or a side-arm condenser.
Because it includes a drip tip inside the lower joint, it also ensures that your liquid drops straight down into the center of the bottom flask rather than running down the grounded glass joints, which prevents sticking or contamination.

Key Features
  • Design: Features a straight vertical body with a drip tip and a delivery stem inside the lower cone to ensure distillate flows directly into the receiver.
  • Vacuum Connection: Includes a side-arm (hose connection) for easy attachment to vacuum tubing or flexible connectors.
  • Material: Manufactured from 3.3 Borosilicate Glass, which offers high resistance to thermal shock and chemical corrosion.
  • Standard Joints: Commonly available in several interchangeable ground joint sizes to fit standard laboratory flasks and condensers

Specifications

  • Material: 3.3 Borosilicate Glass Polyethylene hose barb
  • Drip-Tip: Yes
  • Joint Size: Select from drop down
  • PTFE Connector: 8mm diameter GL14 screw thread
  • Brand: OMSONS
  • Product of India

Specifications

Material: 3.3 Borosilicate Glass
PTFE Connector: 8mm Diameter, GL14 Screw Thread
