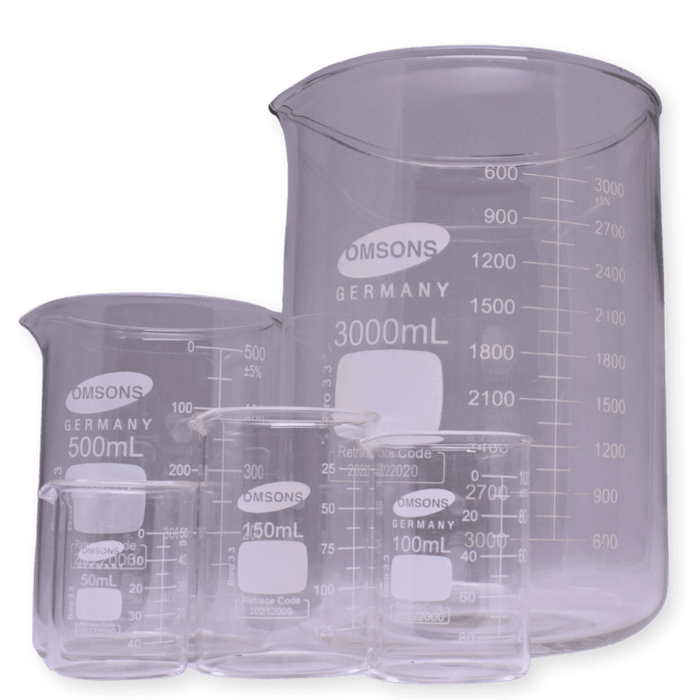

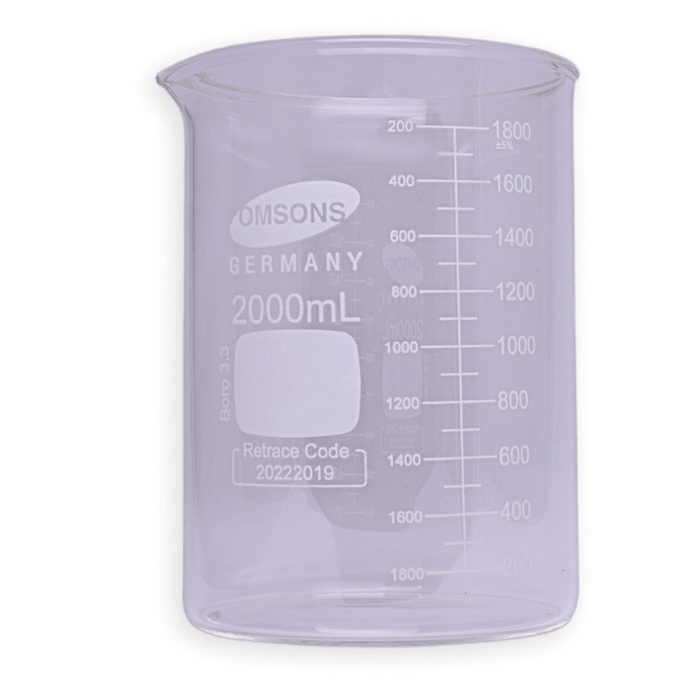

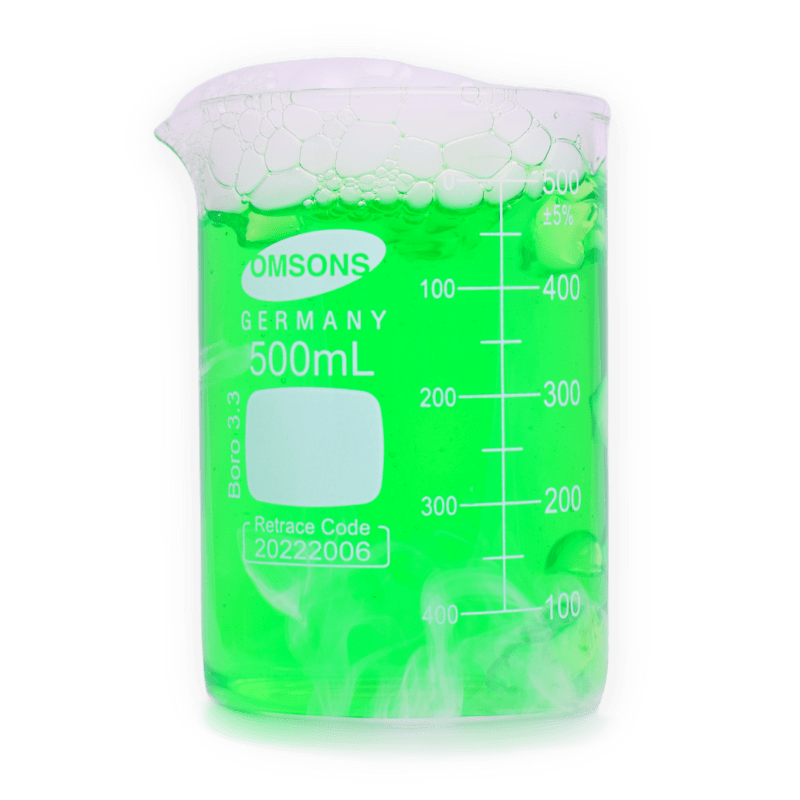

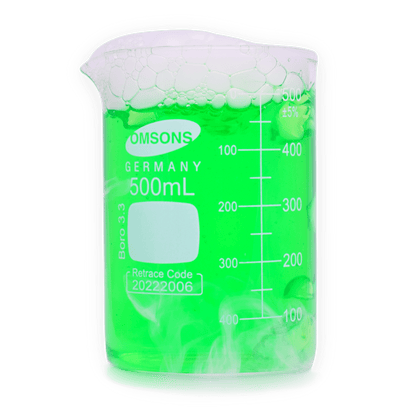

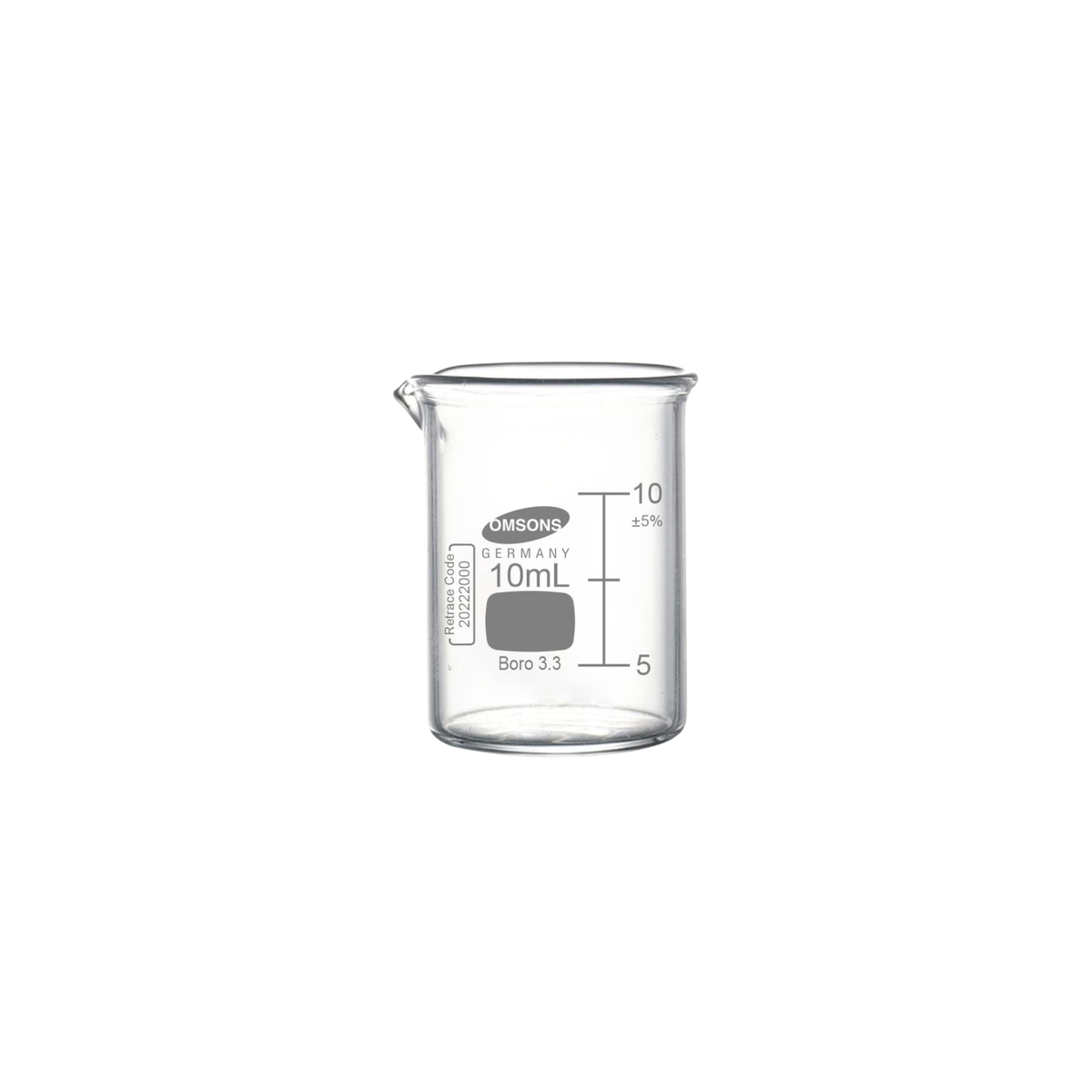

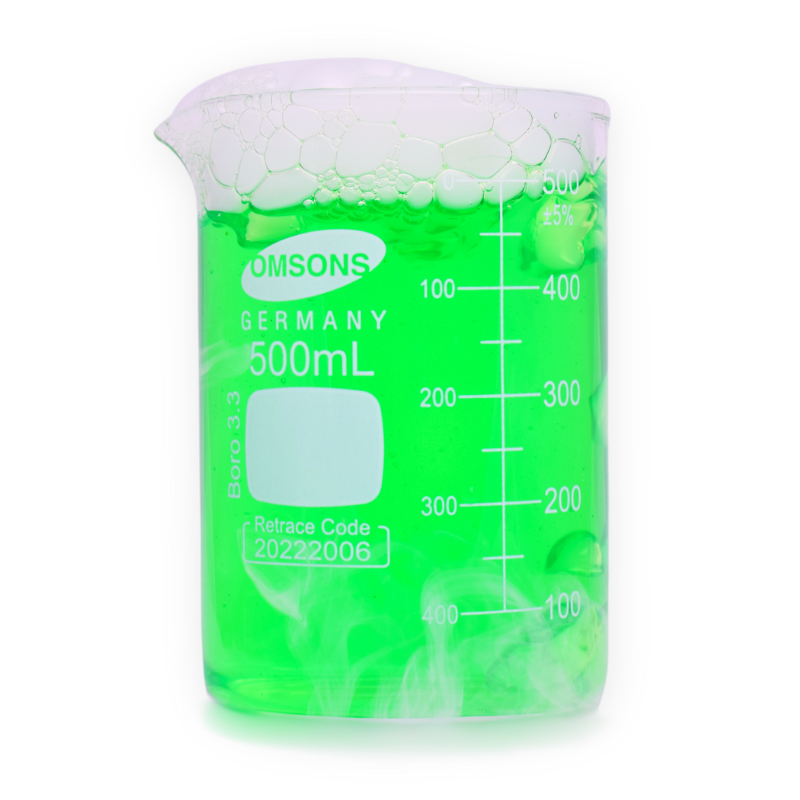

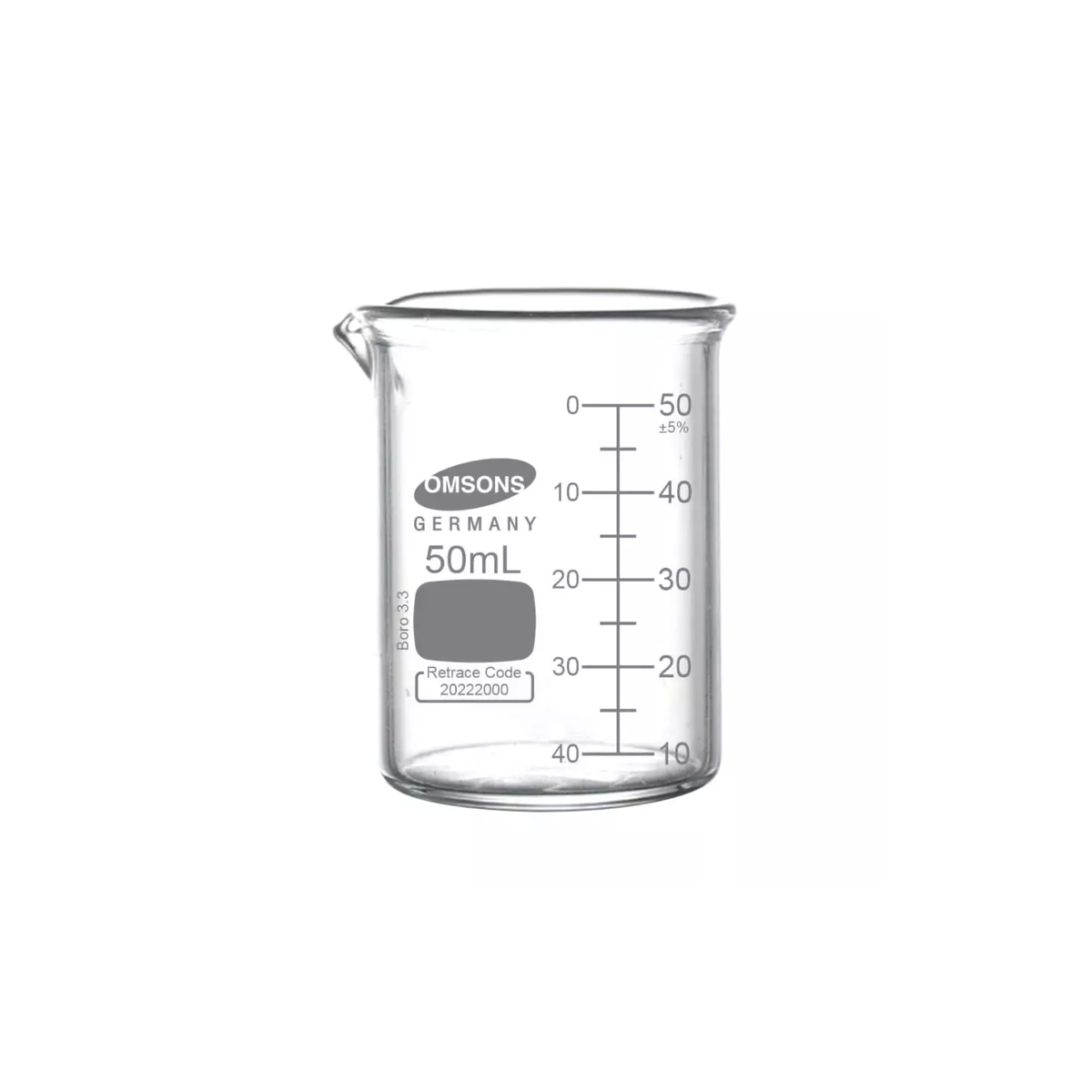

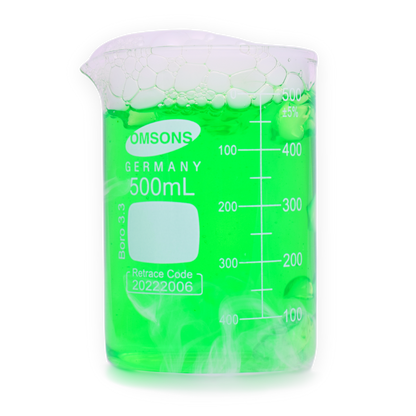

Beaker. Borosilicate, Low Form
Borosilicate glass, low form graduated beakers with spout. These beakers are equivalent to leading brands in quality, durability and heat resistance.
| Glassware Type | Typical Accuracy (Tolerance) | Best Use Case |
|---|---|---|
| Beaker / Erlenmeyer Flask | ±5% | Mixing, heating, rough estimation |
| Graduated Cylinder | ±1% | Reliable everyday volume measurement |
| Volumetric Flask (Class B) | ±0.4% to ±0.8% | General solution preparation |
| Volumetric Flask (Class A) | < ±0.2% | High-precision analytical work |
These beakers are suitable for heating on hotplates, autoclaving at 121°C, and managing aggressive chemicals.
Uniform walls provide excellent strength against breakage. Borosilicate glass has the following heat tolerances: Strain Point -515°C, Annealing Point 565°, Softening Point 820°C.
Specifications
- Capacity: 5ml to 10 000 ml
-
Graduated: Dual scale Metric graduation. Graduated to the total volume of the beaker.
- Graduated / Print: White printed and white graduation lines

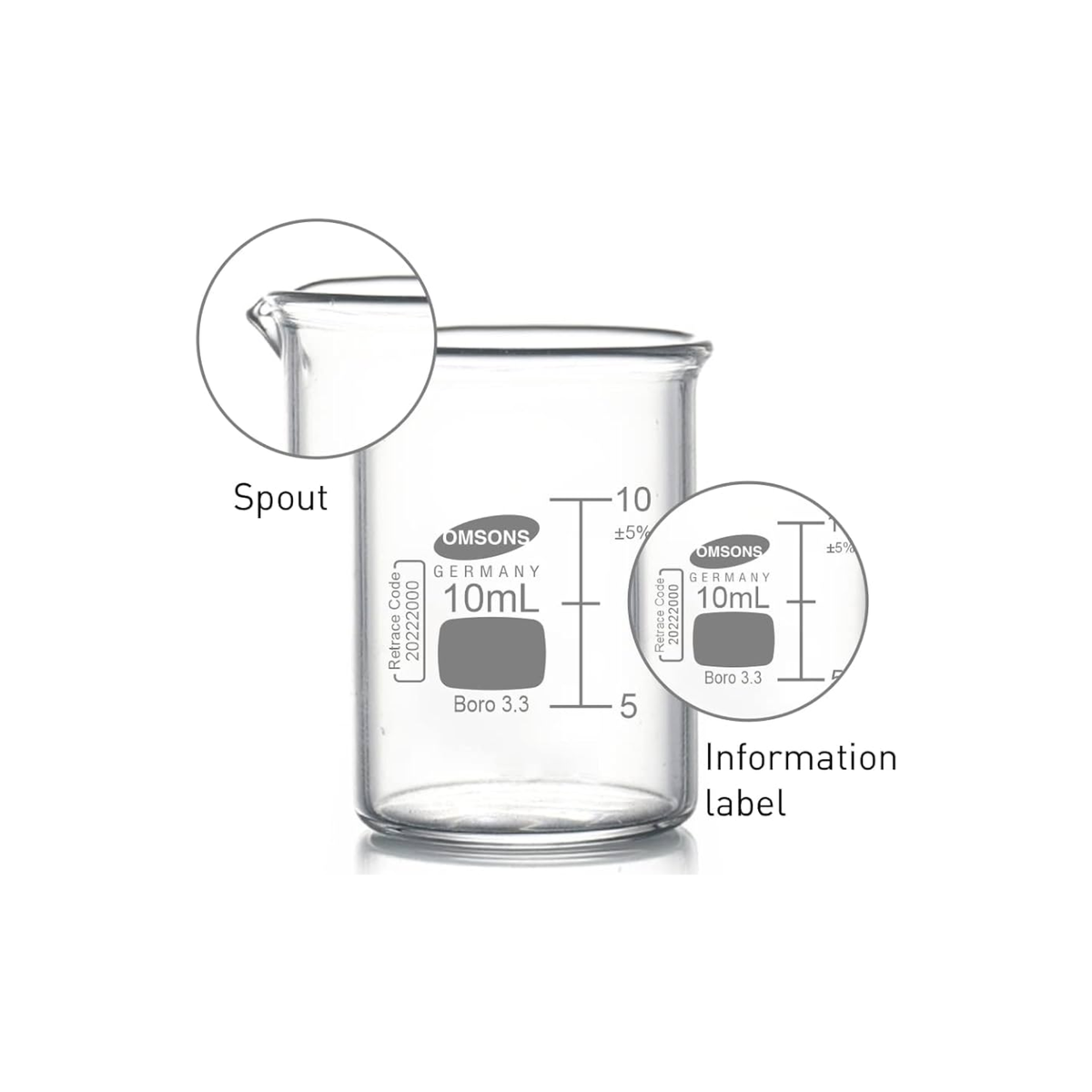

- Labelling Field: Includes a large, matte-finished labelling area for easy marking.
- Material: Borosilicate 3.3 Glass. Uniform wall thickness provides excellent strength against breakage and ideal for heating liquids.Highly resistant to chemical attack.
- Design: Low form with spout for easy pouring.
- Uniform Walls: Manufactured with uniform wall thickness to provide mechanical strength and even heat distribution
- Highly resistant to chemical attack.
- Compliance: DIN 12331 an ISO 381
| Product Code | Capacity (mL) | Diameter (mm) | Height (mm) | Graduations (mL) | Readability (mL) |
| BK0101 | 5 | 22 | 32 | Every 5mL | 5mL to 5mL |
| BK0102 | 10 | 24 | 34 | Every 5mL | 5mL to 10mL |
| BK0103 | 25 | 34 | 51 | Every 5mL | 5mL to 25mL |
| BK0104 | 50 | 42 | 60 | Every 10mL | 10mL to 50mL |
| BK0105 | 100 | 50 | 72 | Every 20mL | 20mL to 100mL |
| BK0106 | 150 | 60 | 85 | Every 25mL | 25mL to 150mL |
| BK0107 | 250 | 68 | 95 | Every 50mL | 50mL to 250mL |
| BK0108 | 400 | 82 | 113 | Every 50mL | 50mL to 400mL |
| BK0109 | 500 | 83 | 117 | Every 100mL | 100mL to 500mL |
| BK0110 | 600 | 90 | 123 | Every 100mL | 100mL to 600mL |
| BK0112 | 1000 | 105 | 144 | Every 100mL | 100mL to 1 000mL |
| BK0113 | 2000 | 130 | 188 | Every 200mL | 200mL to 2 000mL |
| BK0114 | 3000 | 152 | 214 | Every 300mL | 300mL to 3 000mL |
| BK0115 | 5000 | 170 | 274 | Every 1 000mL | 1 000mL to 5 000mL |
| BK0116 | 10000 | 220 | 360 | Every 1 000mL | 1 000mL to 10 000mL |
The above sizes may not be as per the official measurements as they are not Low Form Griffin Beaker. Standard Griffin beakers, including those from Omsons, are typically graduated from 20% to 80%. The above is graduate to the volume of the beaker. Thus, the beaker might be larger in physical dimensions.
