Binocular Microscope, 1000x Double Layer Stage

NM-100-10x

Vendor: SmartLabs

Country of Origin: China

1 Year Warranty
Out of stock
R 6,100.00
R 6,100.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
A
Anonymous

good quality

Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

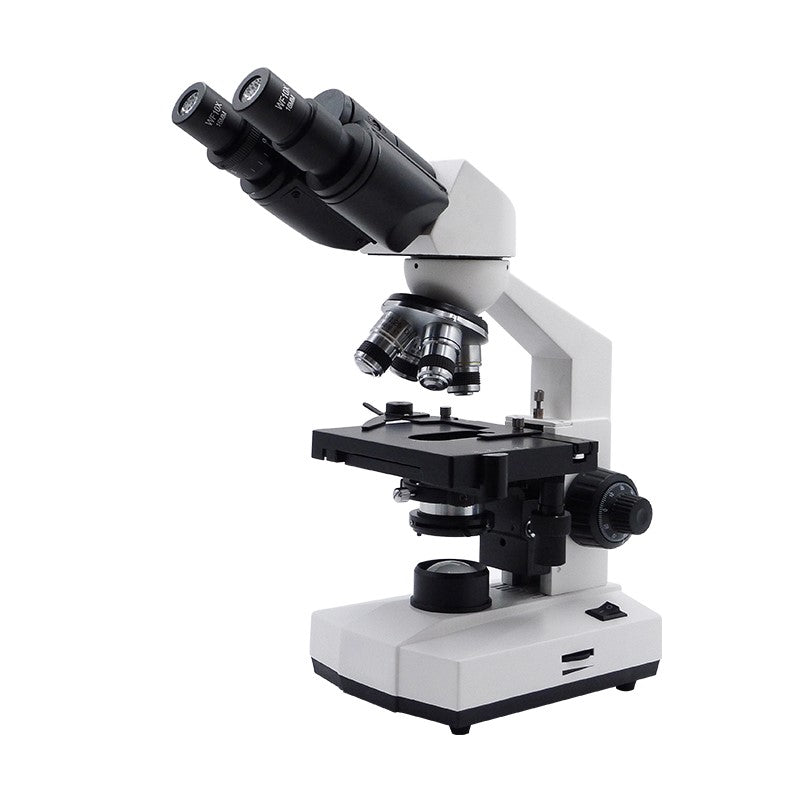

Binocular Compound Light Microscope, 1000x Double Layer Stage

This general use microscope has a double layer mechanical stage with a binocular eyepiece head and uses a halogen lamp for illumination. The microscope is fitted with four achromatic objectives 4x, 10x, 40x and 100x (oil) that allows for user to magnify the specimen up to a total magnification of 1000x. The double layer stage allows for ease of movement and the microscope features a coaxial coarse and fine adjustment focusing range of 20mm.

Specification

  • Head: Binocular Head, 30° Inclined, 360° Rotatable
  • Eyepiece: WF10x
  • Nosepiece: Quadruple Nosepiece,
  • Objective: Achromatic 4x,10x,40x(s), 100x(s, oil)
  • Total Magnification: 40x, 100x, 400x, 1000x

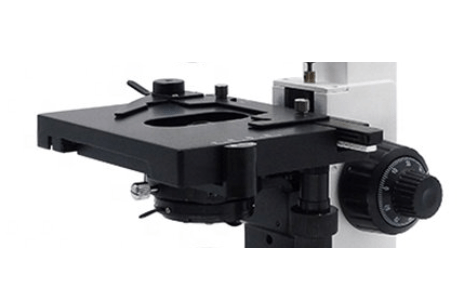

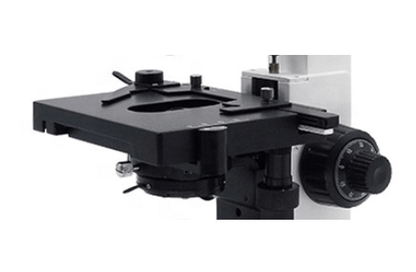

  • Double layer mechanical stage, size: 115 x 125mm

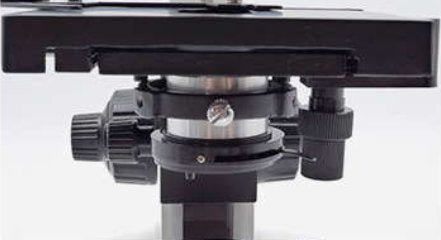

  • Coaxial coarse and fine adjustment, focusing range 20mm
  • N.A 1.25 Abbe condenser & Iris diaphragm Filter
  • 6V 20W Halogen Lamp
  • AC Input 220V
  • Physical Dimensions: 36cm (H) x 19cm (W)x 13.5cm (L)

Downloads

  • Download User Manual
  • Download Product Data sheet

Specifications

Optics
Head: Binocular, 30° inclined, rotates 360°
Eyepieces: WF10x
Nosepiece: Quadruple
Objectives: Achromatic 4x, 10x, 40x (spring), 100x (spring, oil)
Total magnification: 40x, 100x, 400x, 1000x
Stage and focus
Stage: Double-layer mechanical stage, 115 x 125 mm
Focus: Coaxial coarse and fine, 20 mm range
Condenser: Abbe N.A. 1.25 with iris diaphragm and filter
Power and size
Light: 6 V 20 W halogen lamp
Power: 220 V AC mains
Dimensions: 36 cm high x 19 cm wide x 13.5 cm deep

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
General-use school Life Sciences workhorse

Frequently Asked Questions

What can I see at 1000x?

Bacteria, blood cells and fine detail inside cells. The 100x objective is an oil immersion lens, so put a drop of immersion oil between the slide and the lens or the image will stay blurry.

Is it suitable for Grade 10 to 12 Life Sciences?

Yes. With 40x to 1000x it handles the cell and tissue slides used in CAPS, IEB and Cambridge Life Sciences practicals.

Does it work without electricity?

No. It uses a 6 V 20 W halogen lamp that runs off 220 V mains, so you need a plug point. For a battery option, look at our battery-operated 1000x microscopes.

Why choose binocular over monocular?

You look with both eyes, which is far less tiring over a long practical. The head also rotates 360°, so learners on either side of the bench can use it.
