• Buchner Funnels Borosilicate Glass Cone and Vacuum G3 Porosity

Buchner Funnels Borosilicate Glass Cone and Vacuum G3 Porosity

JN-FN-200VC-B24

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 5 left
R 494.50
R 494.50
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

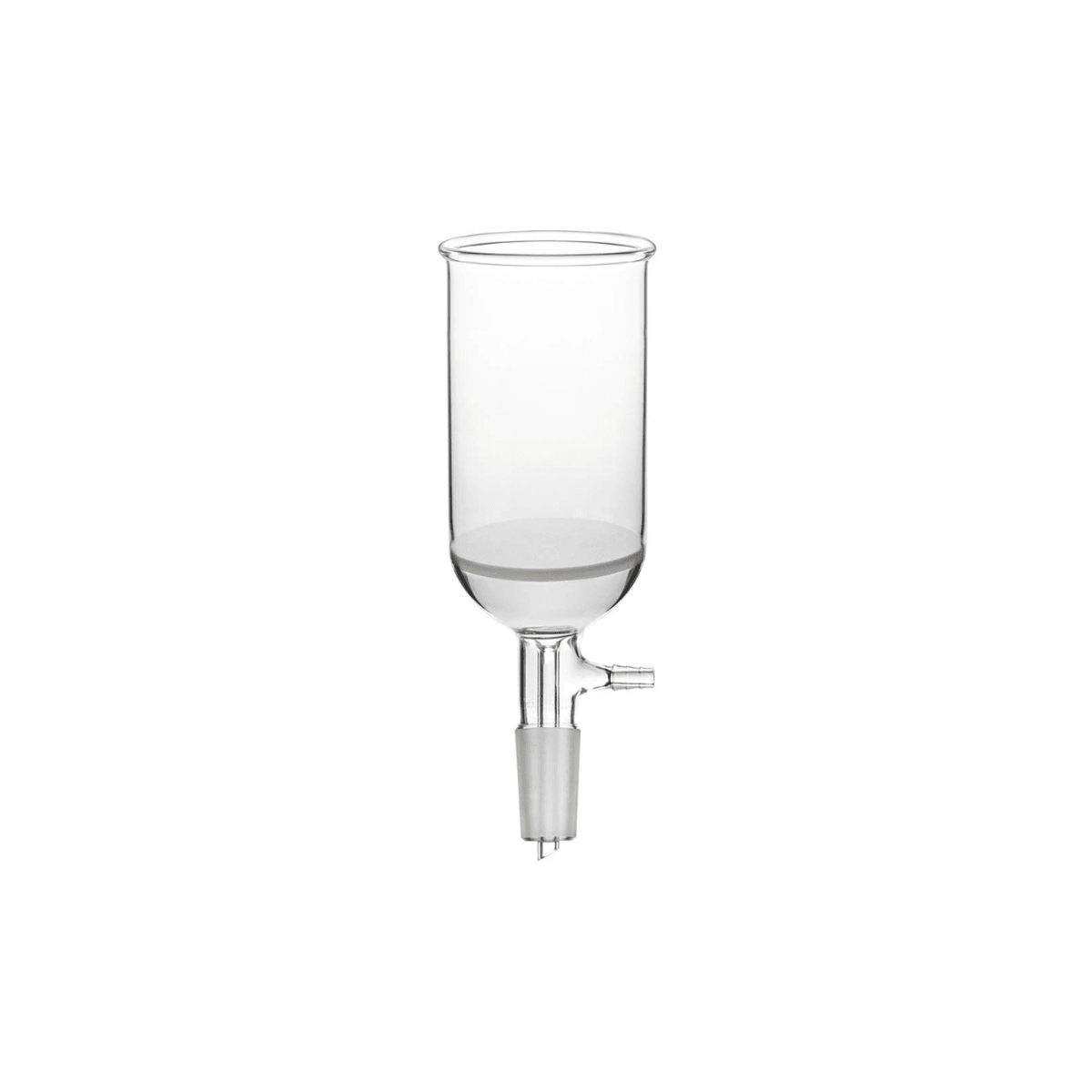

This Buchner funnel is made from borosilicate glass, with a sintered (fritted) glass disc, a standard ground-glass cone (I/C) on the stem and a built-in vacuum hose barb. It's designed for vacuum filtration where you need a secure, airtight connection to a filtering flask.

Key Features

  • Body and disc: Made from quality borosilicate 3.3 glass, known for its chemical resistance and thermal stability.
  • Joint type: A standard ground joint (conical cone) on the stem fits straight into laboratory flasks.
  • Design: Heavy-walled construction that safely handles the pressure difference during vacuum filtration.
  • Vacuum hose barb: A hose barb (tubulation socket) is built into the stem so you can connect flexible vacuum tubing.
  • Recommended tubing I.D.: 6mm to 8mm
  • Barb outer diameter (O.D.): 8mm to 10mm
  • Tapered barb: The barb is slightly conical. The tip is usually 1 to 2mm smaller than the base, so tubing slides on easily and then seals tightly.
  • Choosing tubing: Pick tubing with an internal diameter (I.D.) that's 1 to 2mm smaller than the widest point of the barb.
  • Pressure rating: For vacuum work like Buchner filtration, use heavy-wall vacuum tubing (usually rubber or silicone) so the tube doesn't collapse under suction.

Specifications

  • Material: Clear 3.3 borosilicate glass
  • Stem: Jointed
  • Printing: White enamel markings (acid and scratch-resistant)
  • Brand: JLAB
  • Product of India
