Compound Binocular School Microscope

NM-45SB

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty
15 in stock
R 6,500.00
R 6,500.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

Compound Binocular School Microscope

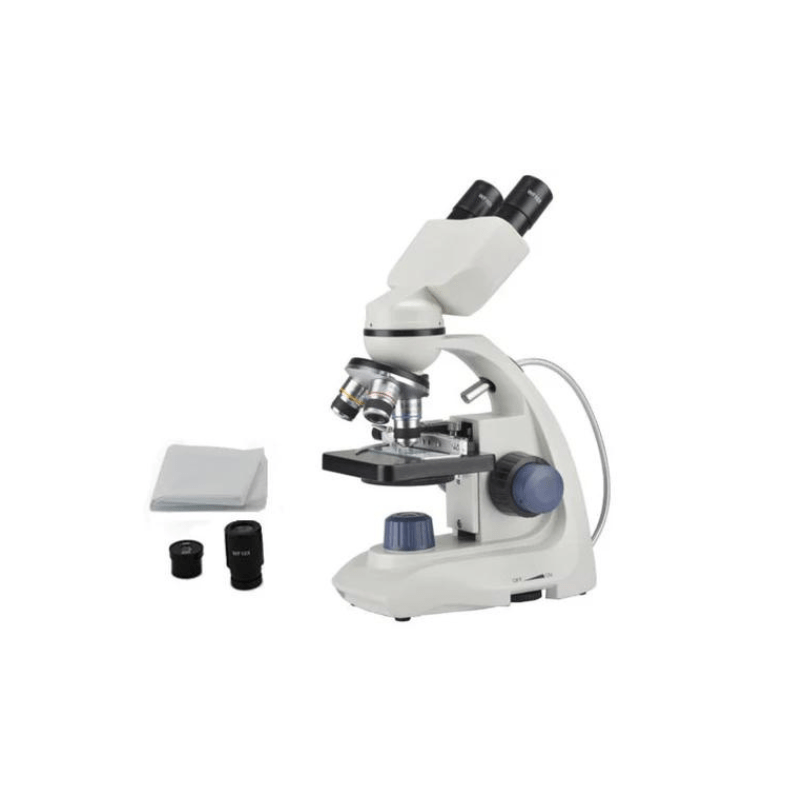

This microscope is an intermediate binocular head student microscope with a coaxial coarse and fine focusing knobs with a plain stage. The microscope is supplied as standard with two eyepiece, a WF10x/16mm and a WF25x/9mm eyepiece allowing for the microscope to have a total magnification of up to 1 000x magnification with the use of the 25x 9mm eyepiece. The microscope is fitted with 4x,10x,40x (Spring) achromatic objective, plan stage with clips and an LED light powered by external AC adaptor or by 3 x AA batteries.

Specification

  • Head: Binocular
  • Rotatable 360°
  • Eyepieces: WF10x/16 and WF25x/9
  • Objective: Triple, Achromatic 4x, 10x, 40x (Spring)
  • Total Magnification: 40x, 100x, 400x (WF10x/16) and 100x, 250x and 1 000x (WF25x/9)
  • Condenser: NA 0.65 Abbe condenser
  • Stage: Plain Stage 95*95mm
  • Coarse Coaxial & Fine Focusing
  • Illumination: LED lights Top and Bottom Brightness Adjustable
  • Powered by 3xAA Batteries or AC Power

Downloads

  • Download User Manual
  • Download Product Data sheet

Specifications

Optics
Head: Binocular, rotates 360°
Eyepieces: WF10x/16 and WF25x/9
Objectives: Triple, achromatic 4x, 10x, 40x (spring)
Total magnification: 40x, 100x, 400x with WF10x, or 100x, 250x, 1000x with WF25x
Condenser: Abbe N.A. 0.65
Stage and focus
Stage: Plain stage with clips, 95 x 95 mm

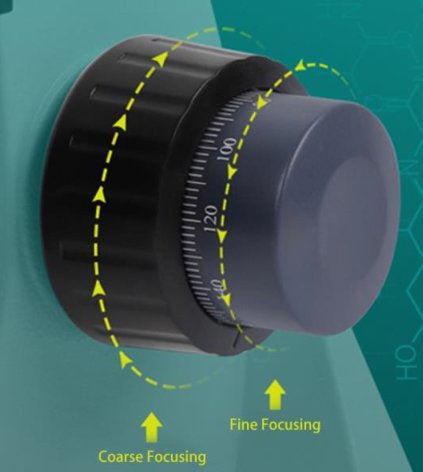

Focus: Coaxial coarse and fine
Light and power
Illumination: LED top and bottom, adjustable brightness
Power: 3 x AA batteries or AC adapter

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
Binocular head for longer practical sessions

Frequently Asked Questions

How does it reach 1000x?

Through the WF25x eyepiece with the 40x objective. There's no oil immersion lens, so 1000x makes the image bigger without adding detail. Most school work sits at 400x.

Is it binocular like a lab microscope?

The head is binocular, so both eyes stay open. The rest of the build is a school microscope: plain stage with clips, LED lighting and battery power.

Does it need a plug point?

Not necessarily. Three AA batteries run it, which suits classrooms short on plug points. An AC adapter is included.

How do I move the slide?

By hand. The clips hold the slide on a plain stage. If you want knob-driven movement, look at our models with a mechanical stage.
