Compound Monocular School Microscope

Name: Compound Monocular School Microscope
Brand: SmartLabs
Price: 4500.0 ZAR
Availability: InStock

NM-45SM

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty

Low stock! Only 2 left

R 4,500.00

Tax included. Shipping calculated at checkout.

Fast Nationwide Delivery
100% Quality Guaranteed
Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

Compound Monocular School Microscope

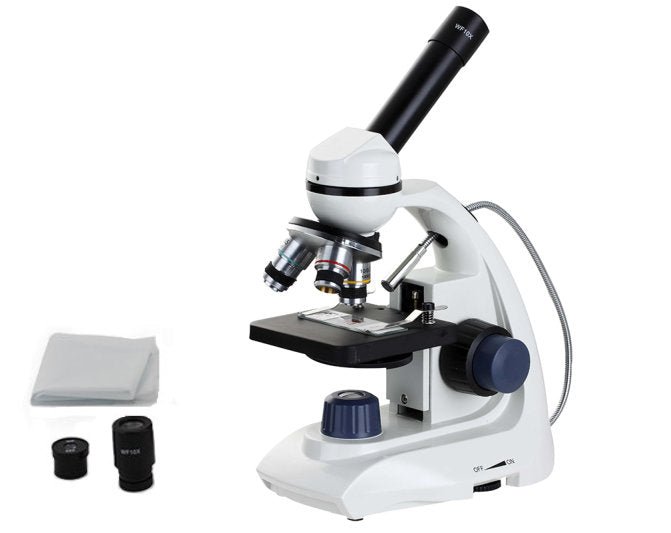

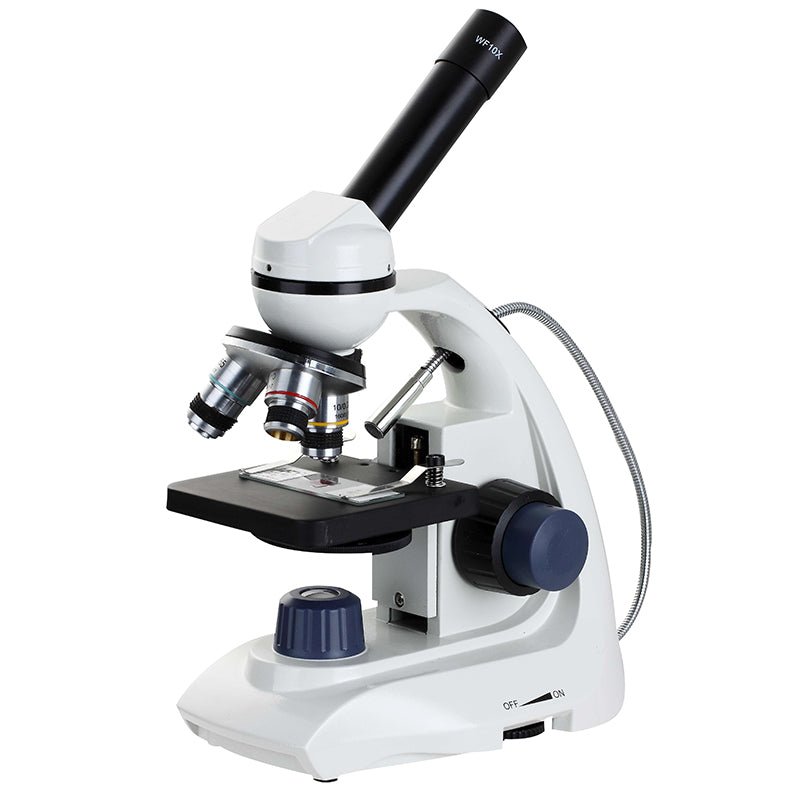

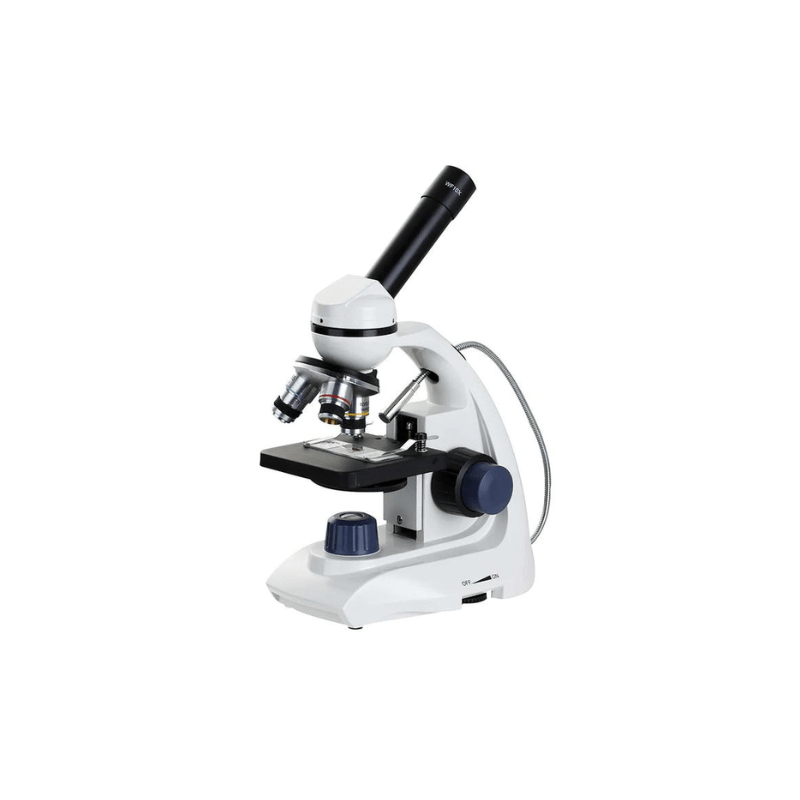

This microscope is an intermediate monocular head student microscope with a coaxial coarse and fine focusing knobs with a plain stage. The microscope is supplied as standard with two eyepiece, a WF10x/16mm and a WF25x/9mm eyepiece allowing for the microscope to have a total magnification of up to 1 000x magnification with the use of the 25x 9mm eyepiece. The microscope is fitted with 4x,10x,40x (Spring) achromatic objective, plan stage with clips and an LED light powered by external AC adaptor or by 3 x AA batteries.

Specification

Head: Monocular 45 °
Rotatable 360°
Eyepieces: WF10x/16 and WF25x/9
Objective: Triple, Achromatic 4x, 10x, 40x (Spring)
Total Magnification: 40x, 100x, 400x (WF10x/16) and 100x, 250x and 1 000x (WF25x/9)
Condenser: NA 0.65 Abbe condenser
Stage: Plain Stage 95*95mm

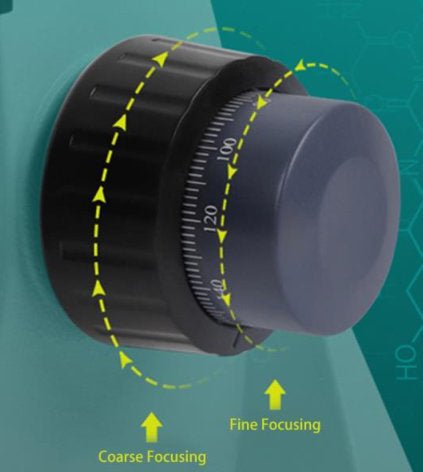

Coarse Coaxial & Fine Focusing
Illumination: LED lights Top and Bottom Brightness Adjustable
Powered by 3xAA Batteries or AC Power

Downloads

Download User Manual
Download Product Data sheet

Specifications

Optics
Head: Monocular, 45° inclined, rotates 360°
Eyepieces: WF10x/16 and WF25x/9
Objectives: Triple, achromatic 4x, 10x, 40x (spring)
Total magnification: 40x, 100x, 400x with WF10x, or 100x, 250x, 1000x with WF25x
Condenser: Abbe N.A. 0.65
Stage and focus
Stage: Plain stage with clips, 95 x 95 mm
Focus: Coaxial coarse and fine
Light and power
Illumination: LED top and bottom, adjustable brightness
Power: 3 x AA batteries or AC adapter

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
Meets Cambridge's minimum of two objectives and a 10x eyepiece

Frequently Asked Questions

Why are there two eyepieces?

The WF10x gives 40x, 100x and 400x. Swapping to the WF25x gives 100x, 250x and 1000x. The 25x is useful for a closer look, though without an oil immersion lens 1000x adds size rather than detail.

Which grades is it for?

Senior primary and high school classwork up to 400x. For matric Life Sciences practicals that need a true 1000x view, choose a model with a 100x oil objective.
