• Compound Student Microscope, Metal Body, 10x and 16x Magnification, Objectives: 4x, 10x, 40x(S)

Compound Student Microscope, Metal Body, 10x and 16x Magnification, Objectives: 4x, 10x, 40x(S)

NM-XSP02

Vendor: SmartLabs

Suited For: Education

Country of Origin: China

1 Year Warranty
Out of stock
R 1,850.00
R 1,850.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

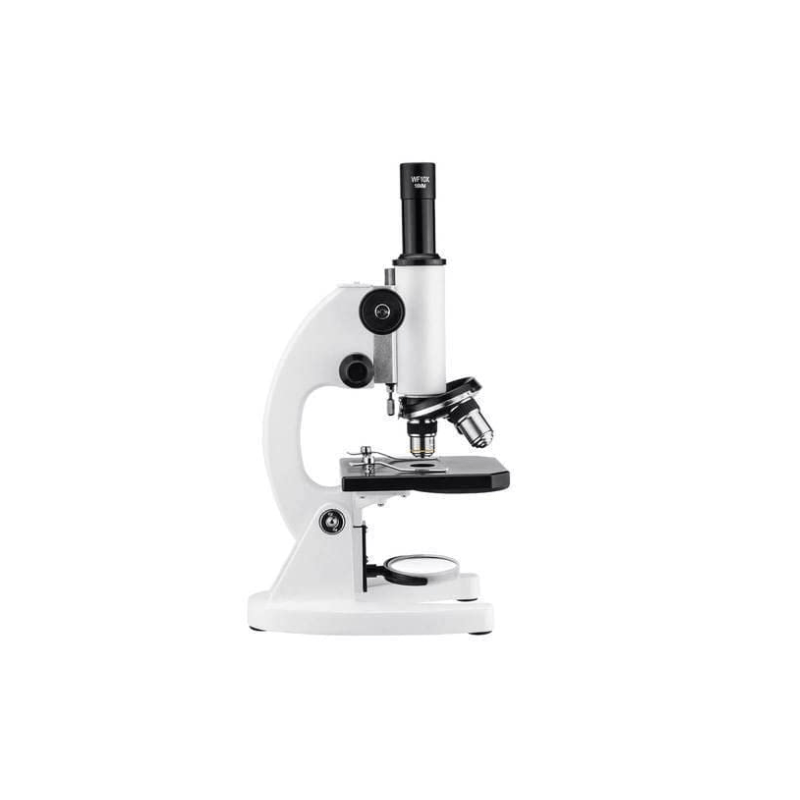

Compound Student Microscope. Specifically designed for educational settings, it enables clear observation and analysis. Compound Student Microscope with a inclinable metal body including coarse and fine motion, triple revolving nose piece, 10x and 16x Magnification and  4x, 10x, 40x(S) Objectives and a 110mm x 120mm working stage.

This compound student microscope is a robust educational tool featuring a durable, inclinable metal body for comfortable viewing at various angles.

Magnification System: Equipped with two eyepieces (10x and 16x) and three achromatic objectives (4x, 10x, and 40x-Spring), providing a versatile magnification range for biological observation.

Mechanical Components: Features a triple revolving nosepiece for easy objective swapping and a 110mm x 120mm working stage for specimen placement.

Focusing: Dual-motion system includes both coarse and fine focus knobs to ensure precise image clarity.

Specifications

Optics
Type: Compound, monocular
Eyepieces: 10x and 16x
Nosepiece: Triple, revolving
Objectives: Achromatic 4x, 10x, 40x (spring)
Total magnification: 40x, 100x, 400x (10x eyepiece) or 64x, 160x, 640x (16x eyepiece)
Build
Body: Metal, inclinable
Focus: Coarse and fine knobs
Stage: 110 x 120 mm

Common Uses

First microscope for home use or Grade 4-9 Natural Sciences
Basic specimen observation, not curriculum-graded practicals

Frequently Asked Questions

What magnification does it reach?

With the 10x eyepiece you get 40x, 100x and 400x. Switch to the 16x eyepiece for 64x, 160x and 640x.

Who is it for?

It's a basic first microscope for home use or Grade 4 to 9 Natural Sciences. It isn't built for Grade 10 to 12 practicals at 1000x.

Why a metal body?

A metal frame is heavier and more stable than a plastic one, and this arm tilts so learners can look through it at a comfortable angle.
