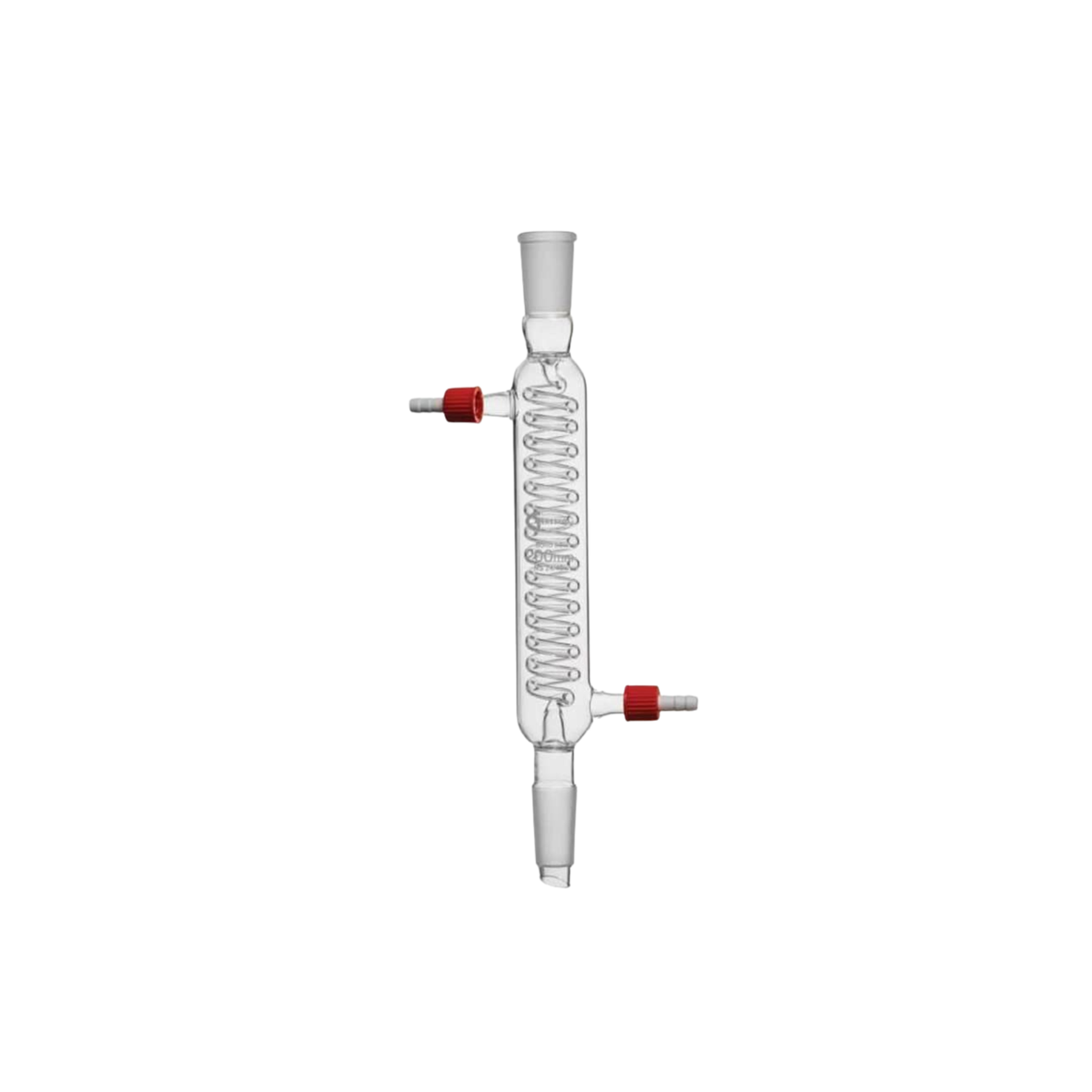

• Coil Condensers with PTFE Screw Thread

Coil Condensers with PTFE Screw Thread

OM-2001-100-02

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 10 left
R 284.05
R 284.05
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

A Spiral Condenser (Graham condenser) is used to cool and condense a gas back to a liquid, often as part of the process of chemical distillation. The piece consists of a coiled glass tube through which the gas travels. The coil is surrounded by a jacket of water that helps to cool the gas. The main advantages of a spiral heat exchanger are its high overall heat transfer coefficient, compact size for a given heat exchange area.

Recommended for use with low viscosity distillation processes such as alcohol with best results when assembled in an vertical orientation.

Design: Features a central spiral glass coil inside an outer jacket. The large surface area of the coil optimizes heat exchange.

Joints: Precision-ground interchangeable ground glass joints ensure a vacuum-tight fit.

Usage Best Practices
  • Coolant Flow: Always connect the water inlet to the lower glass connector and the outlet to the upper connector. This ensures the jacket is completely filled with coolant, maximizing efficiency.
  • Orientation: For best results in low-viscosity processes like alcohol distillation, use the condenser in a vertical orientation.
  • Safety: While these are autoclavable, ensure all tubing is removed and joints are not seized before sterilization.

Specifications

  • Material: Clear 3.3 Borosilicate Glass
  • Joint Size: Select from drop down
  • Length: Select from drop down (Effective Length (mm)).
  • Tube Connector: PTFE Thread Connector
  • Stem: Stem with Drip-Tip
  • Standard: ASTM E-438
  • Brand: OMSONS
  • Product of India

Specifications

Material: Clear 3.3 Borosilicate Glass
Standard: ASTM E-438
