• Copper Bare Wire

Copper Bare Wire

PH1058I

Vendor: SmartLabs

Low stock! Only 2 left
R 300.00
R 300.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
  • 5 stars: 1 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
M
Merle Maselle

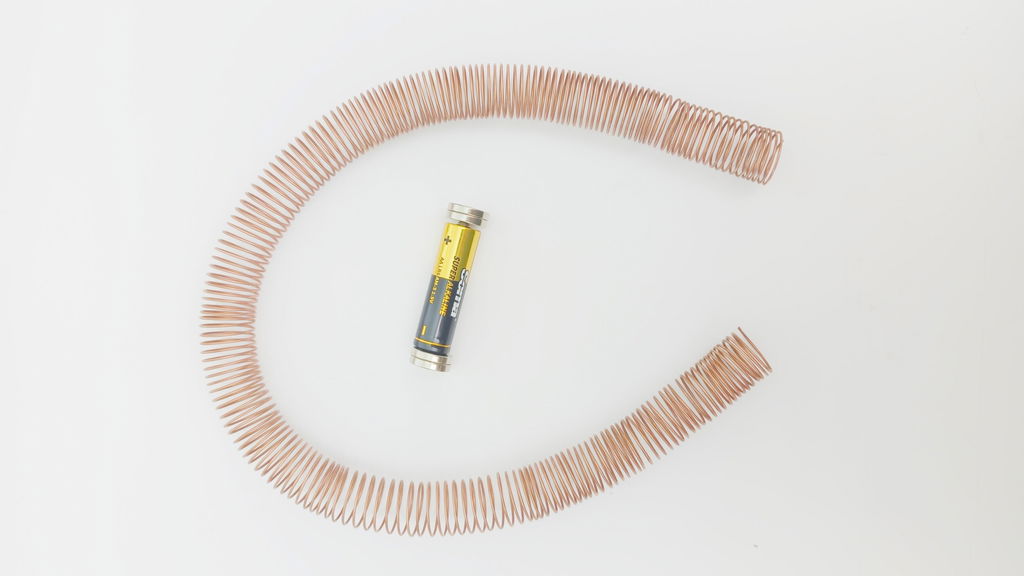

I had an issue with wire when it arrived because it was tarnished, but once I cleaned it, my project worked out perfectly. The staff were extremely helpful and accommodating.

Merle Maselle review photo

Have a question about this product?

Send us a message and we'll get back to you.

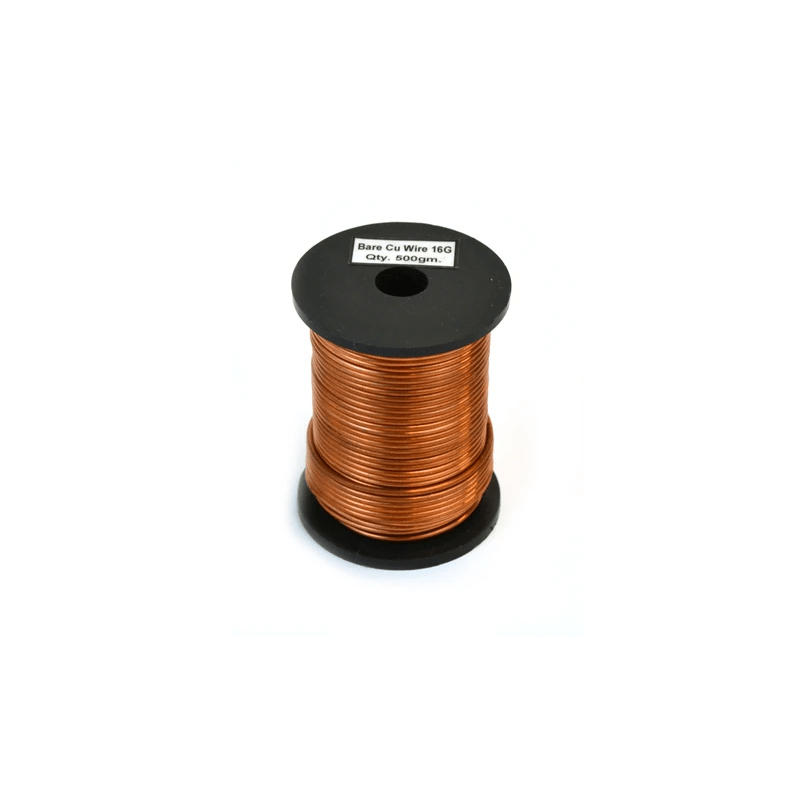

This bare copper wire comes on 250g reels in ten thicknesses, from thick 14 SWG (2.00mm) down to thin 32 SWG (0.28mm). There's no insulation on it, so you can clip onto it anywhere along its length, which is exactly what you want for school electricity and resistance experiments.

Wire thickness is usually given as a Standard Wire Gauge, or SWG. The higher the gauge number, the thinner the wire, and a thinner wire has more resistance to the flow of current. Run the same circuit with a few different gauges and learners can see for themselves how the diameter of a wire changes its resistance.

Gauge (SWG) Diameter (mm) Product code
14 SWG 2.00 PH1058A
16 SWG 1.60 PH1058B
18 SWG 1.25 PH1058C
20 SWG 0.90 PH1058D
22 SWG 0.71 PH1058E
24 SWG 0.56 PH1058F
26 SWG 0.45 PH1058G
28 SWG 0.40 PH1058H
30 SWG 0.31 PH1058I
32 SWG 0.28 PH1058J

Each reel holds 250g of wire. Choose your gauge from the drop-down.
