Digital LCD Binocular Microscope, 1000x

NM-105-10x

Vendor: SmartLabs

Country of Origin: China

1 Year Warranty
Out of stock
R 15,950.00
R 15,950.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

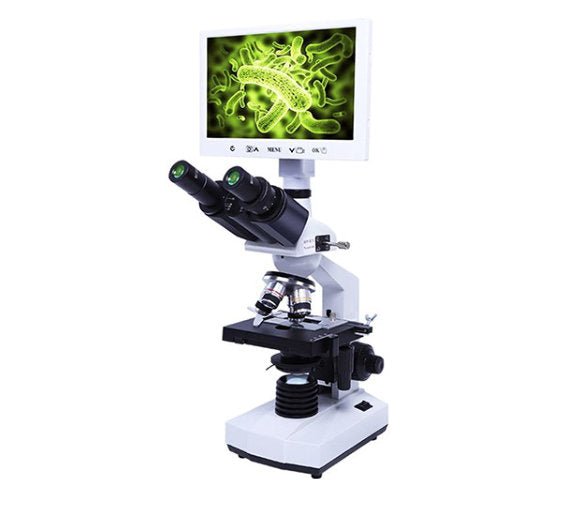

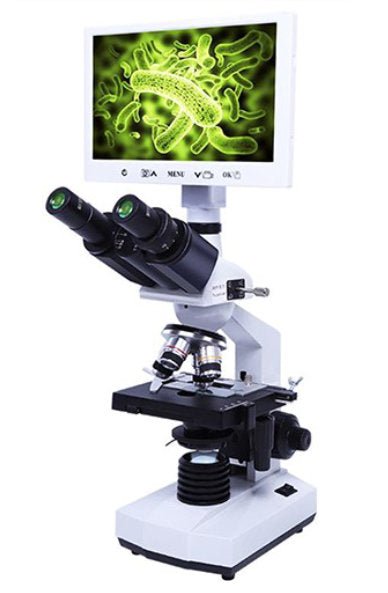

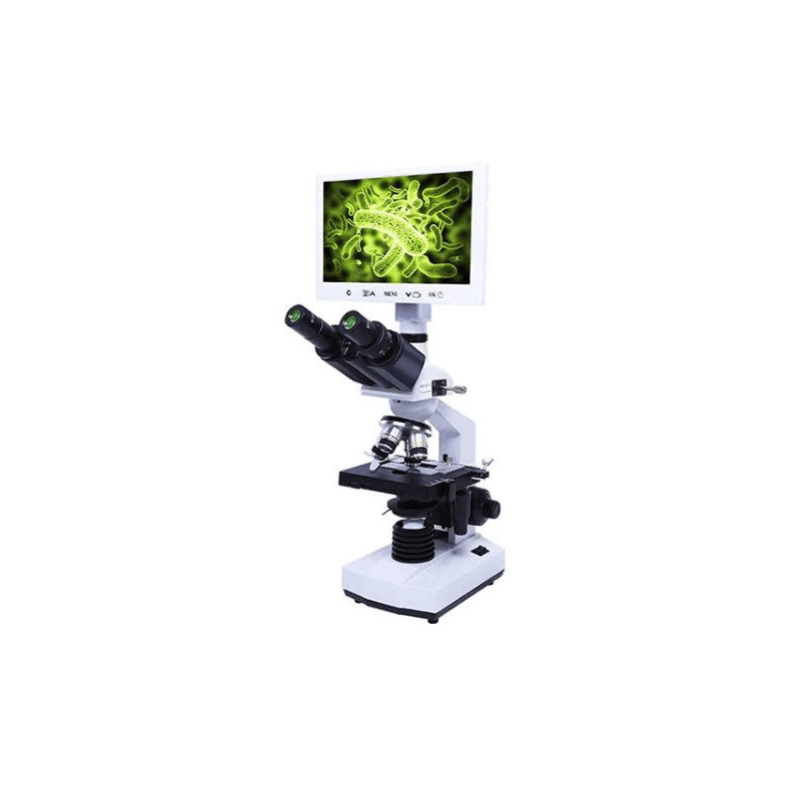

Digital LCD Binocular Compound Light Microscope, 1000x

This general use microscope has a double layer mechanical stage with a trinocular eyepiece head with a 7” LCD screen, and uses a halogen lamp for illumination. The microscope is fitted with four achromatic objectives, 4x, 10x, 40x and 100x (oil), allowing the specimen to be magnified up to a total magnification of 1000x. The double layer stage allows for ease of movement, and the microscope has a coaxial coarse and fine adjustment focusing range of 20mm. The phototube allows for the addition of a camera or digital screen.

Specification

  • Head: Trinocular Head, 30°Inclined, 360°Rotatable
  • LCD Camera: 7″ IPS LCD Screen Resolution 800×480
  • Camera Sensor: 1/2.75″ CMOS
  • Resolution: 2.0M 1920x1080p, 0.3x C-Mount
  • Pixel Size: 2.8×2.8um
  • Frame Rate: 30 fps
  • Output: USB 2.0, Output to LCD, PC
  • Storage: Micro SD Card Slot, Max 32G
  • Eyepiece: WF10x
  • Nosepiece: Quadruple Nosepiece
  • Objective: Achromatic 4x,10x,40x(s), 100x(s, oil)
  • Total Magnification: 40x, 100x, 400x, 1000x
  • Double layer mechanical stage, size: 115 x 125mm
  • Coaxial coarse and fine adjustment, focusing range 20mm
  • N.A 1.25 Abbe condenser & Iris diaphragm Filter
  • 6V 20W Halogen Lamp
  • AC Input 220V
  • Physical Dimensions: 36cm (H) x 19cm (W) x 13.5cm (L)

Downloads

Specifications

Screen and camera
LCD: 7 inch IPS, 800 x 480
Camera sensor: 1/2.75 inch CMOS, 2.0 MP, 1920 x 1080
Frame rate: 30 fps
Outputs: USB 2.0, LCD, PC
Storage: Micro SD card, up to 32 GB
Optics
Head: Trinocular, 30° inclined, rotates 360°
Eyepiece: WF10x
Nosepiece: Quadruple
Objectives: Achromatic 4x, 10x, 40x (spring), 100x (spring, oil)
Total magnification: 40x, 100x, 400x, 1000x
Condenser: Abbe N.A. 1.25 with iris diaphragm and filter
Stage and focus
Stage: Double-layer mechanical stage, 115 x 125 mm
Focus: Coaxial coarse and fine, 20 mm range
Power and size
Light: 6 V 20 W halogen lamp
Power: 220 V AC mains
Dimensions: 36 cm high x 19 cm wide x 13.5 cm deep

Common Uses

Top-tier school demonstration unit for CAPS, IEB and Cambridge Life Sciences
Whole-class viewing via built-in LCD screen

Frequently Asked Questions

Can the class watch on the screen while someone uses the eyepieces?

Yes. The screen sits on the third tube of a trinocular head, so the eyepieces stay usable while the LCD shows the same specimen.

Can I save what I see?

Photos and 1080p video save to a micro SD card of up to 32 GB. USB 2.0 sends the live view to a computer.

Does it reach a true 1000x?

Yes, through the eyepieces with the 100x oil objective. Remember the drop of immersion oil.

Is the screen good enough to mark work from?

It's a 7 inch 800 x 480 screen with a 2 MP camera. Fine for showing a specimen and recording it. For detailed marking, look through the eyepieces.
