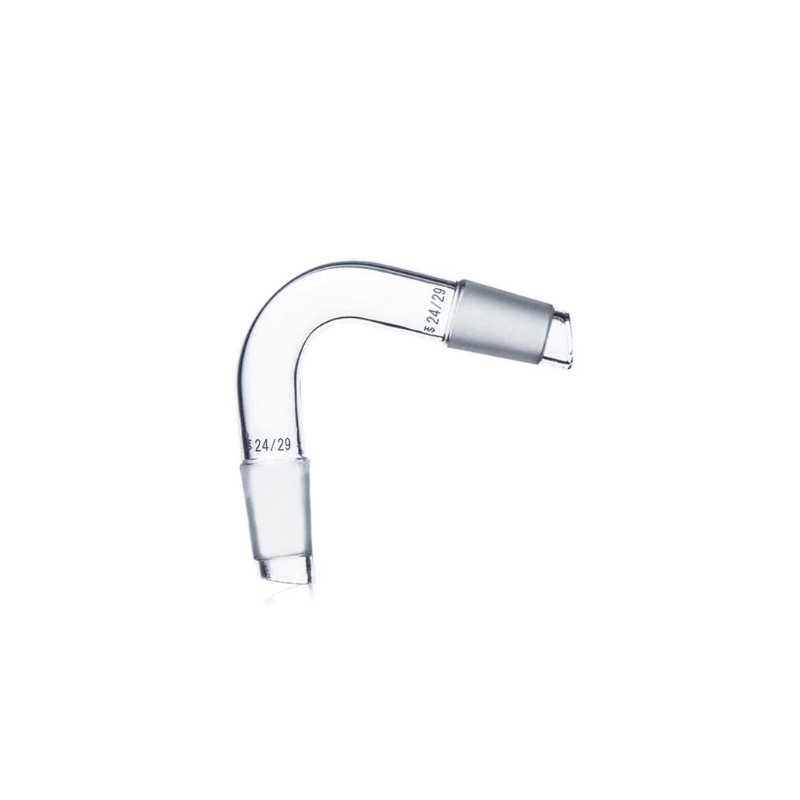

• Distilling Head 75 Bent Cone to Cone

Distilling Head 75 Bent Cone to Cone

CNW-5038-24/24

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 2 left
R 125.00
R 125.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

That item is a 75° Distillation Adapter (often called a Still Head or Connecting Adapter). It is the "bridge" in a standard distillation setup, positioned between the vertical boiling flask and the sloped condenser.

Key Technical Specifications
  • Angle: 75-degree bend, which provides the optimal slope for vapor to travel from the flask into the condenser.
  • Joints:
    • Bottom (Cone): Connects to the boiling flask (e.g., 24/29 or 19/26).
    • Side (Cone): Connects to the condenser.
  • Material: High-expansion 3.3 Borosilicate Glass for high-heat resistance.

Core Functions
  • Vapor Path: It directs rising hot vapors toward the cooling zone of the condenser.
  • Seal Integrity: Precision ground joints ensure a leak-proof system, preventing loss of product or exposure to fumes.

Pro-Tips for Use
  • Joint Grease: Always apply a thin layer of vacuum grease to the joints before assembly to prevent "freezing" (stuck joints) after heating.
  • Clamping: Always clamp the adapter itself or the flask immediately below it to ensure the weight of the condenser doesn't tip the setup.

Specifications:

  • Material: 3.3 Borosilicate glass
  • Neck: Ground glass joint (socket, male) with drip tip
  • Joint Sizes: 19/26, 24/29, 29/32 (Select an option)
  • Angle: 75-degree bend
  • Brand: NONE
  • Product of China
