Adapter, Recovery Vertical Adapter
SKU
Original price
R 205.00
-
Original price
R 305.00
Original price
R 205.00
R 205.00
-
R 305.00
Current price
R 205.00
Availability:
Only 5 left!
Availability:
Only 5 left!
Availability:
Only 4 left!

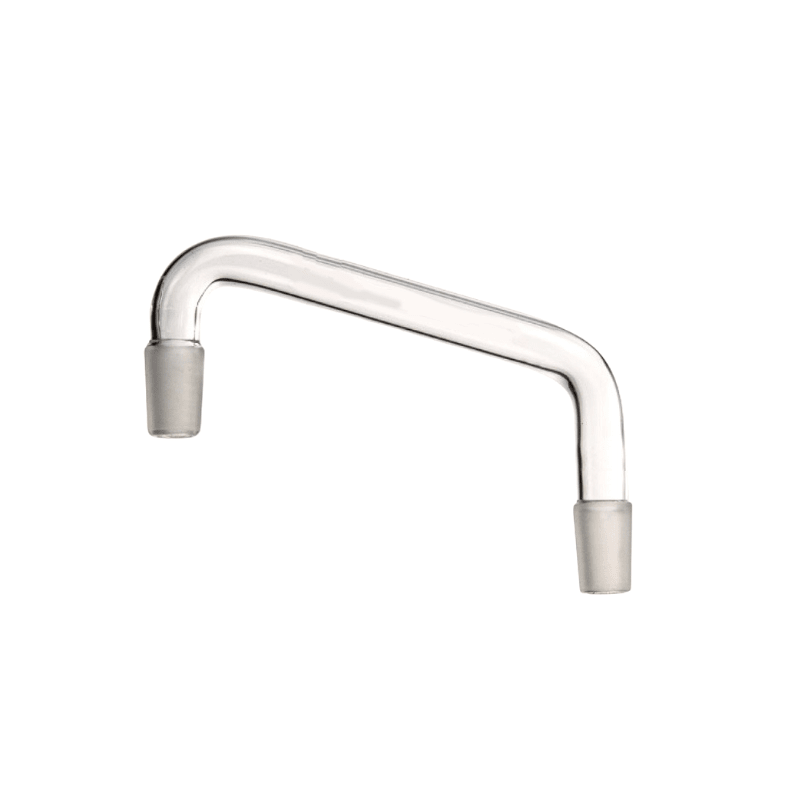

A Vertical Recovery Adapter (also known as a Vertical Still Head or Vertical Recovery Bend) is a glass component designed for laboratory distillation assemblies where a vertical configuration is required to guide vapours toward a condenser. It is primarily used for solvent recovery, vapour return, and the controlled collection of condensed liquids.
Key Features
- Design: Features a vertical orientation that allows vapours or liquids to descend efficiently and be redirected safely into receiving vessels.
- Material: Manufactured from high-quality Borosilicate Glass 3.3, providing high thermal shock and chemical resistance.
- Joints: Equipped with precision ground-glass joints (typically Standard Taper) to create leak-free seals, which are critical for maintaining pressure or vacuum conditions.
- Drip Tip: Many models include an integrated drip tip to ensure precise liquid handling and prevent "wicking" back into the ground joint.
Core Applications
- Solvent Recovery: Ideal for large-scale solvent reclaim in teaching, research, and industrial laboratories.
- Distillation Assemblies: Acts as a bridge between the boiling flask and the rest of the apparatus in setups where space or equipment requires a vertical alignment.
- Reflux Systems: Facilitates the return of condensed vapours to the boiling flask during reflux experiments.
- Essential Oil Extraction: Used in specific extraction kits to guide vapours from biomass flasks into cooling zones.
Common Joint Sizes & Pricing
Typical joint sizes for these adapters include:
- 14/23
- 19/26
- 24/29
- 29/32
Specifications:
- Material: 3.3 Borosilicate glass
- Neck: Ground glass joint (socket)
- Joint Sizes: 19/26, 24/29, 29/32 (Select an option)
- Brand: NONE
- Product of China
