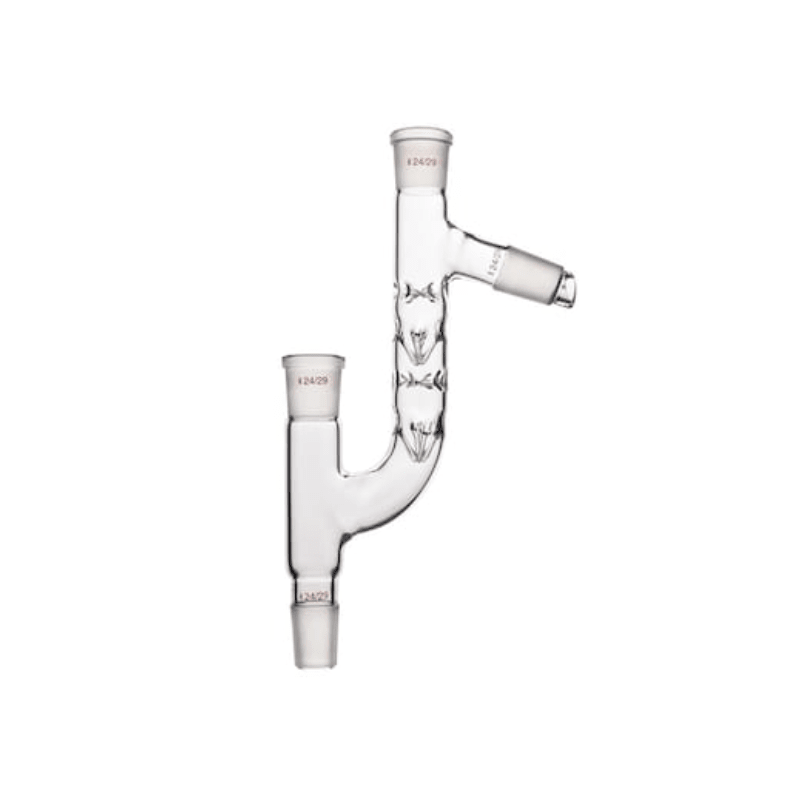

• Distilling Head, With Vigreux - style Tube and Claisen - Style, Standard Ground Joints

Distilling Head, With Vigreux-style Tube and Claisen-Style, Standard Ground Joints

CNW-5046-14/14/19

  • Borosilicate

Vendor: SmartLabs

Suited For:

Country of Origin:

Low stock! Only 2 left
R 260.00
R 260.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

A Vigreux Distilling Head (commonly referred to as a "thorn tube" head) is a specialized piece of fractional distillation glassware. It combines a standard distilling head with an integrated.






Key Features
  • Design: A vertical tube containing multiple rows of downward-pointing glass "thorns" or spikes, typically with a 75° side-arm for condenser connection.
  • Material: High-grade Borosilicate Glass 3.3, essential for resisting the high thermal gradients of fractional distillation.
  • Joints: Usually features three precision-ground joints:
    • Bottom (Cone): Connects to the boiling flask.
    • Side-arm (Cone): Connects to the condenser.
    • Top (Socket): For a thermometer adapter to monitor head temperature.
  • Effective Length: Common "thorned" sections range from 100 mm to 300 mm depending on the required separation efficiency.

Core Applications
  • Fractional Distillation: Used to separate liquids with close boiling points. The thorns provide a "cold" surface for less volatile vapors to condense and drip back (reflux) while allowing more volatile vapors to pass through.
  • High-Purity Solvent Recovery: Ensures that only the purest vapor reaches the condenser, leaving impurities in the boiling flask.
  • Space-Saving Setup: Combines the fractionating column and the distilling head into a single compact unit.

Usage Pro-Tips
  • Insulation: For maximum efficiency, wrap the "thorned" vertical section in aluminum foil or a heating jacket to maintain a steady temperature gradient.
  • Vertical Alignment: Ensure the tube is perfectly vertical so the condensed liquid (reflux) can flow evenly over the thorns back into the flask.
  • Thermometer Placement: Ensure the thermometer bulb is positioned exactly at the junction of the side-arm to measure the vapor temperature accurately just before it enters the condenser.

Specifications:

  • Material: 3.3 Borosilicate glass
  • Neck: Ground glass joint (socket)
  • Joint Sizes: 19/26, 24/29, 29/32 (Select an option)
  • Brand: NONE
  • Product of China
