• Double Angular Necked Flask

Double Angular Necked Flask

FL3865-A

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 5 left
R 225.00
R 225.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

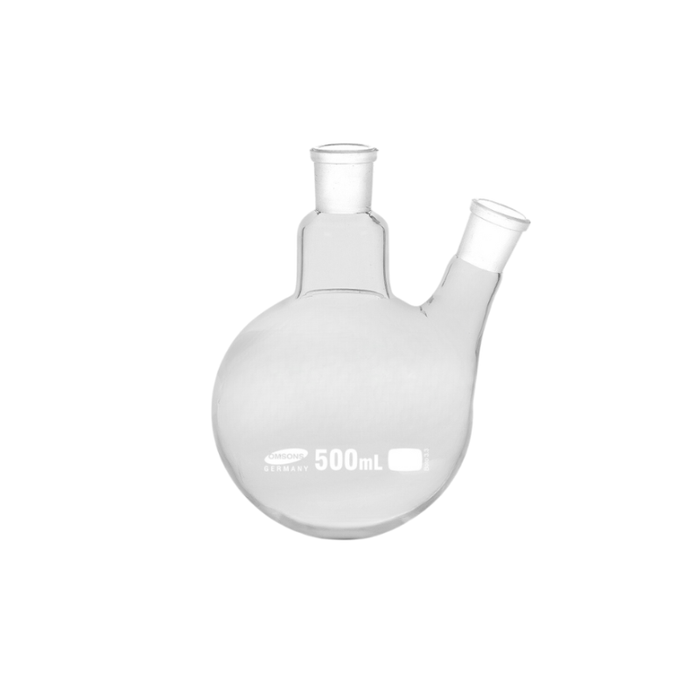

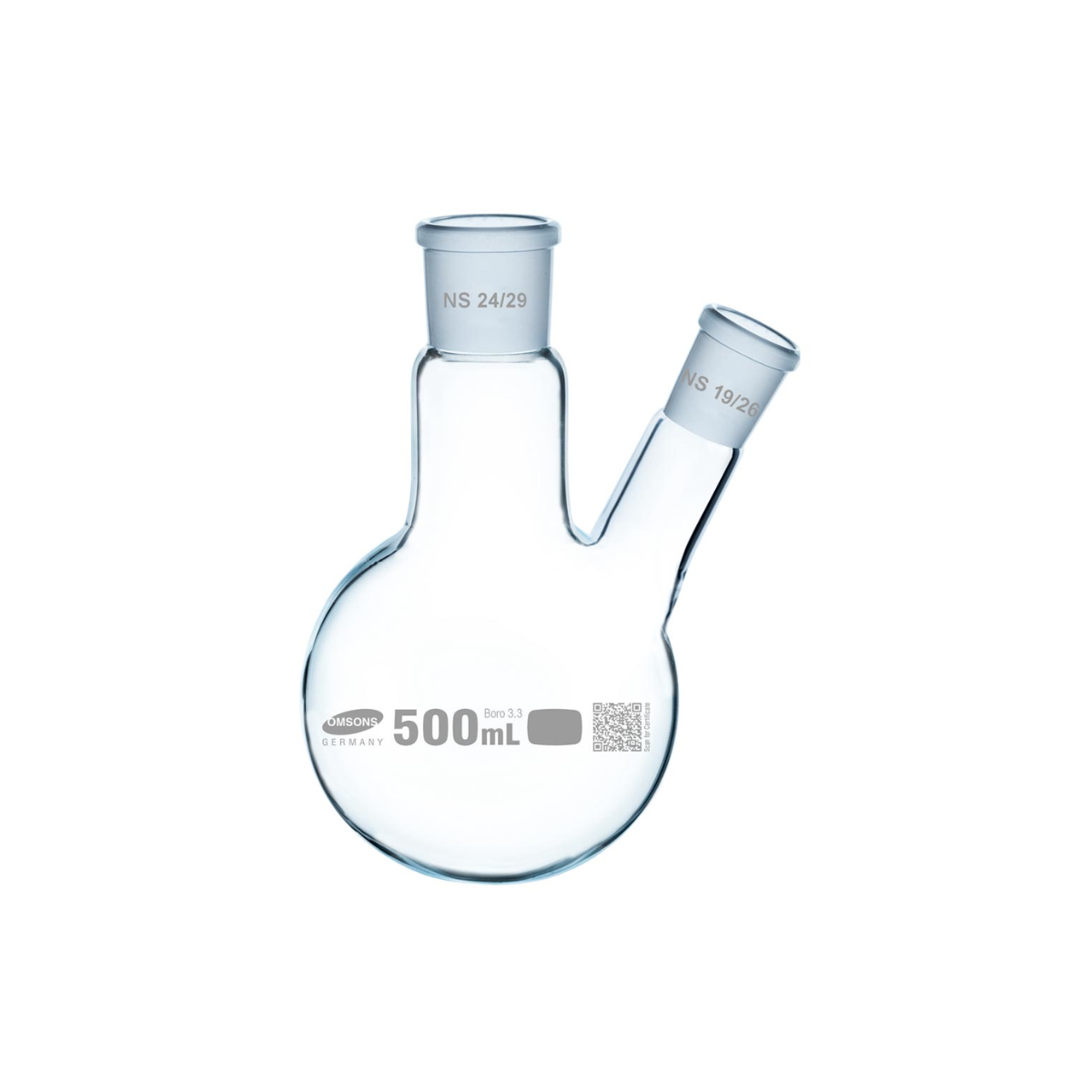

This double necked flask (two neck boiling flask, or two neck round-bottom flask) is made of borosilicate glass. The joint neck allows connection to distillation apparatus or other glassware adapters, and the angled neck is useful for refilling or inserting a thermometer with a thermometer adapter. We recommend using Glassware Joint Clips to hold glassware connectors, adapters and distillation connectors firmly in place while in use.

Please select the appropriate volume and joint size from the drop down menu.

It's made from high-duty Borosilicate 3.3 glass for excellent thermal shock resistance, with interchangeable ground glass conical joints (sockets) for vacuum-tight connections. Capacities commonly range from 100ml up to 20,000ml (20L), with typical joint size combinations such as a 24/29 centre with 19/26 side joints.

OMSONS offers two neck orientations. Angular necks have a vertical centre neck with the two side necks 180° apart and inclined at a 20° angle, ideal for adding reagents via dropping funnels or inserting thermometers without interfering with a central condenser. Parallel necks have the centre neck and both side necks vertical and parallel, often preferred for mechanical stirring where multiple vertical shafts or probes are needed.

The three necks support a range of uses. The 20° tilt of the side neck gives extra room to attach bulky equipment, like a large dropping funnel, without it hitting apparatus in the centre neck. The angled side neck also makes it easier to add liquids or powders manually while the flask sits under a fume hood or inside a heating mantle, and is the preferred design for inserting thermometers or gas inlet tubes, since the angle lets the probe reach toward the centre of the flask's boiling liquid.

When using a mechanical overhead stirrer, always use the centre neck for the stirring shaft, and keep the angular side necks for stationary items like gas inlets or temperature probes to avoid interference with the rotating shaft.

Specification

  • Design: Angular Two-Neck
  • Material: Clear 3.3 Borosilicate Glass
  • Size: Select from drop down
  • Joint Size: Select from drop down
  • Stopper: Not supplied
  • Printing: White enamel markings (acid and scratch-resistant)
  • Brand: OMSONS
  • Product of India

Available Stoppers

Centre Socket: 19/26

  • Solid Rubber stopper for 19/26: RS9-S 17x20x26mm
  • 1 Hole Rubber stopper for 19/26: RS9-1H 17x20x26mm
  • 2 Hole Rubber stopper for 19/26: RS9-2H 2Hole 17x20x26mm
  • Glass Stopper 19/26: GRS6860/3 Glass Stopper 19/26

Centre Socket: 24/29

  • Solid Rubber stopper for 24/29: RS13-S 23×26.5x28mm
  • 1 Hole Rubber stopper for 24/29: RS13-1H 23×26.5x28mm
  • 2 Hole Rubber stopper for 24/29: RS13-2H 2Hole 23×26.5x28mm
  • Glass Stopper 24/29: GRS6860/4 Glass Stopper 24/29

Side Socket: 14/23

  • Solid Rubber stopper for 14/23: RS7-S 13x16x24mm
  • 1 Hole Rubber stopper for 14/23: RS7-1H 13x16x24mm
  • 2 Hole Rubber stopper for 14/23: RS7-2H 13x16x24mm
  • Glass Stopper 14/23: GRS6860-2

Specifications

Material: Borosilicate 3.3 Glass
Capacity: 100mL to 20000mL (20L)
Typical Joint Sizes: 24/29 Center with 19/26 Side Joints
