• Essential Oil Determination Apparatus (Clevenger Apparatus)

Essential Oil Determination Apparatus (Clevenger Apparatus)

OM-3047-01

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 4 left
R 1,450.00
R 1,450.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

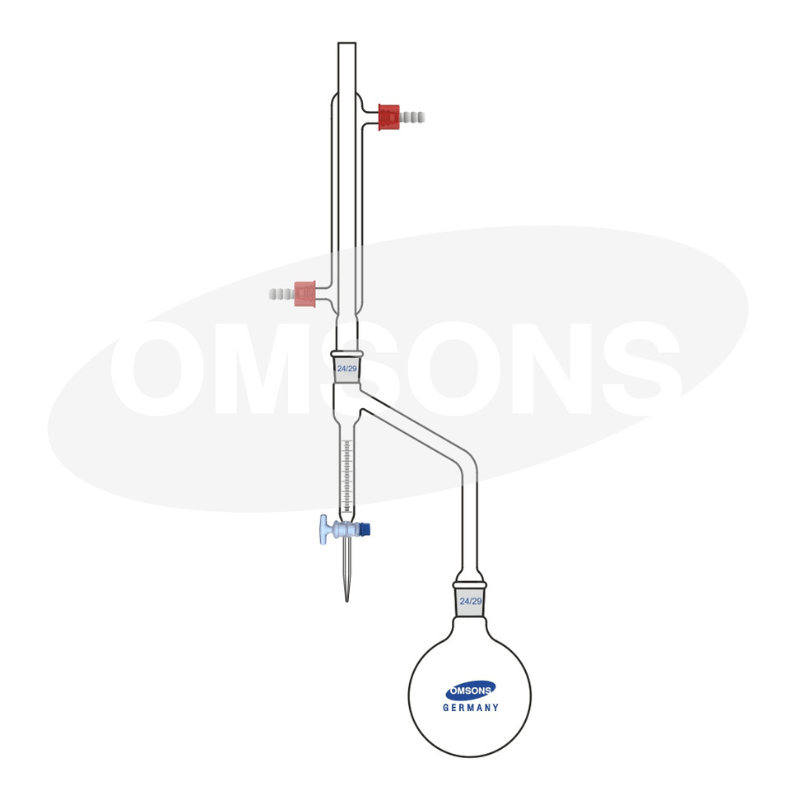

The OMSONS Essential Oil Determination Apparatus (Clevenger Apparatus) for oils heavier than water  is a precision distillation kit designed to extract and quantify volatile oils that sink in water.

Components key Features
This complete assembly is manufactured from high-quality Borosilicate 3.3 glass and typically includes:
  • Boiling Flask (1000 ml): A round-bottom flask with a 24/29 ground glass joint for robust heating.
  • Liebig Condenser (300 mm): Featuring 24/29 joints to facilitate effective vapor cooling.
  • Heavier-than-Water Receiver (5 ml): A specialized graduated trap with a stopcock. Unlike the "light" version, this design allows for the automatic return of the lighter water phase to the boiling flask while the dense oil collects at the bottom.

How it Works
  1. Steam Distillation: The plant sample is boiled in the 1000 ml flask, carrying volatile oils upward as steam.
  2. Condensation: Vapors are cooled in the 300 mm Liebig condenser and fall into the graduated receiver.
  3. Automatic Separation: Because these specific oils are denser than water, they settle at the bottom of the trap. The lighter water phase overflows through a return arm back into the boiling flask for continuous extraction.
  4. Measurement: The volume of the collected oil is read directly from the graduated scale on the receiver.



Spesification

  • Design: Essential Oil Determination Apparatus (Clevenger Apparatus For oils heavier than water)
  • Material: Clear 3.3 Borosilicate Glass
  • Size: 1000mL Flask, Receiver Capacity (mL): 25mL PTFE Stopcock
  • Joints: NS 24/29
  • Printing: White enamel markings (acid and scratch-resistant).
  • Brand: OMSONS
  • Product of India



Specifications

Flask Capacity: 1000mL
Condenser Length: 300mm
Joint Size: 24/29
Receiver Capacity: 5mL
Material: Borosilicate 3.3 Glass
