• Essential Oil Determination Apparatus (Clevenger Apparatus)

Essential Oil Determination Apparatus (Clevenger Apparatus)

OM-3048-01

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 4 left
R 1,450.00
R 1,450.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

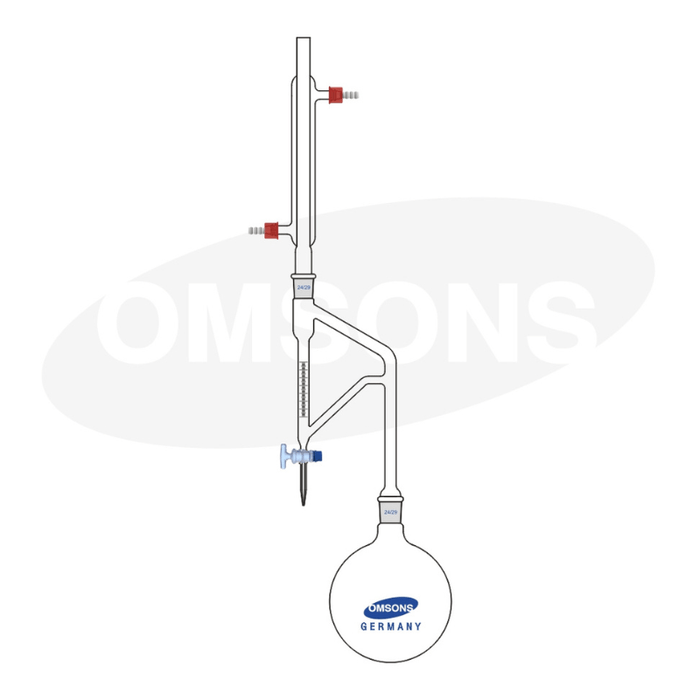

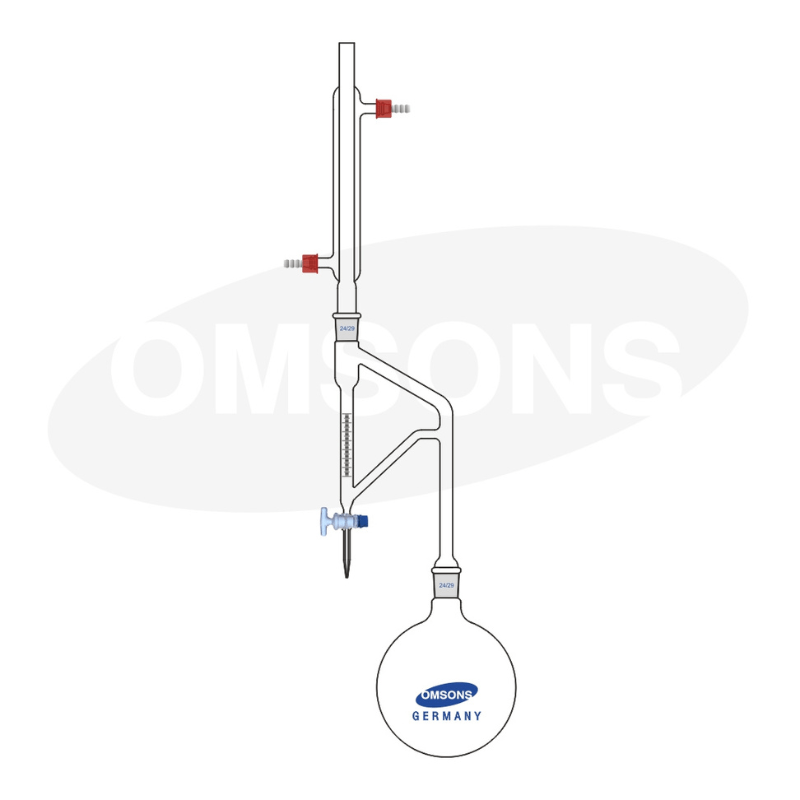

The OMSONS Essential Oil Determination Apparatus (Clevenger Apparatus) for oils lighter than water  is a specialized laboratory assembly used to extract and measure volatile oils from plant materials via steam distillation.

Components and Key Features

Based on your request, this complete assembly typically includes:
  • Boiling Flask: 1000 ml Round Bottom Flask with a 24/29 ground glass joint.
  • Condenser: 300 mm Liebig Condenser with a matching 24/29 joint.
  • Clevenger Receiver/Extractor: A graduated trap (usually 5 ml or 10 ml) specifically designed for "light" oils.
    • Light Return Mechanism: It features a return arm that allows the heavier water phase to automatically flow back into the boiling flask while the lighter essential oil collects on top.
  • Material: Made from high-quality Borosilicate 3.3 heat-resistant glass with low thermal expansion.

How it Works
  1. Extraction: Steam carries volatile oil vapors from the boiling plant material up into the assembly.
  2. Condensation: The vapors are cooled in the Liebig condenser and drip into the graduated receiver.
  3. Separation: Since the oil is less dense than water, it forms a distinct top layer. The water below overflows through a side conduit back into the flask for continuous recycling.
  4. Measurement: After distillation is complete, the oil volume can be read directly from the graduated receiver.

Spesification

  • Design: Essential Oil Determination Apparatus (Clevenger Apparatus For Oil lighter than Water.)
  • Material: Clear 3.3 Borosilicate Glass
  • Size: 1000mL Flask, Receiver Capacity (mL): 25mL PTFE Stopcock
  • Joints: NS 24/29
  • Printing: White enamel markings (acid and scratch-resistant).
  • Brand: OMSONS
  • Product of India



Specifications

Flask Capacity: 1000mL
Condenser Length: 300mm
Joint Size: 24/29
Receiver Capacity: 5mL or 10mL
Material: Borosilicate 3.3 Glass
