• Essential Oil Determination Unit, Clevenger Type, Glass Boro 3.3 - 1000mL FLask

Essential Oil Determination Unit, Clevenger Type, Glass Boro 3.3 - 1000mL FLask

OM-3046-01

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 1 left
R 1,450.00
R 1,450.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

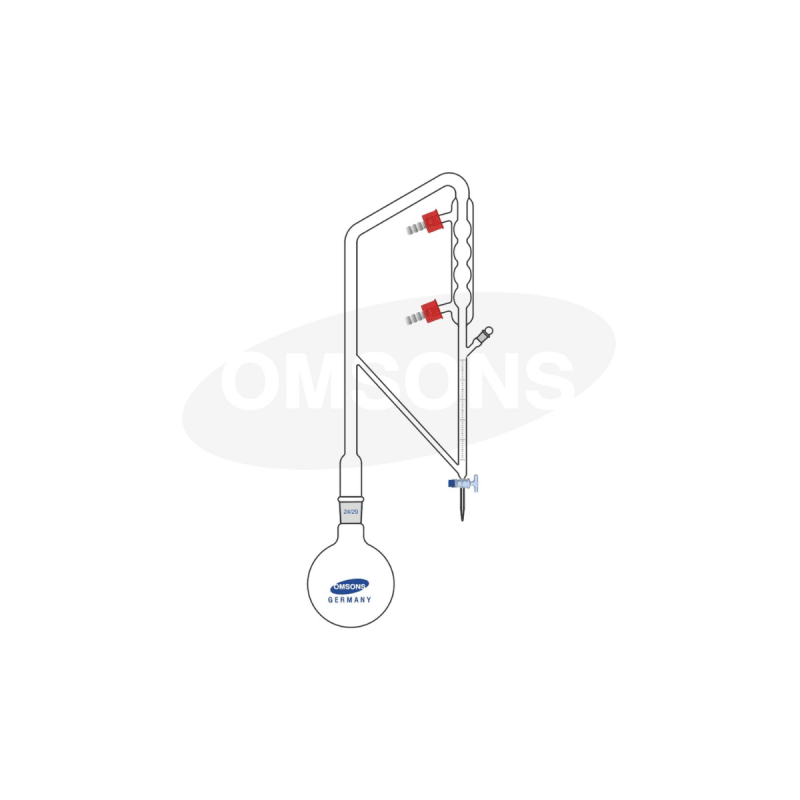

The OMSONS Clevenger Apparatus (Essential Oil Determination Unit) is a specialized laboratory assembly used to extract volatile oils from plant material via steam distillation. It is manufactured from Borosilicate 3.3 glass, which is essential for withstanding the high temperatures and thermal stress of long extraction cycles.

How the System Works
The unit operates on the principle of continuous steam distillation. Plant material is boiled in a flask, and the steam carries the essential oils into a condenser. The mixture then drips into a specialized graduated receiver that automatically separates the oil from the water.

Standard 1000ml Assembly Specifications
  • Flask: 1000 ml Round Bottom Flask (Joint: 24/29).
  • Condenser: 300 mm Liebig Condenser (Joint: 24/29).
  • Material: Borosilicate 3.3 (Heat & Chemical Resistant).
  • Graduation: Typically a 5 ml or 10 ml receiver with 0.1 ml subdivisions.
Common Spare Parts
Since these are modular systems, individual components are often sold separately:
  • Clevenger Receiver/Trap: The most critical part; specific to "Light" or "Heavy" oils.
  • Liebig Condenser: 300 mm or 400 mm lengths are standard.
  • Boiling Flasks: Available from 250 ml to 5000 ml.

Spesification

  • Design: Essential Oil Determination Apparatus Clevenger Type (Vertical Tube combined with Condenser and Measuring Tube with Stopcock.)
  • Material: Clear 3.3 Borosilicate Glass
  • Size: 1000mL Flask, Receiver Capacity (mL): 25mL PTFE Stopcock
  • Joints: NS 24/29
  • Printing: White enamel markings (acid and scratch-resistant).
  • Brand: OMSONS
  • Product of India



Specifications

Flask Capacity: 1000mL
Condenser Length: 300mm
Joint Size: 24/29
Receiver Capacity: 25mL
Graduation: 5mL or 10mL Receiver with 0.1mL Subdivisions
Material: Borosilicate 3.3 Glass
