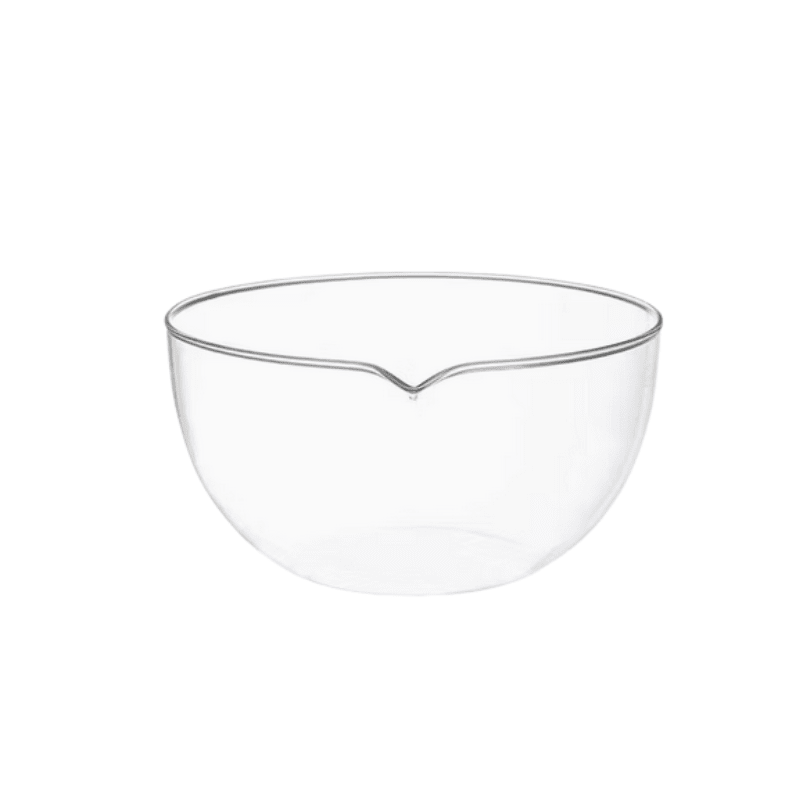

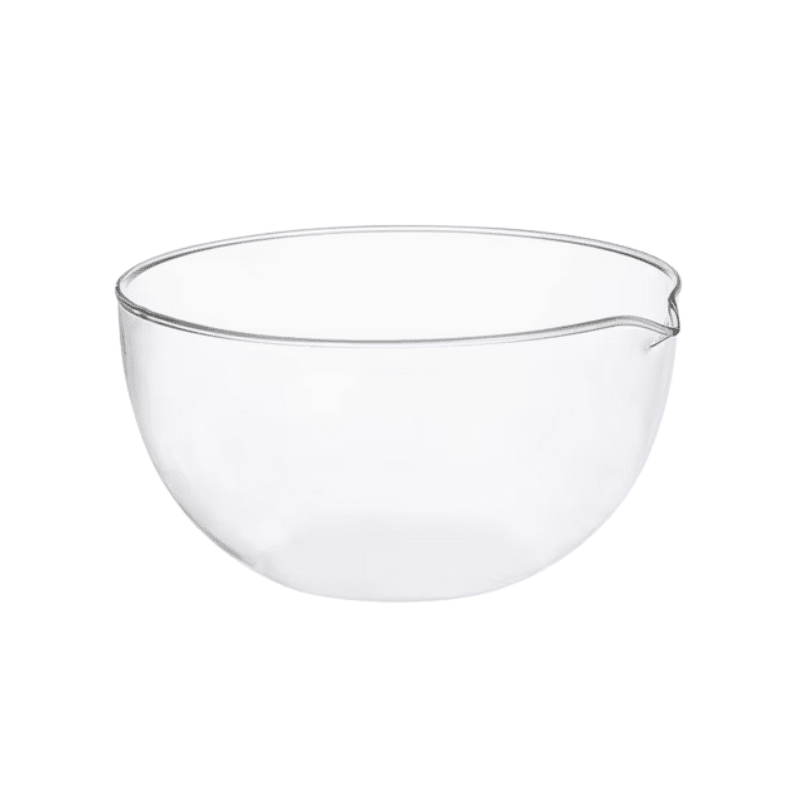

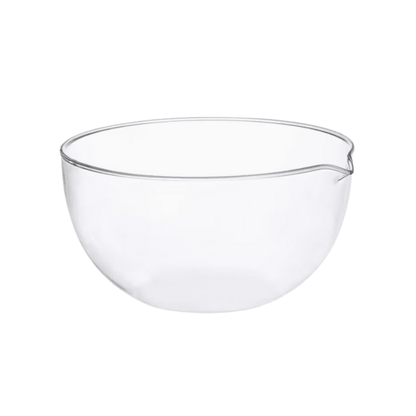

Evaporation dish,Flat-bottom ,With spout, boro 3.3 Glass

CNW-1171-60mm

Vendor: SmartLabs

Suited For:

Country of Origin:

17 in stock
R 35.00
R 35.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

A Glass Evaporation Dish (Flat-bottom with spout, Boro 3.3) is a shallow, heat-resistant laboratory vessel used to evaporate solvents from a solution, leaving behind a concentrated liquid or solid residue. The Borosilicate 3.3 glass construction ensures high resistance to thermal shock and chemical attack.

Recommended Use

  • Quantitative Analysis: Ideal for obtaining dissolved solids from a liquid sample.
  • High-Heat Applications: The flat bottom provides excellent heat transfer from hot plates, liquids should not exceed two-thirds of the dish's volume during heating to prevent splashing.

Item Code

Outer Diameter (Top)

Height

Approx. Capacity

1171

60 mm

30 mm

~45 ml

1171

90 mm

45 mm

~100 ml

1171

120 mm

60 mm

~300 ml

1171

150 mm

75 mm

~600 ml

Material Properties

  • Thermal Stability: Maximum working temperature of 500°C.
  • Linear Expansion: Low coefficient of 3.3 × 10⁻⁶/K, offering excellent thermal shock resistance.
  • Chemical Resistance: High stability against water, salt solutions, and most acids.
  • Quality: Glass is free of air bubbles, strips, or scratches for uniform heat distribution.

Specification

  • Capacity: Available from 60mm up to 150mm
  • Design: Rimmed with spout and flat bottom
  • Material: Borosilicate 3.3 Glass
  • Print: None
