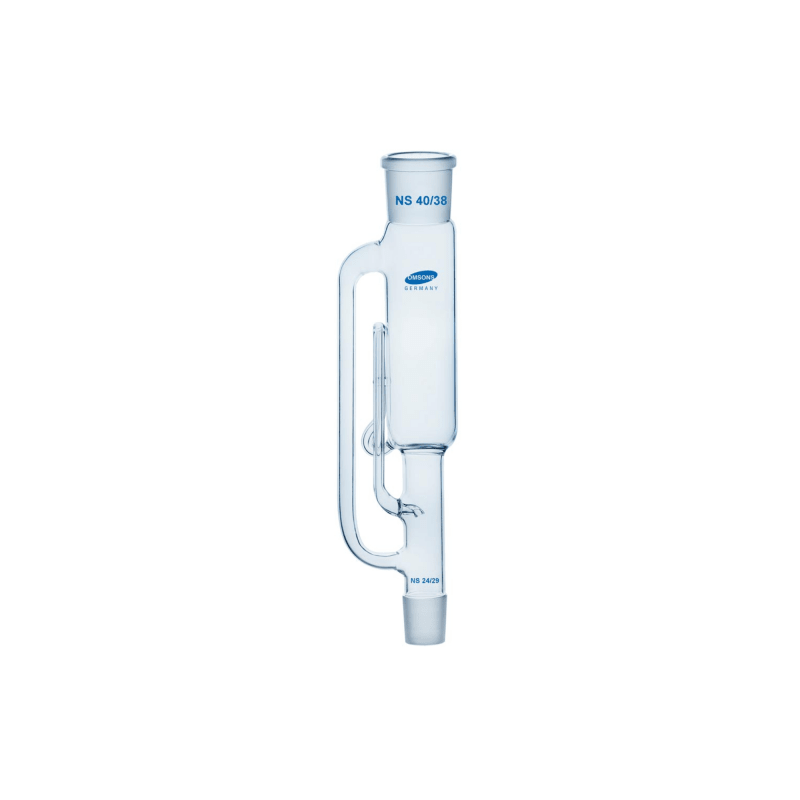

Extractor, for Soxhlet Apparatus 400mL
SKU OM-3401-100-07
Sold out
Original price
R 1,426.00
-
Original price
R 1,426.00
Original price
R 1,426.00
R 1,426.00
-
R 1,426.00
Current price
R 1,426.00
Availability:
Out of stock
The Soxhlet Extractor body (spare part) with a 400 mL capacity, designed for the continuous extraction of lipids or other compounds from solid samples.
Technical Specifications
- Capacity: 400 mL.
- Material: High-quality 3.3 Borosilicate Glass, providing superior thermal shock resistance and chemical durability.
-
Joint Sizes:
- Socket (Top): 50/42 (designed to fit a matching Allihn condenser).
- Cone (Bottom): 24/29 (designed to fit a 1,000 mL boiling flask).
- Compliance: Built in accordance with IS 10640 standards for extraction apparatus.
Key Design Features
- Siphon Tube: Precision-engineered siphon for automatic and consistent solvent recycling during the extraction cycle.
- Vapour Path: Includes a side vapour tube to allow solvent vapours to bypass the solid sample and reach the condenser.
- Interchangeability: Features standard taper ground glass joints for a vacuum-tight and leak-proof fit within a larger assembly.
Common Matching Components
To complete the setup, this extractor body is typically used with:
- Condenser: Allihn Condenser(Socket 50/42).
- Boiling Flask: 1,000 mL Round Bottom Flask (Socket 24/29).
- Thimbles: Compatible with standard cellulose or glass Extraction Thimbles sized for a 400 mL body.
Specifications
- Material: Clear 3.3 Borosilicate Glass
- Joint Size: Select from drop down
- Length: Select from drop down (Effective Length (mm)).
- Standard: IS 10640
- Brand: OMSONS
- Product of India
