• Filtration Assembly with GL - 45 Adapter

Filtration Assembly with GL-45 Adapter

OM-4023-01

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
Low stock! Only 4 left
R 1,350.00
R 1,350.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

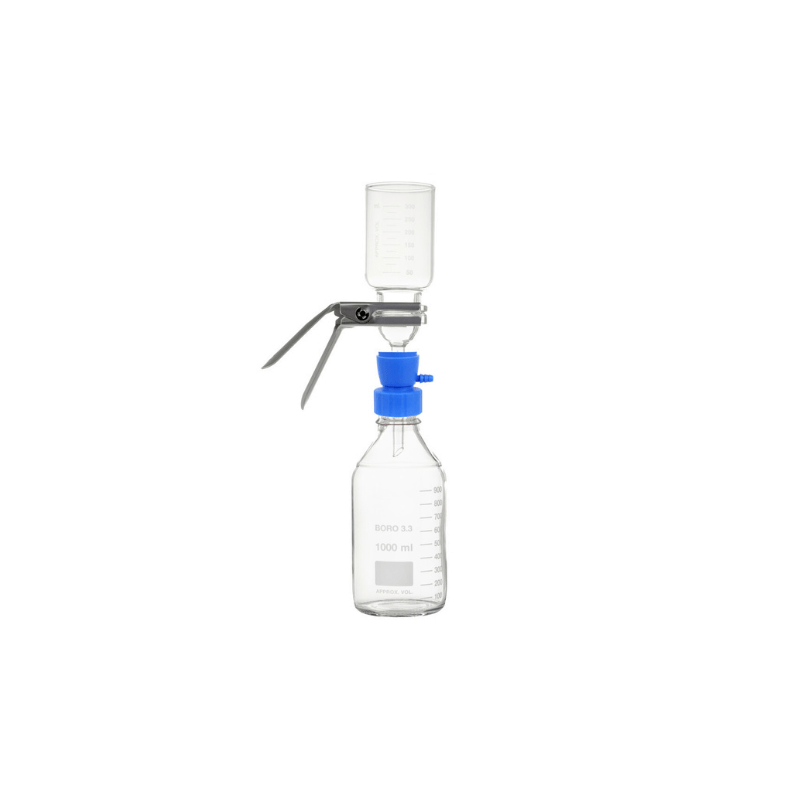

The OMSONS Filtration Assembly with GL-45 Adapter is a modern, high-efficiency vacuum filtration system designed to filter liquids directly into a standard laboratory GL-45 thread reagent bottle.

Unlike traditional assemblies that require a specialized Erlenmeyer flask, this system uses a GL-45 adapter to turn any common storage bottle into a vacuum receiving vessel.

Technical Specifications
  • Filter Diameter: Designed for standard 47 mm membrane filters.
  • Adapter Material: High-quality Borosilicate 3.3 glass with a GL-45 thread connection.
  • Funnel Capacity: Typically supplied with a 300 ml graduated glass funnel.
  • Base Support: Features a integrated sintered glass disc or a stainless steel mesh support for the membrane.
  • Vacuum Connection: Equipped with a side-arm hose barb for connection to a vacuum pump or house vacuum line.
  • Sterilization: All components are fully autoclavable at 121°C.
Key Benefits
  • Direct-to-Bottle: Eliminates the risk of contamination or spills that occur when transferring filtered liquids from a traditional Erlenmeyer flask to a storage bottle.
  • Space Saving: You only need to store the adapter and funnel rather than large, heavy vacuum flasks.
  • Versatility: Compatible with any ISO-standard GL-45 bottle (e.g., 100ml, 500ml, 1L, or 5L bottles).
  • Airtight Seal: The GL-45 connection ensures a secure, vacuum-tight fit during operation.
Primary Applications
  • HPLC Mobile Phase Preparation: Filtering and degassing solvents directly into the bottle used on the HPLC system.
  • Microbiological Testing: Safely filtering large volumes of media or buffers.
  • Clarification of Corrosive Chemicals: Since the system is borosilicate glass, it handles most aggressive reagents that would damage plastic alternatives.

Spesification

  • Made of Borosilicate Glass with Fritted Glass Filter Base.
  • The base designed as an Integral Vacuum Connection located above the Filtrate Drip to prevent contamination of the Vacuum Line from droplets.
  • The Filtration Base has a Silicon Stopper.
  • Anodized Aluminium Spring Clamp.
  • The filter size is 47mm.
  • The effective filtration area is 9.6 cm2.
  • Used for filtration of HPLC Solvents, Aqueous Mobile Face Solution & Buffers.
  • The Scale Funnels simplifies Dosing & Analysis.
  • Brand: OMSONS
  • Product of India

Specifications

Filter Diameter: 47mm
Material: Borosilicate 3.3 Glass
Funnel Capacity: 300mL
Effective Filtration Area: 9.6cm²
Sterilization: Autoclavable at 121°C
