HEATING AND STIRRING 2L

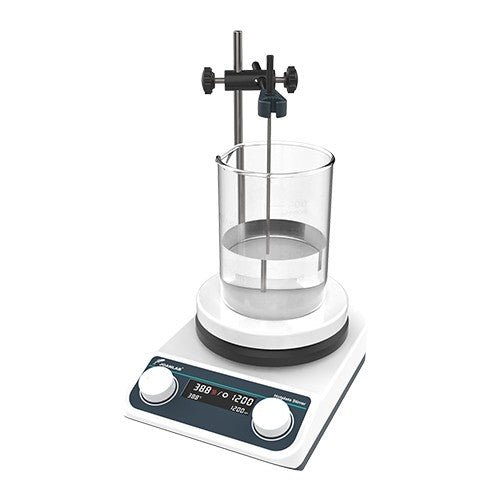

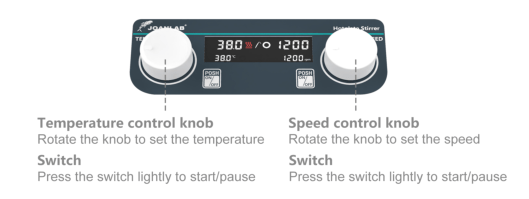

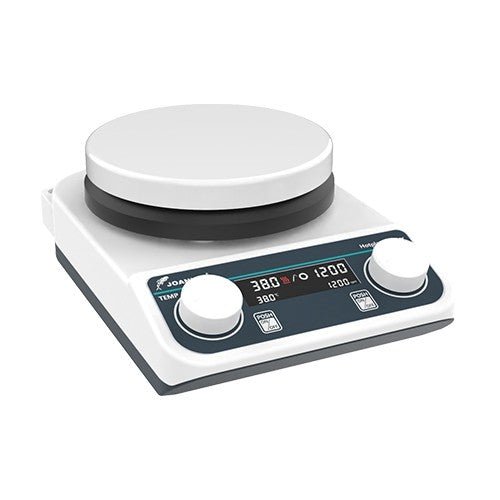

The JOANLAB HS5C is a digital hotplate magnetic stirrer that heats and stirs up to 2 litres at once. The hot plate reaches 280°C and the speed runs from 200 to 1,500 rpm in 10 rpm steps. You set the temperature with the left knob and the speed with the right, and read both on the digital display.

It's built for heating and stirring liquids, and solid-liquid mixtures with low viscosity. It has a built-in PT1000 sensor and also takes an external PT1000 probe, so it can control the liquid itself to ±1°C rather than just the plate (±3°C). Over-temperature protection is built in.

Key features

• Digital display reading to 0.1°C, set in 1°C steps
• 135mm stainless steel plate with a ceramic coating
• Brushless motor; stirs anticlockwise with a 30mm bar
• Input for an external PT1000 temperature probe

Specifications

• Model: HS5C
• Maximum plate temperature: 280°C
• Speed: 200 to 1,500 rpm, 10 rpm steps
• Maximum stirring volume: 2L (water)
• Plate: 135mm, stainless steel, ceramic coated
• Temperature control: ±1°C (liquid, with the probe), ±3°C (plate)
• Temperature sensor: internal PT1000, plus external PT1000 probe input
• Stirrer bar: 30mm linear
• Power: 300W
• Voltage: AC220V
• Dimensions: 225 x 155 x 90mm
• Country of origin: China

Downloads

• JOANLAB HS5, HS5C, HS5Pro and HS8Pro user manual (PDF)
