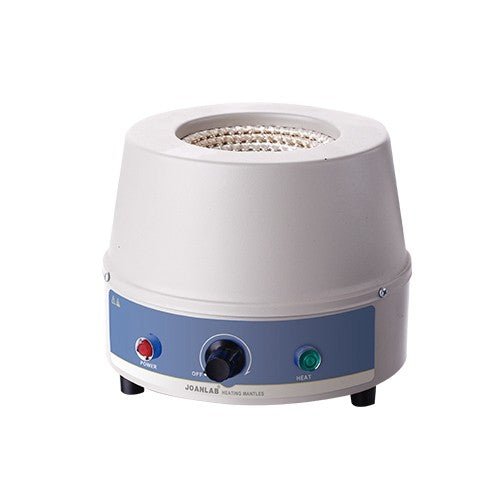

Heating Mantle - No Thermometer

The JOANLAB HM heating mantle heats round-bottom flasks from room temperature up to 380°C, with electronic heat regulation. It has no temperature display, probe or stirrer. Choose the size that matches your flask, from 250ml to 10,000ml.

The heater is nickel-chrome resistance wire sealed in a high-temperature glass fibre insulation layer and woven into a hemispherical heater. It heats a large area quickly and evenly, with no open flame. The body is spray-coated cold-rolled steel sheet.

Sizes and heating power

• 250ml: 150W
• 500ml: 250W
• 1000ml: 350W
• 2000ml: 450W
• 5000ml: 800W
• 10000ml: 1200W

Specifications

• Model: JOANLAB HM
• Function: heating with electronic heat regulation
• Maximum temperature: room temperature to 380°C
• Temperature control and display: none
• Stirring: none
• Operating conditions: 5 to 40°C, up to 90% humidity, earthed power supply
• Country of origin: China

On first use the insulation gives off white smoke as its grease coating burns off. Let it run until the smoke stops before you heat a sample. Always pour the liquid into the flask before placing the flask in the mantle.

Not for use with flammable, explosive, poisonous or strongly corrosive materials.
