• LCD Digital Zoom Stereo Microscope - Trinocular

LCD Digital Zoom Stereo Microscope - Trinocular

NM-23-3645N-R2-L1

Vendor: SmartLabs

Suited For: Lab and Research

Country of Origin: China

1 Year Warranty
Out of stock
R 15,732.52
R 15,732.52
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments
Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

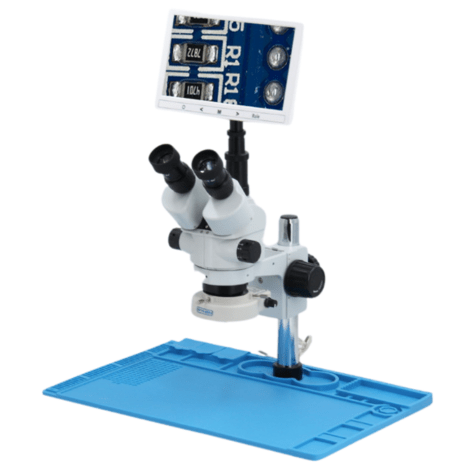

LCD Digital Zoom Stereo Microscope - Trinocular

High Quality Optical System Zoom Stereo Microscope with Trinocular head 10x eyepieces and 0.7- 4.5x zoom lenses that allows for a total magnification of up to 45x magnigication. The Trinocular head light split 5:5 that allows for view image through the eyepiece and the LCD at the same time. The stand has a upper LEDs with 56 lights with brightness adjustment an both right and left side of the microscope.Supplied with professional soft pad working area for electronic equipment repairsphone.

Specification

  • Head: Trinocular, LCD Screen 9" With Digital Camera, AV Output
    • 0.6M 1/3" CMOS, 976x592 Pixels,
    • Mount to 23.2mm Eyepiece Tube
  • Eyepiece: WF10x/20mm, Both With Eye-cup
  • Zoom Lens: 0.7~4.5x
  • Zoom Ratio: 1:6.5
  • Magnification: 7x-45x
  • Working Distance: 100mm, With Standard 1x Lens
  • Field Of View: 1~95.2mm
  • Stand: Large Pole Stand, Size 200*255*8mm, Pole Height 240mm, Dia.32mm, With Heat Resist Soft Rubber Pad, Working Area For Phone PCB Repair
  • Light Source: Upper 56 LEDs Right Light Brightness Adjustable

Downloads

  • Download User Manual
  • Download Product Data sheet

Specifications

Screen and camera
Head: Trinocular with a 9 inch LCD screen
Camera: 0.6 MP 1/3 inch CMOS, 976 x 592, AV output, 23.2 mm mount
Light split: 5:5, eyepieces and screen live at the same time
Optics
Eyepieces: WF10x/20 mm with eye cups
Zoom lens: 0.7x to 4.5x, zoom ratio 1:6.5
Magnification: 7x to 45x
Working distance: 100 mm with the standard 1x lens
Field of view: 1 to 95.2 mm
Stand and light
Stand: Large pole stand, 200 x 255 x 8 mm base, 240 mm pole, 32 mm diameter
Work surface: Heat-resistant soft rubber pad for phone and PCB repair
Light: 56 upper LEDs with adjustable brightness

Common Uses

QC documentation and inspection (electronics, manufacturing)
Image capture via camera port for quality records

Frequently Asked Questions

Is this made for phone and board repair?

It's set up for it. The stand comes with a heat-resistant rubber work pad, the 56 LED light is adjustable, and there's 100 mm of room under the lens for an iron.

Can I watch the screen instead of the eyepieces?

Either, or both. The light splits evenly, so the 9 inch screen and the eyepieces show the specimen at the same time.

What magnification does the zoom cover?

7x to 45x, continuously, using the 0.7-4.5x zoom lens with the WF10x eyepieces.

Is it any good for biology?

It's a stereo microscope, so it suits whole objects and dissections rather than cells on a slide.
