• Measuring Cylinder with Hexagonal Base - Class A

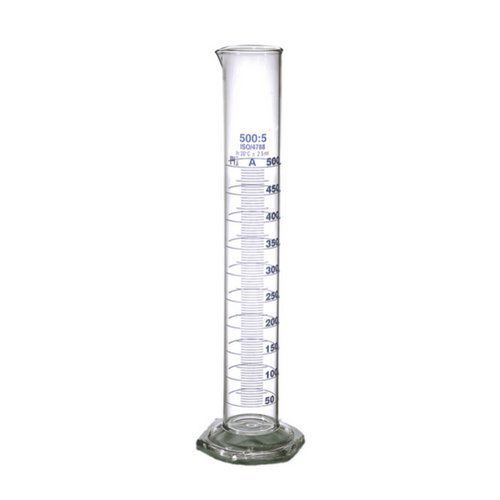

Measuring Cylinder with Hexagonal Base - Class A

CY0401-CLA

  • Lab and Research

Vendor: OMSONS

Suited For: Lab and Research

Country of Origin: India

30-Day Limited Warranty
This product is covered against manufacturing defects in materials and workmanship for 30 days from the date of purchase.

This warranty does not cover: breakage caused by thermal shock (rapid heating or cooling); physical or mechanical damage, including drops, impacts, chips, and cracks from handling; damage from use outside the glassware's rated temperature, pressure, or chemical compatibility; damage from improper cleaning; normal wear such as scratching, staining, or discolouration; or unauthorised repair or modification.

To claim, contact SmartLabs within 30 days of purchase with proof of purchase and a description of the defect.
38 in stock
R 115.00
R 115.00
Tax included. Shipping calculated at checkout.
  • Fast Nationwide Delivery
  • 100% Quality Guaranteed
  • Reliable & Secure Payments

Have a question about this product?

Send us a message and we'll get back to you.

OMSONS Measuring Cylinders with Hexagonal Base (Class A) are high-precision volumetric instruments designed for critical liquid measurement in analytical and research laboratories. The hexagonal base provides superior stability compared to round-base models, preventing the cylinder from rolling if knocked over.

A graduated cylinder, also known as measuring cylinder or mixing cylinder is a common piece of laboratory equipment used to measure the volume of a liquid. It has a narrow cylindrical shape. Each marked line on the graduated cylinder represents the amount of liquid that has been measured.

The hexagonal base on OMSONS measuring cylinders is a safety-driven design choice that offers three main advantages over traditional round bases:
  • Anti-Roll Protection: If the cylinder is accidentally knocked over on its side, the flat edges of the hexagon act as a "brake," preventing it from rolling off the lab bench. This significantly reduces the risk of breakage and chemical spills.
  • Superior Stability: The six-point contact area provides a more stable footprint. This makes the cylinder less likely to tip over when it is filled to capacity or when using a tall, narrow version (like a 10ml or 25ml cylinder).
  • Ease of Handling: The angular shape provides a better grip when moving the cylinder or when wearing bulky laboratory gloves, as the edges offer tactile feedback that a smooth round base lacks.
Primary Applications
  • Preparation of Standard Solutions: Used to measure solvents precisely when creating solutions of a specific molarity or normality.
  • Analytical Chemistry: Essential for quantitative analysis where the volume of a sample or reagent directly impacts the final calculation of a concentration.
  • Quality Control (QC) Testing: Widely used in the pharmaceutical, food, and beverage industries to ensure products meet exact formulation specifications.
  • Regulatory Compliance & Auditing: Since Class A cylinders come with Batch or Individual Certificates, they provide the necessary "paper trail" for ISO 17025 accredited labs and GLP (Good Laboratory Practice) environments.
  • R&D and Synthesis: Used in research to accurately measure liquid reactants where the stoichiometric ratio is critical to the success of a chemical reaction.
Key Features
  • Accuracy Class: Class A (Quality Grade), representing the highest level of precision with tight tolerance limits.
  • Standard Compliance: Manufactured in accordance with DIN/ISO 4788 or IS:878 standards.
  • Material: High-quality Borosilicate 3.3 glass, which is highly resistant to thermal shock and chemical attack.
  • Calibration: Typically calibrated to contain (TC, In) at 27°C (or 20°C for ASTM versions).
  • Certification: Usually supplied with an Individual Class 'A' Certificate or an optional NABL certificate for full traceability.
  • Printing: High-contrast permanent Blue enamel markings (White or Amber enamel may be available).
  • Stability: The sturdy hexagonal base ensures the cylinder stays upright and resists tipping or rolling.
  • Pouring Spout: Designed with a non-drip spout for controlled and easy liquid transfer.
  • Traceability: Class A cylinders are ideal for regulated industries (pharmaceuticals, medical labs) that require precise documentation and certified accuracy.

Capacity and Tolerance (DIN/ISO 4788)

Capacity (ml)  Graduation (ml) Tolerance (± ml)
5 ml 0.1 ml 0.05 ml
10 ml 0.2 ml 0.10 ml
25 ml 0.5 ml 0.25 ml
50 ml 1.0 ml 0.50 ml
100 ml 1.0 ml 0.50 ml
250 ml 2.0 ml 1.00 ml
500 ml 5.0 ml 2.50 ml
1000 ml 10.0 ml 5.00 ml
2000 ml 20.0 ml 10.00 ml

Spesification

  • Design: Hex Base Class A
  • Material: Clear 3.3 Borosilicate Glass
  • Size: Select from drop down
  • Neck: Rimmed Spouted, No Joint
  • Printing: Blue enamel markings (acid and scratch-resistant).
  • Brand: OMSONS
  • Product of India

Specifications

Accuracy Class: Class A
Material: Borosilicate 3.3 Glass
Compliance: DIN/ISO 4788 or IS:878
Calibration: To Contain (TC) at 27°C (or 20°C for ASTM)
