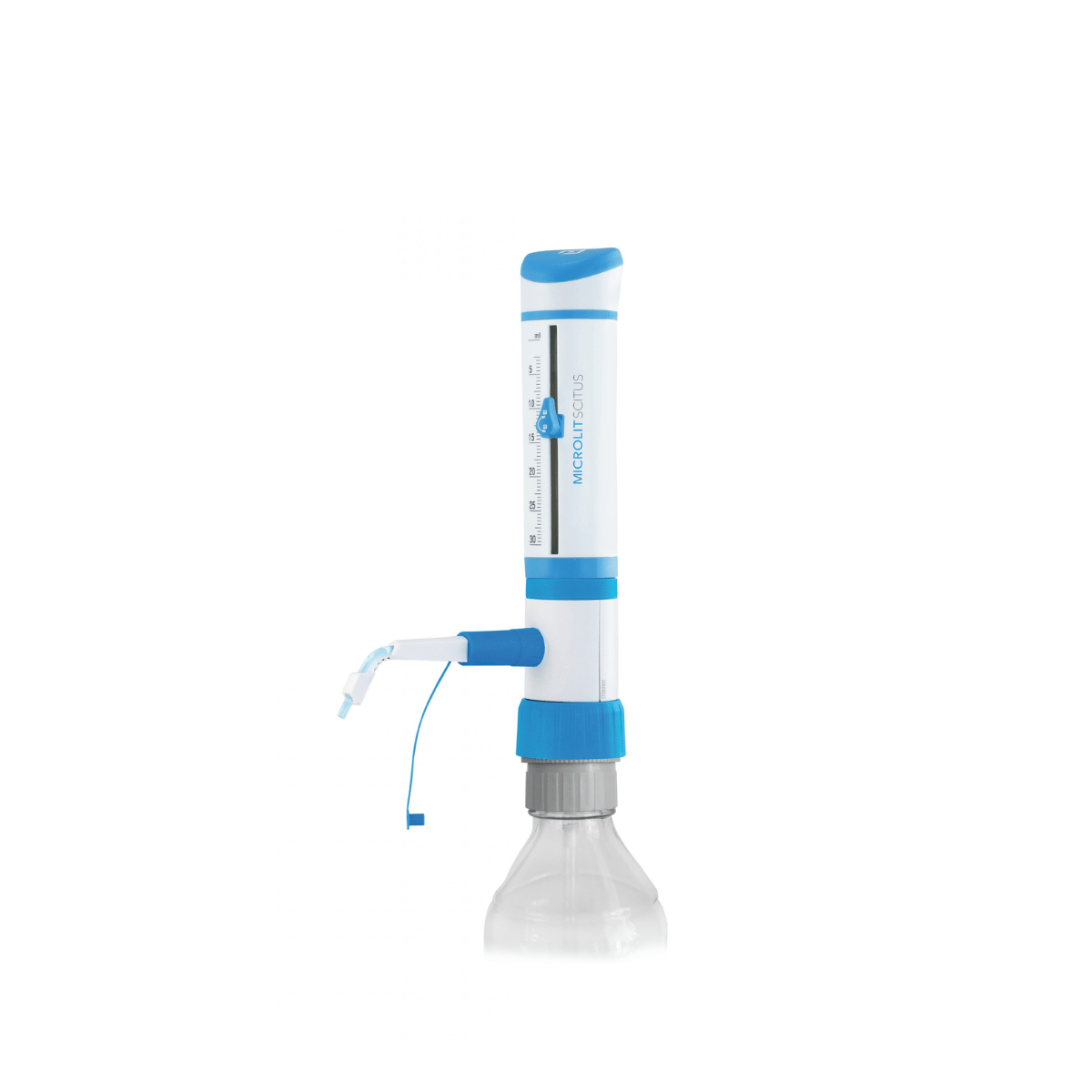

MICROLIT SCITUS Bottle Top Dispenser (BTD)
The Microlit Scitus is a high-precision liquid handling tool used to safely measure and dispense specific volumes of liquids directly from a chemical storage bottle.
The instrument comes with five adapters that comfortably fit most laboratory reagent bottles. The available sizes are – 28 mm, 32 mm, 38 mm, 40 mm and 45 mm.
A Telescoping Tube that can be adjusted according to a variety of bottle sizes is provided as an inside-the-box accessory.
The three major innovations built into this bottle-top dispenser include:
- Springless Valve®: A design that eliminates the internal metallic spring found in traditional dispensers, preventing metal contamination and ensuring smooth liquid flow.
- EasyKnob®: A user-friendly volume adjustment knob that allows you to set and lock your target volume quickly and precisely.
- FlexiNozzle®: An adjustable, flexible delivery nozzle that gives you high physical control and angle flexibility when dispensing into your target containers.
| Model No. | Vol. Range | Increment | Accuracy | CV | ||
|---|---|---|---|---|---|---|
| ±% | ±ml | ±% | ±ml | |||
| SCI-2.5 | 0.25-2.5 ml | 0.05 ml | 0.5 | 0.015 | 0.2 | 0.005 |
| SCI-5 | 0.5-5 ml | 0.1 ml | 0.5 | 0.030 | 0.2 | 0.010 |
| SCI-10 | 1-10 ml | 0.2 ml | 0.5 | 0.060 | 0.1 | 0.01 |
| SCI-30 | 2.5-30 ml | 0.5 ml | 0.5 | 0.180 | 0.1 | 0.03 |
| SCI-60 | 5-60 ml | 1.0 ml | 0.5 | 0.360 | 0.1 | 0.06 |
| SCI-100 | 10-100 ml | 2.0 ml | 0.5 | 0.600 | 0.1 | 0.1 |
The error limits (Accuracy and Coefficient of Variation) mentioned above are in accordance with the nominal capacity (or maximum volume) indicated on the instrument. These are obtained by using the instrument with distilled water at equilibrium, the ambient temperature of 20 °C while operating it smoothly and steadily. The error limits are in accordance with DIN EN ISO 8655-5.
Assured Quality with ISO 8655 Conformed Calibration MICROLIT SCITUS is calibrated in an ISO 17025 accredited laboratory according to ISO 8655 standards. A calibration certificate is included inside the product package. A calibration tool is also included for quick in-lab recalibration.
Work with a Comprehensive Volume Range MICROLIT SCITUS is available in six unique volume ranges. *Refer the table in technical specifications.
Autoclaving Parameters MICROLIT SCITUS is fully autoclavable at 121°C and 15 psi for a duration of 10-15 minutes.
