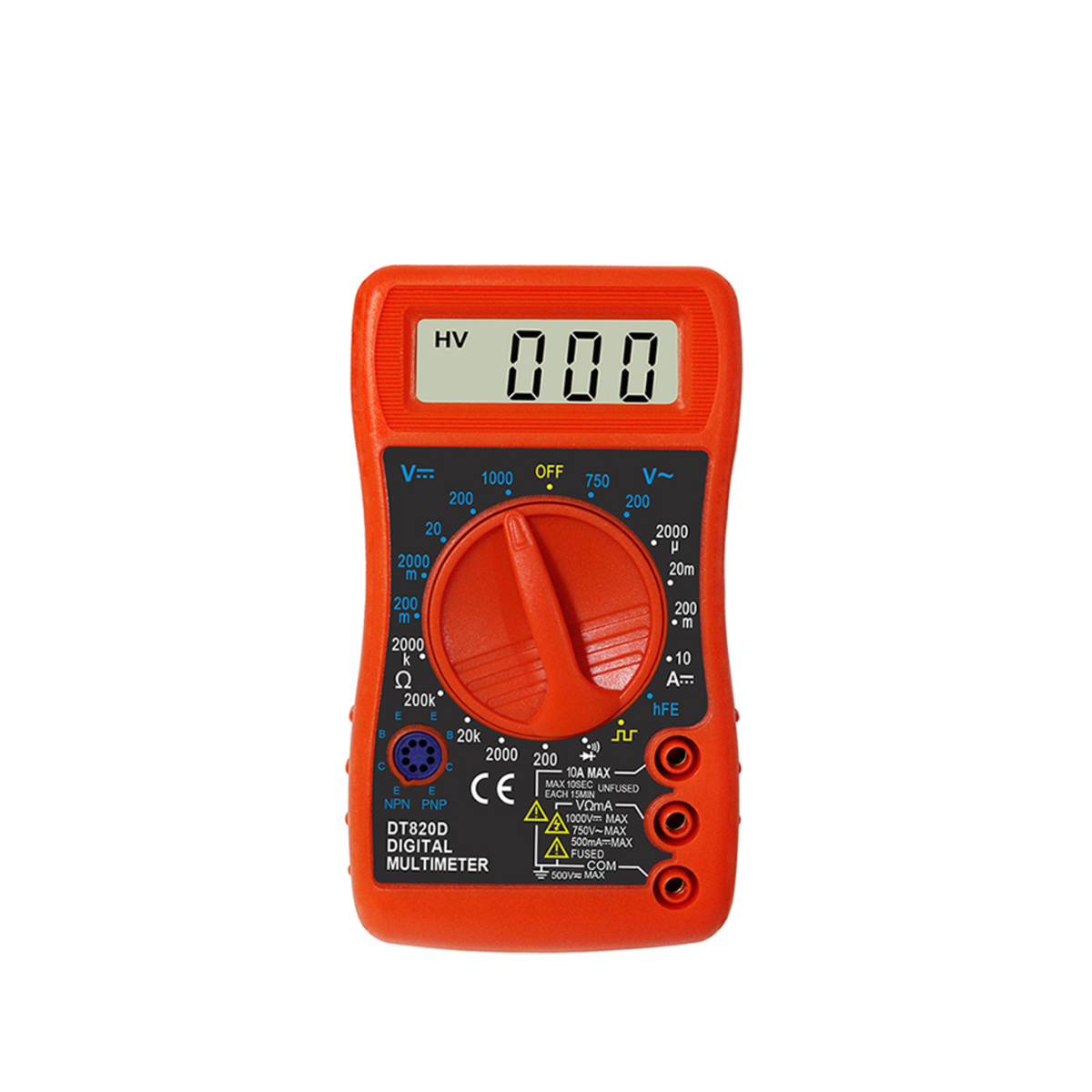

Mini Digital Multimeter

This mini digital multimeter measures voltage, current and resistance in a compact, handheld design, with overload protection and an LCD display. It's an entry-level meter for basic electrical fault-finding and maintenance, and it's easy to use and durable, which suits hobbyists, students and technicians who need the basics at an affordable price.

Key Benefits and Features

• Ergonomic shape that sits comfortably in your hand
• Measures DC voltage, AC voltage, DC current and resistance
• LCD screen with a clear digital readout
• Stable, reliable performance with low power use

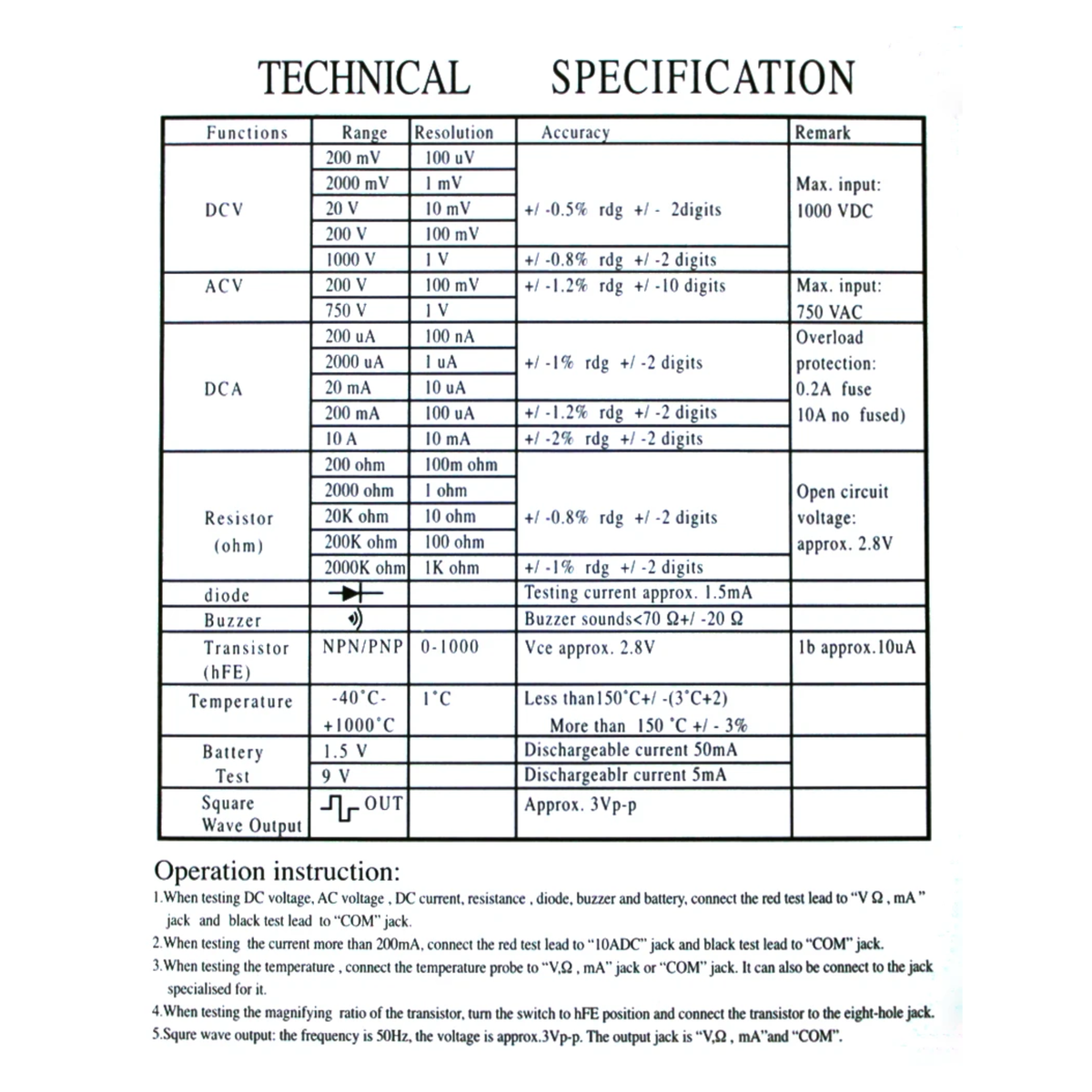

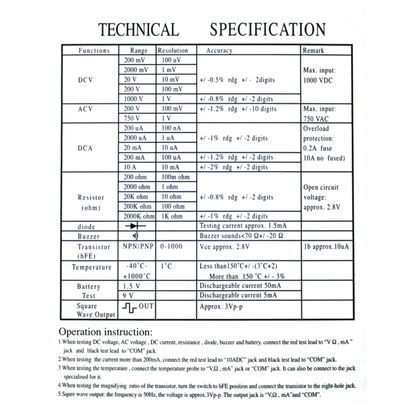

Measurement Ranges

• DC voltage: 200mV, 2000mV, 20V, 200V, 1000V (±0.5%)
• AC voltage: 200V, 750V (±1.0%)
• DC current: 200µA, 2000µA, 20mA, 200mA, 10A (±1.8%)
• Resistance: 200Ω, 2000Ω, 20kΩ, 200kΩ, 2000kΩ (±1.0%)

Product Specifications

• LCD size: 49 x 16mm
• Maximum display: 1999
• Low battery indicator: Yes
• Overload protection: Yes
• Diode test: Yes
• Transistor test: Yes
• Power: One 9V (6F22) battery
• Size: 129 x 75 x 28mm
• Package weight: About 126g

What's in the Box?

• 1 x digital multimeter

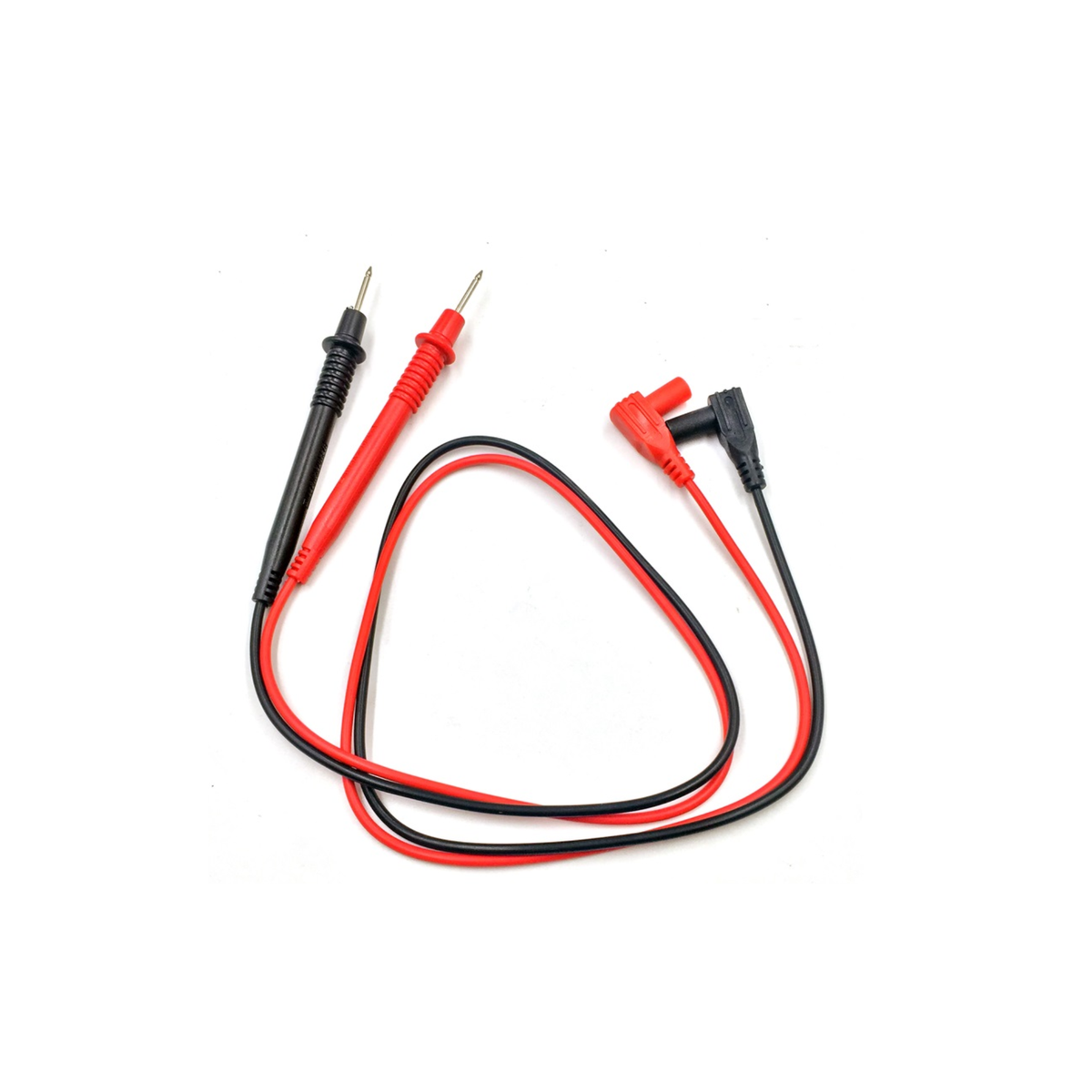

• 1 x set of test leads
• 1 x user manual
