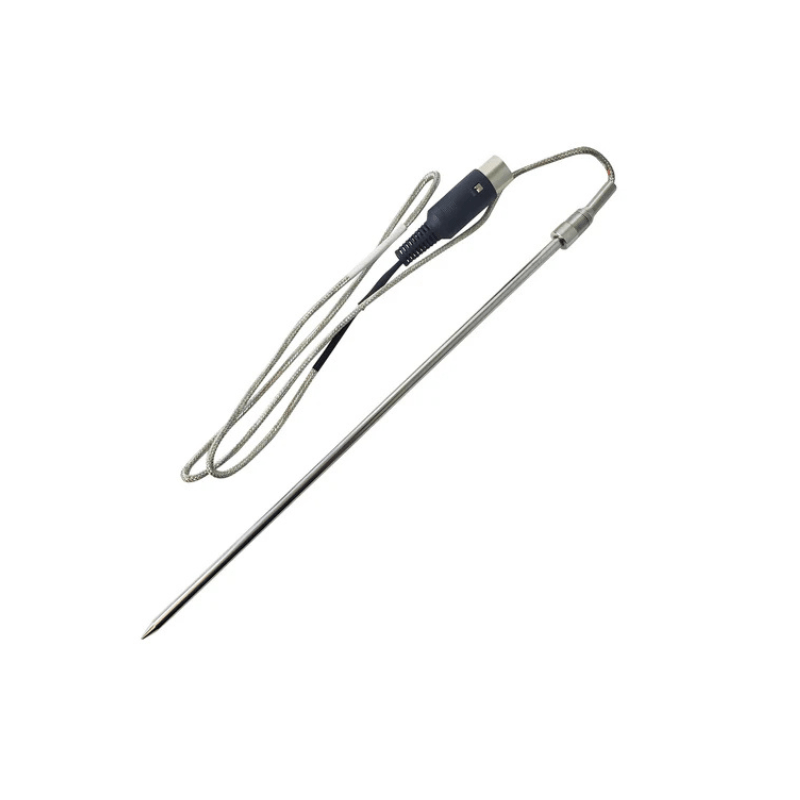

MMSC Replacement Temperature Probe.

This is a replacement temperature probe for the JOANLAB digital heating mantles: the HMC (our MMHM) and the HMSC with stirrer (our MMSC). It plugs into the sensor socket on the back of the mantle with a 5-pin DIN connector and sits in the liquid, so the mantle controls the liquid's actual temperature. Choose the probe for your mantle size, from 250ml to 5,000ml.

Fit the probe in the mantle's sensor frame and set its tip in the liquid you're heating.

The probe is sensitive to aggressive acids. When heating acids, put the probe in a thermometer pocket, or measure with an infrared or glass thermometer instead.

Specifications

• Fits: JOANLAB HMC and HMSC heating mantles (our MMHM and MMSC)
• Connector: 5-pin DIN
• Sizes: for 250ml, 500ml, 1000ml, 2000ml and 5000ml mantles
• Country of origin: China

Downloads

• JOANLAB heating mantle user manual (HM, HMC, HMS, HMSC) (PDF)
