Monocular Microscope, 1000x Double Layer Stage

Name: Monocular Microscope, 1000x Double Layer Stage
Brand: SmartLabs
Price: 5300.0 ZAR
Availability: OutOfStock

NM-104

Vendor: SmartLabs

Country of Origin: China

1 Year Warranty

Out of stock

R 5,300.00

Tax included. Shipping calculated at checkout.

Fast Nationwide Delivery
100% Quality Guaranteed
Reliable & Secure Payments

Sorry, it's out of stock.

But we can let you know when it's back in.

Have a question about this product?

Send us a message and we'll get back to you.

Sold out

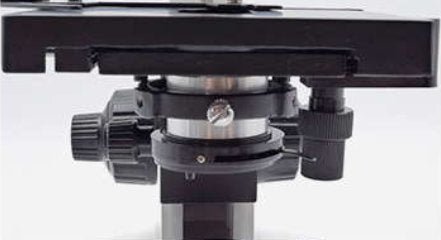

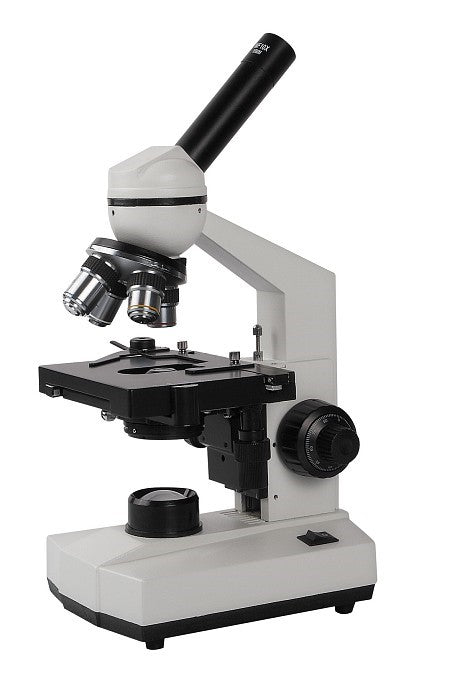

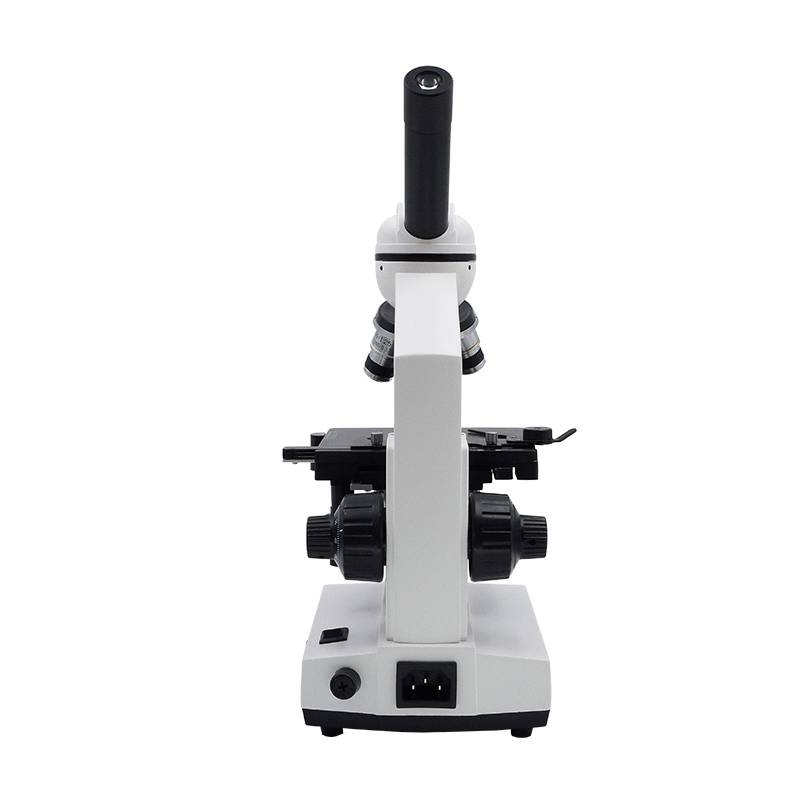

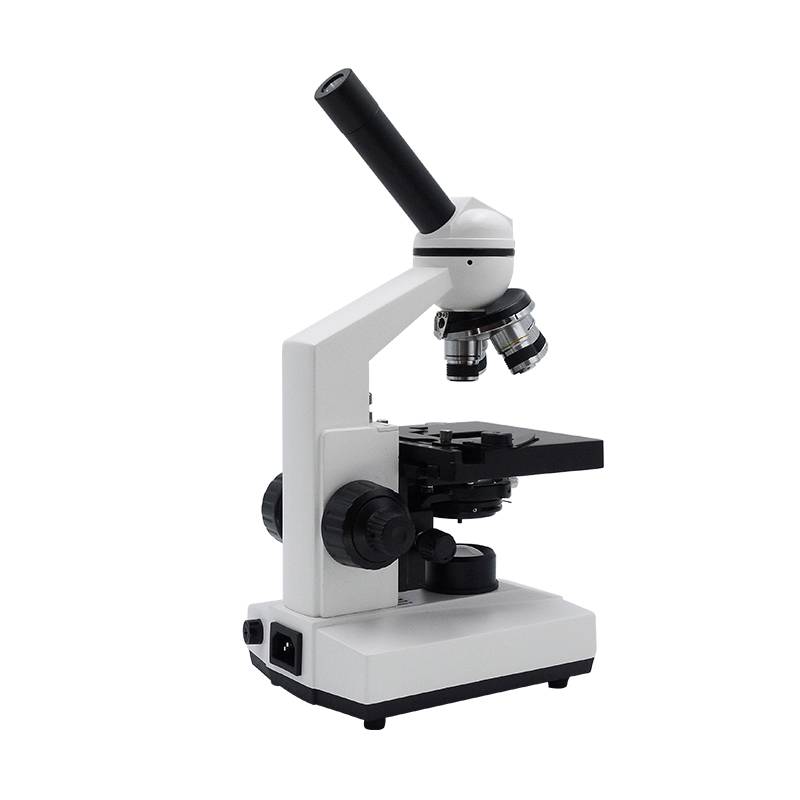

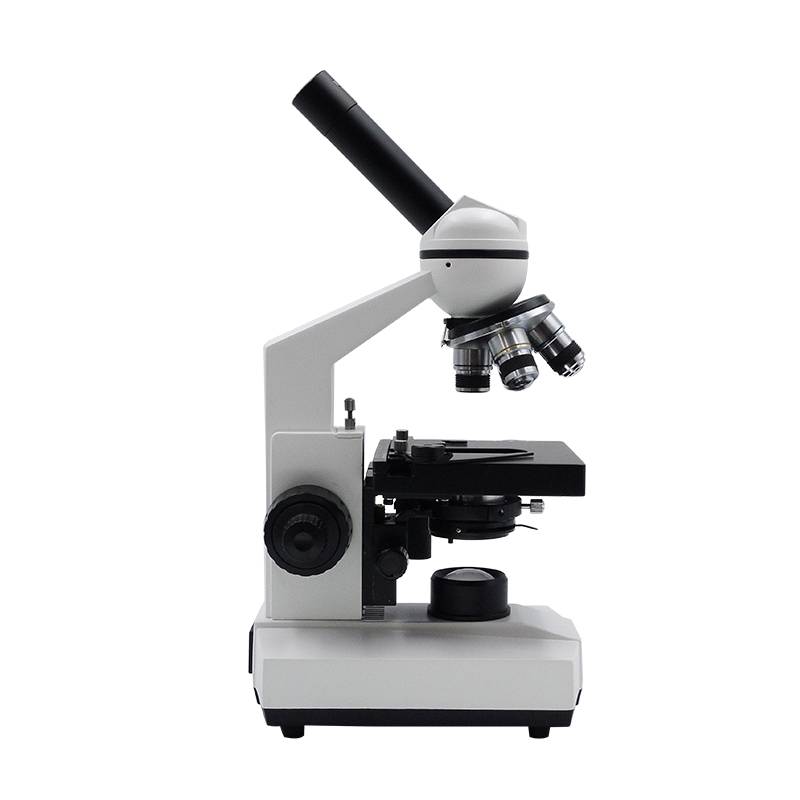

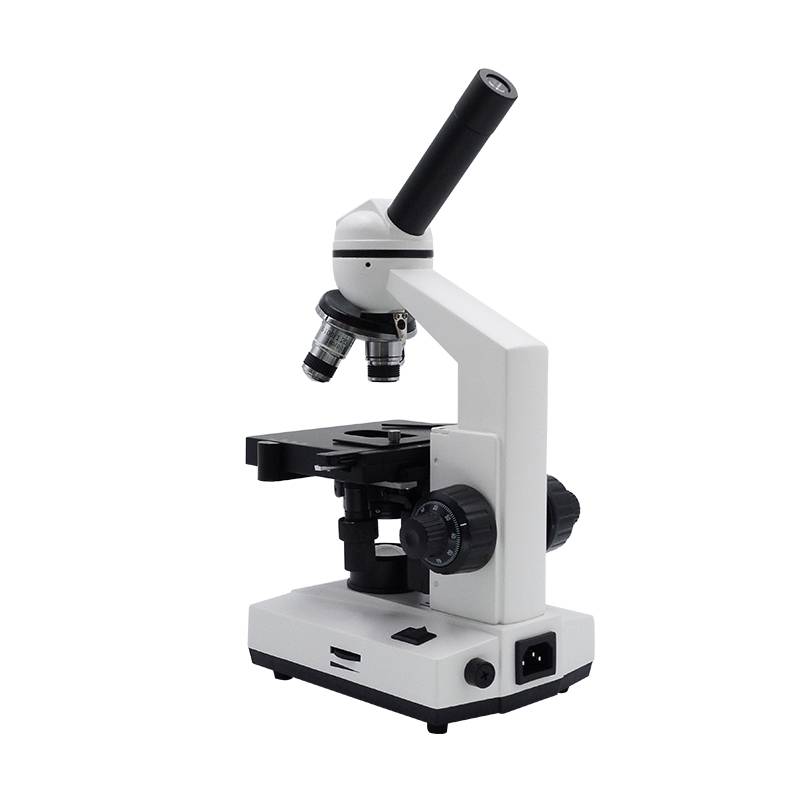

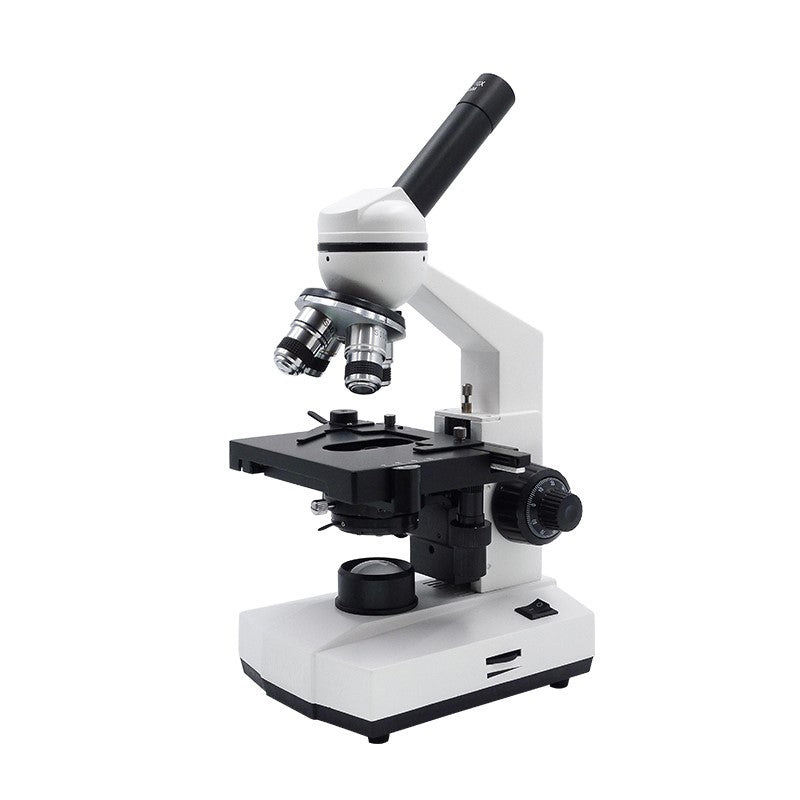

This double layer monocular microscope uses a halogen lamp for illumination. It's fitted with four achromatic objectives (4x, 10x, 40x and 100x oil) that allow the specimen to be magnified up to 1000x. The double layer stage allows for ease of movement, and the microscope has a coaxial coarse and fine adjustment focusing range of 20mm.

Specifications

Wide field eyepiece: WF10x
Four achromatic objectives: 4x, 10x, 40x, 100x
Total Magnification: 40x, 100x, 400x, 1000x
Double layer mechanical stage, size: 110 x 125mm
Coaxial coarse and fine adjustment, focusing range 20mm
N.A 1.25 Abbe condenser & Iris diaphragm
6V 20W Halogen Lamp
AC Input 220V

Downloads

Specifications

Optics
Head: Monocular
Eyepiece: Wide field WF10x
Objectives: Achromatic 4x, 10x, 40x, 100x (oil)
Total magnification: 40x, 100x, 400x, 1000x
Condenser: Abbe N.A. 1.25 with iris diaphragm
Stage and focus
Stage: Double-layer mechanical stage, 110 x 125 mm
Focus: Coaxial coarse and fine, 20 mm range
Power
Light: 6 V 20 W halogen lamp
Power: 220 V AC mains

Common Uses

CAPS, IEB and Cambridge IGCSE/AS-Level Life Sciences practicals (Grade 10-12)
Oil-immersion cell and tissue work at Grade 12 level

Frequently Asked Questions

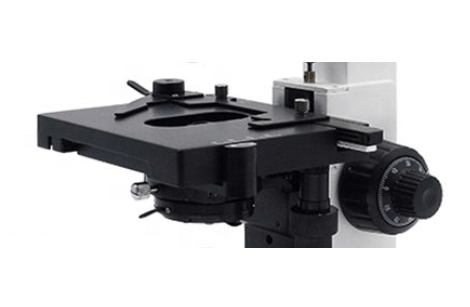

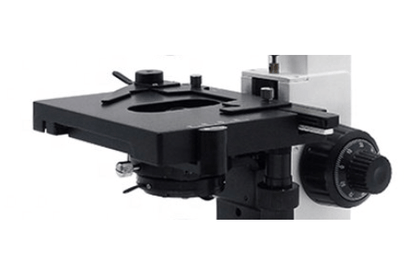

What is a double-layer stage?

The slide sits in a holder on the top layer, and two knobs slide it left to right and back to front. At 400x and higher a nudge with your finger loses the specimen completely, so the knobs matter.

How does it compare to the binocular version?

The optics, stage and lamp are identical. This one has a single eyepiece and costs less. The binocular is easier on the eyes if you're at the bench for an hour.
