POWER SUPPLY EP125 12V, 2AMP

SKU IN2040451
Sold out
R 2,100.00 - R 2,100.00
R 2,100.00
R 2,100.00 - R 2,100.00
R 2,100.00

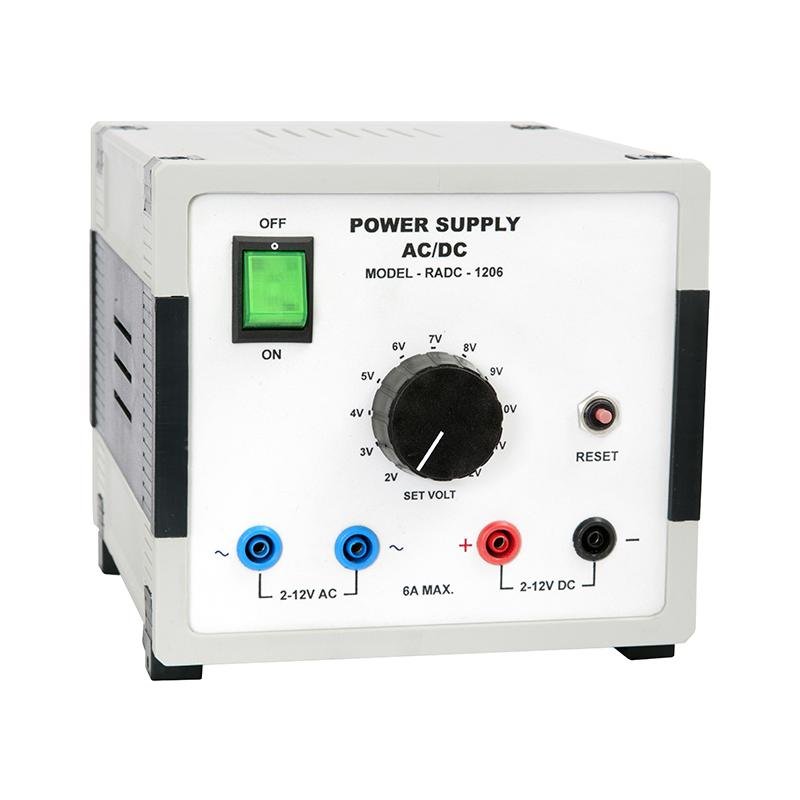

Power Supply, AC/DC RADC



Power Supply RADC is specially designed for selectable (by means of a positive click stop rotary knob) AC & DC output voltage with a current rating up to 6Amps. This power supply is sturdy and economic, for most of low-voltage experiments. The unit is equipped with a primary fuse and overload protection.

Features:

  • Thermal reset circuit breaker for overload protection.
  • Color coded safety sockets.
  • Selectable AC/DC output voltage.
  • Safety socket for earthing.
  • Rigid ABS construction.
  • Stackable housing.
  • Ergonomic feet.

Technical Specifications:

  • Input Voltage: 110V / 220V AC (Selectable)
  • Frequency: 50-60Hz
  • Current Rating: 0.4A
  • Power: 100W (max.) @ 220V AC
  • Fuse (Primary): 2A
  • Output Voltage AC: 2-12V, with a Step of 1V
  • Output Voltage DC: 2-12V, with a Step of 1V
  • Output Current: 6A (max.)
  • Operating Temperature Range: Room Temperature (24°C approx.)
  • Ingress Protection Code: IP20
Availability:
Out of stock
