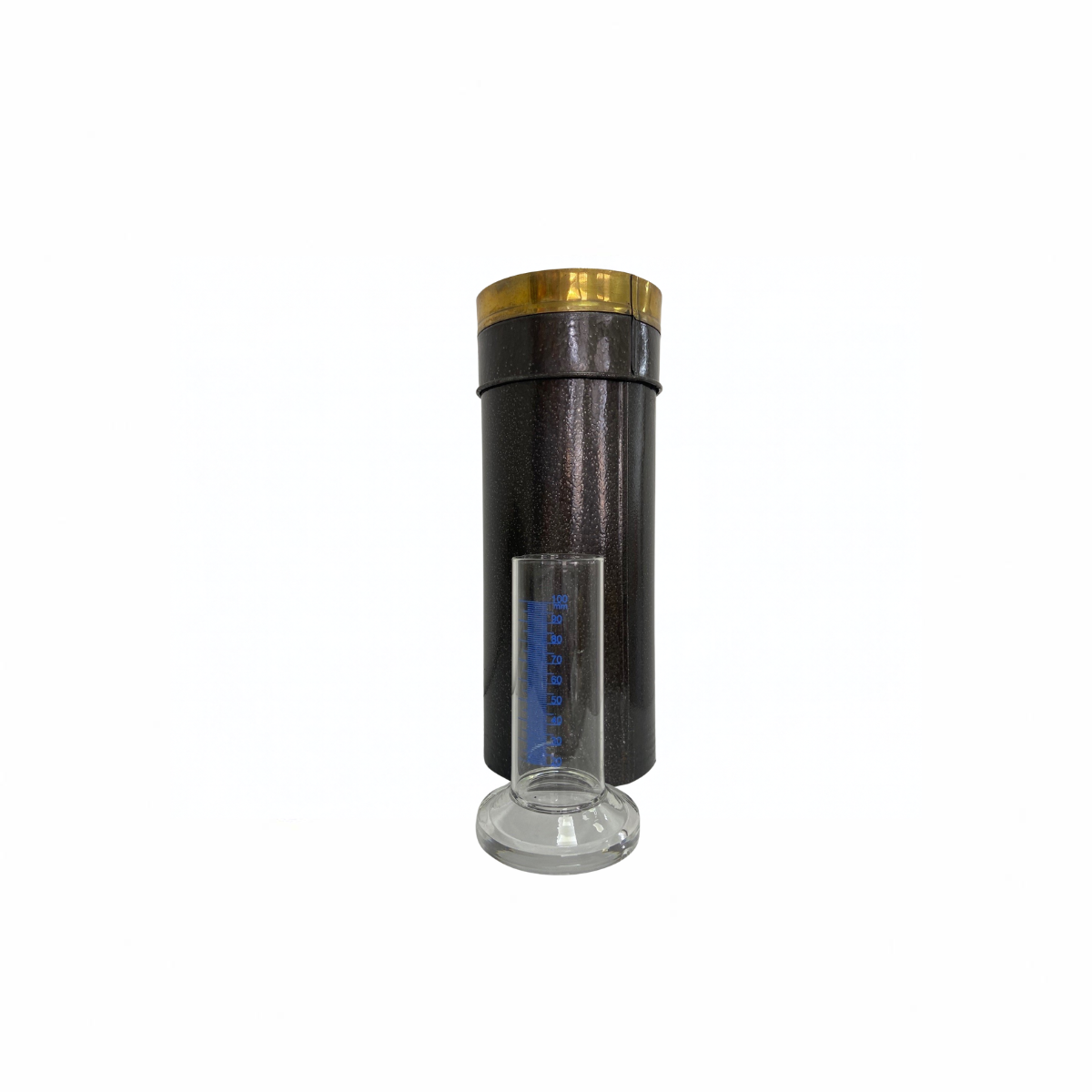

Rain Gauge, Metal, British Association Pattern, 125mm

This British Association pattern rain gauge is built to meteorological standards and gives manual measurements of daily rainfall. It suits weather enthusiasts, farmers and research stations.

Features

• The cylindrical outer body (300 x 125mm) is made from sheet metal to stand up to outdoor conditions. It also works as an overflow chamber in very heavy rain.
• The funnel (250 x 125mm) catches rain over a standard surface area and channels it downward, which reduces evaporation loss.
• Rain collects in a narrower inner receiving cylinder (200 x 70mm). The narrower cylinder magnifies the water depth, so small amounts of rain are easier to read.
• The glass measuring cylinder is graduated from 0 to 10mm in 0.1mm increments (100 divisions), so you can read to a fraction of a millimetre.

Technical specifications

• Outer body: 300mm high x 125mm diameter
• Funnel: 250mm long x 125mm diameter
• Inner cylinder: 200mm high x 70mm diameter
• Measuring range: 0 to 10mm
• Resolution: 0.1mm (100 divisions)
• Material: sheet metal outer body and funnel, clear graduated glass cylinder

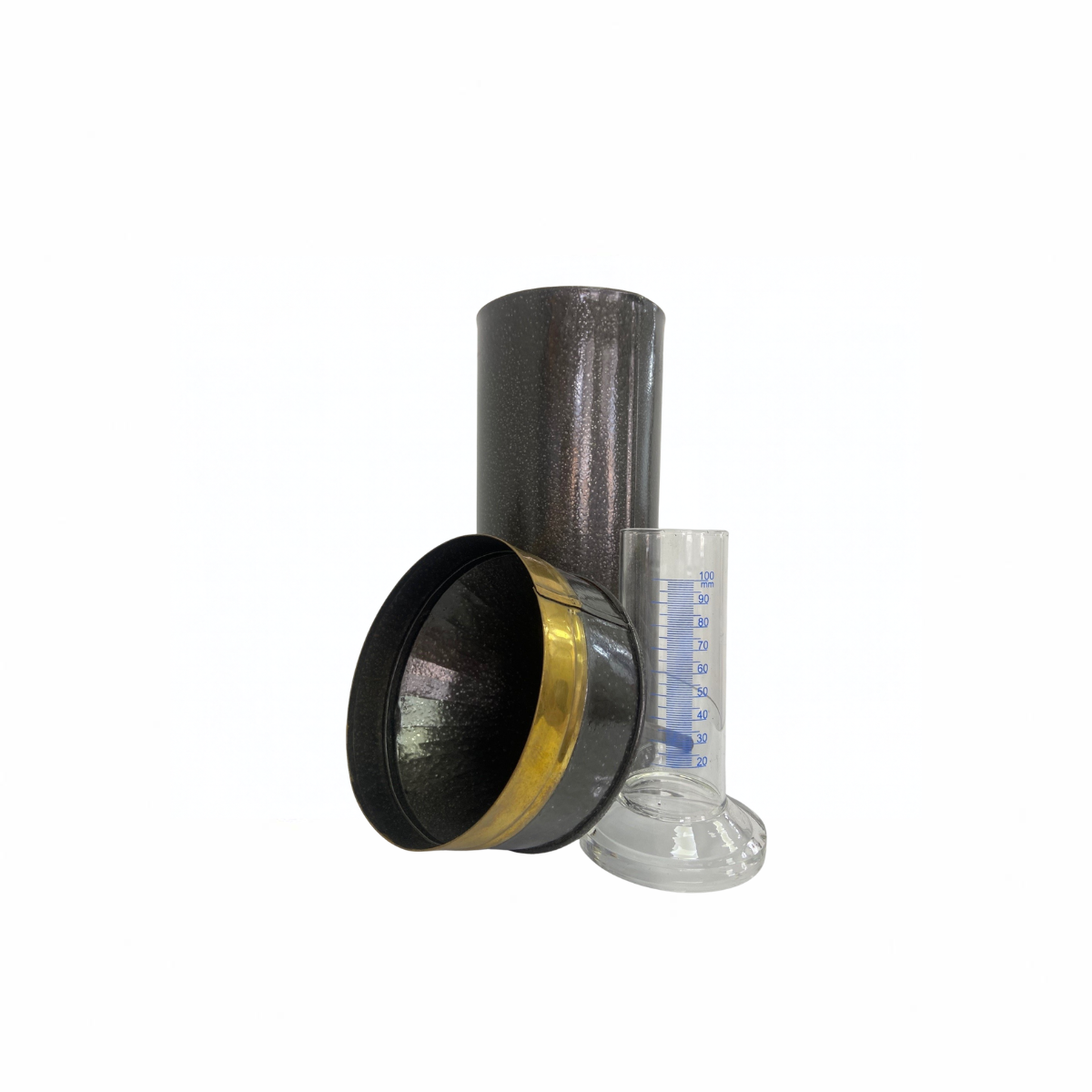

What is in the box

• 1 x outer cylinder
• 1 x sheet metal funnel
• 1 x inner receiving cylinder
